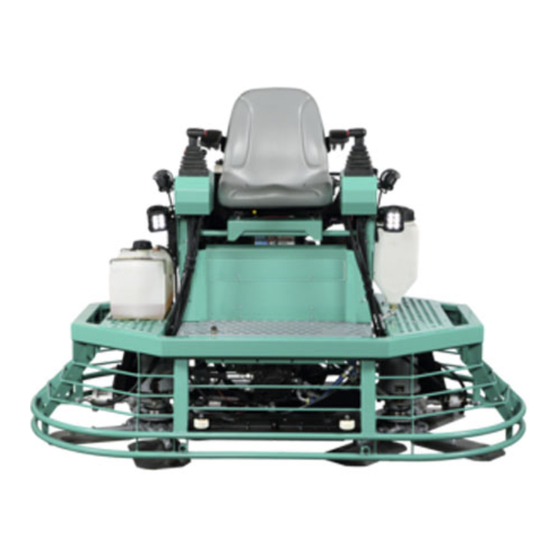

MULTIQUIP STOW STR46SPVG Operation And Parts Manual

Ride-on power trowel (b&s vanguard gasoline engine)
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATION AND PARTS MANUAL
MODEL STR46SPVG
RIDE-ON POWER TROWEL
(B&S VANGUARD GASOLINE ENGINE)
Revision #2 (07/09/07)
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
P/N 22072

Advertisement

loading
Need help?

Need help?

Do you have a question about the STOW STR46SPVG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MULTIQUIP STOW STR46SPVG

Summary of Contents for MULTIQUIP STOW STR46SPVG

  • Page 1 OPERATION AND PARTS MANUAL MODEL STR46SPVG RIDE-ON POWER TROWEL (B&S VANGUARD GASOLINE ENGINE) Revision #2 (07/09/07) THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES. P/N 22072...
  • Page 2 STR46SPVG — TABLE OF CONTENTS COMPONENT DRAWINGS STOW — STR46SPVG RIDE-ON Nameplate and Decals Assembly ...... 42-43 POWER TROWEL Pivot Assembly ..........44-45 (VANGUARD ENGINE) Steering Handles Assembly ....... 46-47 California Proposition 65 Warning ......2 Steering Assist Control Assembly ...... 48-49 Silicosis/Respiratory Warnings ........
  • Page 3 STR46SPVG — SUGGESTED SPARE PARTS 1 ....21861 .... SEAT 31 VANGUARD ENGINE 1 ....12906 .... SHAFT GEARBOX INPUT W/FAN 3 ....496018S ..SPARK PLUG 1 to 3 Units 2 ....12787 .... SPIDER, 1-1/4 DIA. MAINSHAFT 2 ....12548 .... SPRAY PUMP Qty.

  • Page 4: Nameplate And Decals Assy

    20947 STR46SPVG — NAMEPLATE AND DECALS ASSY. NAMEPLATE AND DECALS ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 42...
  • Page 5 STR46SPVG — NAMEPLATE AND DECALS ASSY. NAMEPLATE AND DECALS ASSY. PART NO. PART NAME QTY. REMARKS 11246 DECAL SET, INTERNATIONAL STDS INCLUDES ITEMS W/# DECAL, BELT DRIVE DECAL, GEAR DRIVE DECAL, CHECK OIL DECAL, HOT SURFACE DECAL, LIFT POINT DECAL, LUBRICATION DECAL, CLOCKWISE ROTATION DECAL, COUNTER-CLOCKWISE ROTATION 13118...

  • Page 6: Right Side

    STR46SPVG — PIVOT ASSY. PIVOT ASSY. RIGHT SIDE LEFT SIDE STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 44...
  • Page 7 STR46SPVG — PIVOT ASSY. PIVOT ASSY. PART NO PART NAME QTY. REMARKS 0166 A WASHER, LOCK, 3/8 MED. 10138 SCREW, SHS 1/4-20 X 1/2, N.P. 1023 SCREW, HHC 3/8-16 X 1 1/4 11248 PLATE, GEARBOX ADAPTOR 12412-1 ARM, PIVOT RIGHT 12413-1 ARM, PIVOT LEFT 1394...
  • Page 8 STR46SPVG — STEERING HANDLES ASSY. STEERING HANDLES ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 46...
  • Page 9 STR46SPVG — STEERING HANDLES ASSY. CONTROL STEERING (ASSIST) PART NO PART NAME QTY. REMARKS 0189 GRIP, HANDLE 0447 WASHER, FLAT, 1/2 SAE 0735 BEARING, CONE, TIMKEN #A6075 0735 A BEARING, CUP, TIMKEN #A6157 10176 NUT, NYLOC 1/2-13 11138 BEARING, P-BLOCK HOUSING 47MPB 11141 SPACER, ROD END 11142...
  • Page 10 STR46SPVG — STEERING ASSIST CONTROL ASSY. STEERING ASSIST CONTROL ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 48...
  • Page 11 STR46SPVG — STEERING ASSIST CONTROL ASSY. STEERING ASSIST CONTROL ASSY. PART NO PART NAME QTY. REMARKS 0131 A SCREW, HHC 1/4-20 X 3/4 0447 WASHER, FLAT, 1/2 SAE 10024 NUT, NYLOC 1/4-20 10133 NUT, NYLOC 3/8-16 10136 WASHER, FLAT,3/8 SAE 10176 NUT, NYLOC 1/2-13 1023...
  • Page 12 STR46SPVG — SINGLE PITCH HANDLE ASSY. (RIGHT AND LEFT) SINGLE PITCH HANDLE ASSY. (RIGHT AND LEFT) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 50...
  • Page 13 STR46SPVG — SINGLE PITCH HANDLE ASSY. (RIGHT AND LEFT) SINGLE PITCH HANDLE ASSY. (RIGHT AND LEFT) PART NO PART NAME QTY. REMARKS 1#%+ 4403 CRANK KNOB 2#%+ 3231 SPACER 3#%+ 2575 CRANK LEVER 4#%+ 1733 HARDENED WASHER 5#%+ 1616 SHOULDER BOLT 2737 KNOB KIT ..............
  • Page 14 STR46SPVG — ENGINE MOUNTING BRACKETS ASSY. ENGINE MOUNTING BRACKETS ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 52...
  • Page 15 STR46SPVG — ENGINE MOUNTING BRACKETS ASSY. ENGINE MOUNTING BRACKETS ASSY. PART NO PART NAME QTY. REMARKS 0202 SCREW, HHC 5/16-18 X 1 0300 B WASHER, FLAT, 5/16 SAE 21628-1 BRACKET, ENGINE MOUNT LEFT 1023 SCREW, HHC 3/8-16 X 1 1/4 10136 WASHER, FLAT, 3/8 SAE 10133...

  • Page 16: Muffler Assy

    STR46SPVG — MUFFLER ASSY. MUFFLER ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 54...
  • Page 17 STR46SPVG — MUFFLER ASSY. MUFFLER ASSY. PART NO PART NAME QTY. REMARKS 12848 EXHAUST FLANGE NUT 20908 MUFFLER 0655 SCREW, HHC 5/16-18 X 3/4 0300 B WASHER, FLAT 5/16 SAE 12847 EXHAUST GASKET STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 55...

  • Page 18: Fuel Tank Assy

    STR46SPVG — FUEL TANK ASSY. FUEL TANK ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 56...
  • Page 19 STR46SPVG — FUEL TANK ASSY. FUEL TANK ASSY. PART NO PART NAME QTY. REMARKS 4514 SCREW, HHC 1/4-20 X 5/8 0181 B WASHER, LOCK, 1/4 MED. 0948 WASHER, FLAT, 1/4 SAE 12404 TANK, FUEL, STEEL 29509 FUEL CAP/GAUGE, STEEL TANK 22067 CLAMP, STEPLESS EAR 1/4"...
  • Page 20 STR46SPVG — CLUTCH ASSY. CLUTCH ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 58...
  • Page 21 STR46SPVG — CLUTCH ASSY. CLUTCH ASSY. PART NO PART NAME QTY. REMARKS 12417 SCREW, HHC 5/8-18 X 2 4703 WASHER, LOCK, 5/8 MED. 12188 RETAINER, 1-7/16 BLM CLUTCH 11994 CLUTCH, F74H-3080 X 1-7/16” 10937 BELT, B37 GATES HP 11 11758 ADAPTOR, CLUTCH, 31HP.
  • Page 22 STR46SPVG — RADIATOR GUARD/ OVERFLOW BRACKET ASSY. RADIATOR GUARD/OVERFLOW BRACKET ASSY. NOTES: ITEMS WITHIN DASHED LINE ARE INCLUDED WITH ENGINE. REFER TO ENGINE PARTS MANUAL. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 60...
  • Page 23 STR46SPVG — RADIATOR GUARD/ OVERFLOW BRACKET ASSY. RADIATOR GUARD/OVERFLOW BRACKET ASSY. PART NO PART NAME QTY. REMARKS 60049 TRIM EDGE, 1/32 (62B3-1/32) 1.5 FT 12450 GUARD, RADIATOR (31 VAN) 11900 MOUNT, RADIATOR OVERFLOW 12464 SCREW, HHC M6-1.0 X 16mm STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 61...
  • Page 24 STR46SPVG — V-BELT GUARD ASSY. V-BELT GUARD ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 62...
  • Page 25 STR46SPVG — V-BELT GUARD ASSY. V-BELT GUARD ASSY. PART NO PART NAME QTY. REMARKS 11819 SCREW, HHC 1/4-20 X 3/4 W/WASH 1605 SCREW, HHC M8-1.25 X 25mm 0161 C WASHER, LOCK, 5/16 MED. 21036 BELT GUARD/MUFFLER SPPT W/A 21190 PLATE, BELT GUARD SIDE 11534 NUT, “U”...

  • Page 26: Engine Service Parts

    STR46SPVG — ENGINE SERVICE PARTS ENGINE SERVICE PARTS STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 64...
  • Page 27 STR46SPVG — ENGINE SERVICE PARTS ENGINE SERVICE PARTS PART NO PART NAME QTY. REMARKS 496018S SPARK PLUG 821075 FAN BELT 491056 OIL FILTER 825557 HOSE 825133 HOSE 820026 FUEL FILTER 820263 ELEMENT, AIR CLEANER STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 65...
  • Page 28 STR46SPVG — GEARBOX ASSY. (LEFT-SIDE) GEARBOX ASSY (LEFT-SIDE) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 66...
  • Page 29 STR46SPVG— GEARBOX ASSY. (LEFT-SIDE) GEARBOX ASSY (LEFT-SIDE) PART NO. PART NAME QTY. REMARKS 12906 SHAFT, GEARBOX INPUT W/FAN 5031 A SCREW, RHM 1/4-20 X1/2 0948 WASHER, FLAT, 1/4 SAE 12982 SHROUD, GB FIN COVER, LEFT 12765 GEAR BOX HD RIDER 1-1/4 SHAFT ....1..... HOUSING ONLY 0121 A FITTING, PLUG 3/8MP SQUARE HEAD 10989...
  • Page 30 STR46SPVG — GEARBOX ASSY. (RIGHT-SIDE) GEARBOX ASSY (RIGHT-SIDE) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 68...
  • Page 31 STR46SPVG — GEARBOX ASSY. (RIGHT-SIDE) GEARBOX ASSY (RIGHT-SIDE) PART NO. PART NAME QTY. REMARKS 12906 SHAFT, GEARBOX INPUT W/FAN 5031 A SCREW, RHM 1/4-20 X1/2 0948 WASHER, FLAT, 1/4 SAE 12981 SHROUD, GB FIN COVER, RIGHT 12765 GEAR BOX HD RIDER 1-1/4 SHAFT ....1 ....HOUSING ONLY 0121 A FITTING, PLUG 3/8MP SQUARE HEAD 10989...

  • Page 32: Drive Assy

    STR46SPVG — DRIVE ASSY. DRIVE ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 70...
  • Page 33 STR46SPVG — DRIVE ASSY. DRIVE ASSY. PART NO PART NAME QTY. REMARKS 0126 KEY, WOODRUFF #9 0161 C WASHER, LOCK, 5/16 MED 10133 NUT, NYLOC 3/8-16 10136 WASHER, FLAT 3/8 SAE 10138 SCREW, SHS 1/4-20 X 1/2, N.P. 10337 BEARING, P-BLOCK, FAF YAK-1 ....2 ..INCLUDES ITEMS W/@ 10514 SPACER, BEARING SHAFT 10748...
  • Page 34 STR46SPVG — 5-BLADE SPIDER ASSY. (LEFT-SIDE) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 72...
  • Page 35 STR46SPVG — 5-BLADE SPIDER ASSY. (LEFT-SIDE) 5-BLADE SPIDER ASSY. (LEFT) PART NO PART NAME QTY. REMARKS 12791 SPIDER ASM, LEFT SIDE (1-1/4) ..... 1 ... INCLUDES ITEMS W/% 2829 ARM, TROWEL EXTENDED 9005 LEVER, TROWEL ARM LEFT SIDE 0166 A WASHER, LOCK, 3/8 MED 1876 NUT, HEX JAM 3/8...
  • Page 36 STR46SPVG — 5-BLADE SPIDER ASSY. (RIGHT-SIDE) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 74...
  • Page 37 STR46SPVG — 5-BLADE SPIDER ASSY. (RIGHT-SIDE) 5-BLADE SPIDER ASSY. (LEFT) PART NO PART NAME QTY. REMARKS 12792 SPIDER ASM, LEFT SIDE (1-1/4) ..... 1 ... INCLUDES ITEMS W/% 2829 ARM, TROWEL EXTENDED 1986 LEVER, TROWEL ARM LEFT SIDE 0166 A WASHER, LOCK, 3/8 MED 1876 NUT, HEX JAM 3/8...
  • Page 38 STR46SPVG — SEAT AND FRAME ASSY. SEAT AND FRAME ASSY. (VIEW FROM OPERATOR'S SEAT) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 76...
  • Page 39 STR46SPVG — SEAT AND FRAME ASSY. SEAT AND FRAME ASSY. PART NO PART NAME QTY. REMARKS 12109-1 FRAME, SEAT W/A VAN 11660-1 PLATE, SEAT 21597 BUMPER, STEM 21507 PLUG, PANEL 11/16 DIA. 5283 NUT, NYLOC 5/16-18 0300 B WASHER, FLAT, 5/16 SAE 19468 GROMMET, MINOR Z-4004 21936...
  • Page 40 STR46SPVG — FRAME AND COMPONENTS ASSY. FRAME AND COMPONENTS STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 78...
  • Page 41 STR46SPVG — FRAME AND COMPONENTS ASSY. FRAME AND COMPONENTS PART NO PART NAME QTY. REMARKS 12345-1 FRAME 4014 SCREW, 2-3/16 P-K TYPE U DRIVE 5065B SCREW, RHM 10-32X1/2 2203 WASHER, FLAT, #10 8126 CLAMP, HOSE SUPPORT 1/2” SMALL 4514 SCREW, HHC 1/4-20X5/8 0948 WASHER, FLAT, 1/4 SAE 2429...
  • Page 42 STR46SPVG — FOOT PEDALS ASSY. FOOT PEDALS ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 80...
  • Page 43 STR46SPVG — FOOT PEDALS ASSY. FOOT PEDALS ASSY. PART NO PART NAME QTY. REMARKS 0300B WASHER, FLAT, 5/16 SAE 10136 WASHER, FLAT, 3/8 SAE 2086 PEDAL, ACCELERATOR 2772 PIN, ACC MOUNT 5283 NUT, NYLOC 5/16-18 6014B PIN, COTTER 3/32X1 22035-1 FOOT RISER W/A RIDER LEFT SIDE 22037-1 FOOT RISER W/A, RIDER ACCELERATOR SIDE...
  • Page 44 STR46SPVG — THROTTLE ASSY. THROTTLE FOOT PEDAL ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 82...
  • Page 45 STR46SPVG — THROTTLE ASSY. THROTTLE FOOT PEDAL ASSY. PART NO PART NAME QTY. REMARKS 0937 NUT, HEX 10-32 2153 ROD END, 10-32 FEMALE RH 2203 WASHER, FLAT, #10 2203 WASHER, FLAT, #10 3513 SCREW, HHF 10-32 X 1 11710 SPACER, ENGINE THROTTLE 11771 BRACKET, ENGINE THROTTLE CABLE 0161 C...

  • Page 46: Battery Assy

    STR46SPVG — BATTERY ASSY. BATTERY ASSY. CONNECT TO ENGINE (CHASSIS GROUND) BLACK CABLE STARTER (NEGATIVE) NEG (-) POS (+) RED CABLE (POSITIVE) STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 84...
  • Page 47 STR46SPVG — BATTERY ASSY. BATTERY ASSY. PART NO PART NAME QTY. REMARKS 0730 SCREW, HHC 1/4-20X1 0948 WASHER, FLAT, 1/4SAE 0949 NUT, HEX FINISH 1/4-20 10024 NUT, NYLOC 1/4-20 10031 WASHER, EXT SHKP, 1/4 10313 CABLE, NEG BATTERY BLACK 20” 19303 CABLE, POS BATTERY RED 48”...

  • Page 48: Front Panel Assy

    STR46SPVG — CONTROL PANEL ASSY. FRONT PANEL ASSY. STR46SPVG • RIDE-ON POWER TROWEL — OPERATION AND PARTS MANUAL — REV. #2 (07/09/07) — PAGE 86...
  • Page 49 STR46SPVG — CONTROL PANEL ASSY. FRONT PANEL ASSY. PART NO PART NAME QTY. REMARKS 0202 SCREW, HHC 5/16-18 X 1 0300B WASHER, FLAT, 5/16 SAE 10019 NUT, NYLOC 10-32 10958 SWITCH, IGNITION VAN W/KEYS 11098 CIRCUIT BREAKER, 40A, 12V 11534 NUT, “U”...
