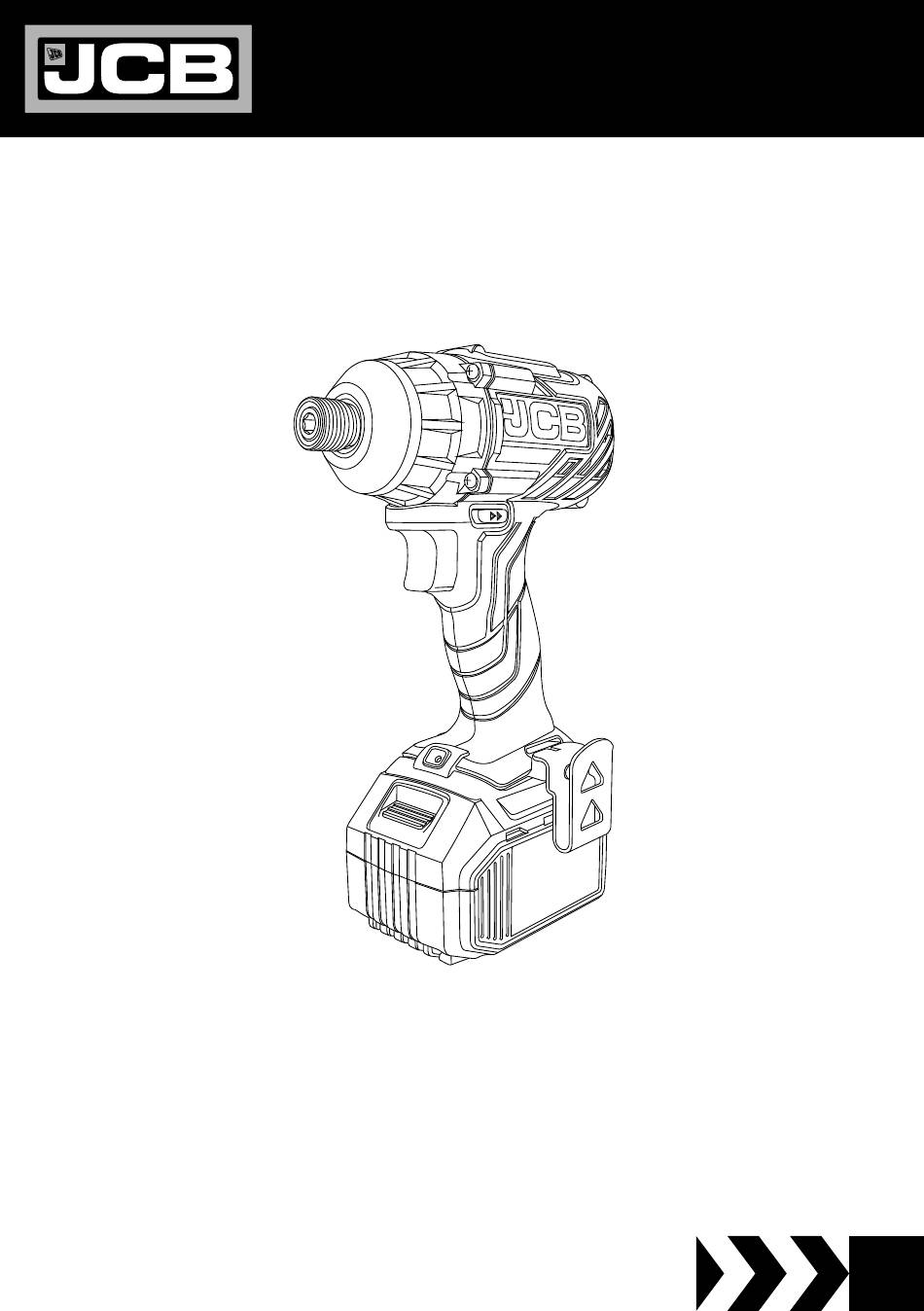

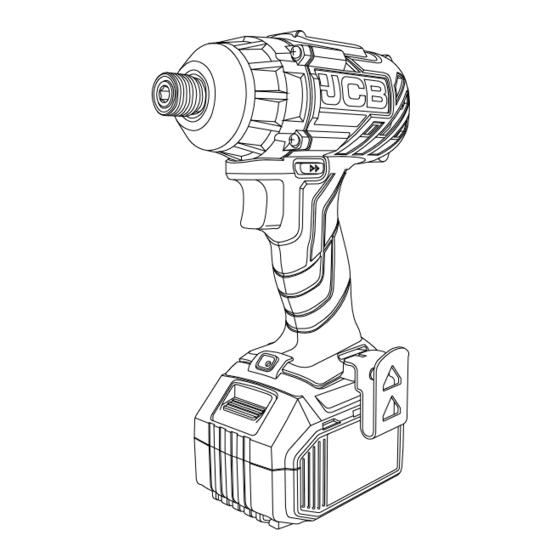

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-18BLID Original Instructions IM-18BLID-EN Iss: 06/2021...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-18BLID Designation of the tool (18 - 18Vdc, BL - Brushless, ID - Impact Driver) 21-18BLID...
-
Page 3: Table Of Contents
OPERATING INSTRUCTIONS Intended Use Battery Replacing Bits ON/OFF Trigger Chuck Direction Selector Switch AUTOMATIC LED LIGHT and Overload Protection Repairs and Servicing, Maintenance, Transport and Storage WARRANTY STATEMENT Terms and Conditions EU/UK DECLARATION OF CONFORMITY 21-18BLID Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-18BLID Instruction & User Manual... -
Page 5: Power Tool Use And Care
Use of any other accessories, or storing power tools. Such battery packs may create a risk of injury and fire. preventive safety measures reduce the risk of starting the power tool accidentally. 21-18BLID Instruction & User Manual... -
Page 6: Service
This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. 21-18BLID Instruction & User Manual... -
Page 7: Tool Specific Safety Warnings
Bits can bend causing breakage used with this power tool are genuine or loss of control, resulting in personal good quality JCB branded items, or similar injury. equivalent quality. The use of low-grade or modified items may result in failure and possible operator injury. -
Page 8: Charger Safety
CHARGER SAFETY JCB chargers are designed to WARNING! operate on standard household supply voltages. Check the rating Read all safety warnings, instructions plate of the charger matches your and specifications provided with the local supply voltage. (Note: the dual charger. Failure to follow all instructions... -
Page 9: Component List
- refer to page 10 for further information CHUCK DIRECTION SELECTOR BATTERY PACK* - refer to page 10 for further SWITCH information. AUTOMATIC LED LIGHT BATTERY TEST BUTTON AND CHARGE INDICATOR* INSULATED GRIP *If applicable 21-18BLID Instruction & User Manual... -
Page 10: Tool Technical Data
CHARGER TECHNICAL DATA Charger Code Input Data Output Data 21-18VFC AC 220-240V, 50-60Hz, 70W 14.4 -18V d.c. 2.4A 21-18VSFC AC 220-240V, 50-60Hz, 105W 14.4 -18V d.c. 4.0A 21-18VDC AC 100-240V, 50-60Hz, 200W 20.5V d.c. 2 x 3.5A 21-18BLID Instruction & User Manual... -
Page 11: Noise Information
(such as assessment of exposure. the times when the tool is switched off or running idle). 21-18BLID Instruction & User Manual... -
Page 12: Vibration Information
Avoid using tools in temperatures of 10 ° exposure. or less. Plan your work schedule to spread any high THIS TOOL MAY CAUSE vibration tool use across a number of days. HAND-ARM VIBRATION SYNDROME (HAVS) IF USAGE IS NOT ADEQUATELY MANAGED 21-18BLID Instruction & User Manual... -
Page 13: Operating Instructions
Green Battery Charge Status Make sure the ON/OFF Trigger (2) is not operated when inserting or removing the Charger is connected to battery. Use only JCB batteries: 21-20LI, mains power 21-30LI, 21-40LI, 21-50LI. Connected battery is charging Do not use excessive force when... -
Page 14: Replacing Bits
To tighten fixings: Before engaging the ON/OFF Variable Speed Trigger (2), check that the hex bit tool holder Set the rotation selector switch to clockwise rotation. is correctly fitted in the bit holder chuck (1A). 21-18BLID Instruction & User Manual... -
Page 15: Automatic Led Light And Overload Protection
Never try to repair the tool yourself. power supply. Take to an authorised service centre. 21-18BLID Instruction & User Manual... - Page 16 Power tool lubrication JCB power tools are properly lubricated in the factory and are ready for use. Repairs and servicing Power tools should be subject to periodic preventative maintenance to ensure continued safe and reliable operation. If the power tool requires servicing or repair (eg loss of power) do not continue to operate the power tool.
- Page 17 21-18BLID Instruction & User Manual...
-
Page 18: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. -
Page 19: Terms And Conditions
Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes. -
Page 20: Eu/Uk Declaration Of Conformity
JCB-18BLID-B, 21-18BLID-B DECLARATION: EU Product Code No. JCB-18BLID-B-E Factory Reference No. BLMI-232 Name: Yellow and Black Tools Ltd. (T/A: JCB Tools) IDENTIFICATION DETAILS OF Unit 55 Romsey Industrial Estate, Greatbridge Road Address: MANUFACTURER: Romsey, Hampshire SO51 0HR Country: Authorised Representative Service...
