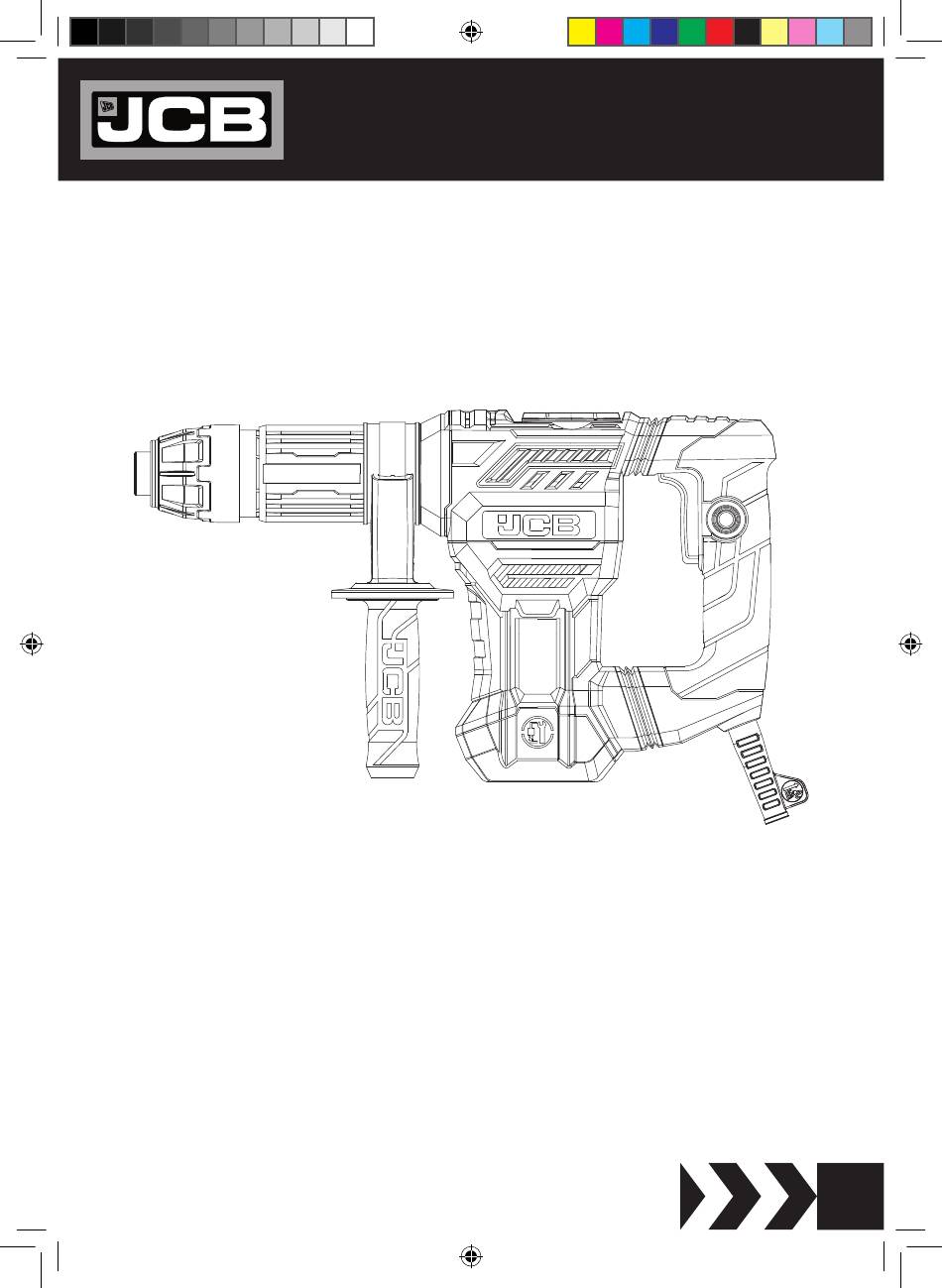

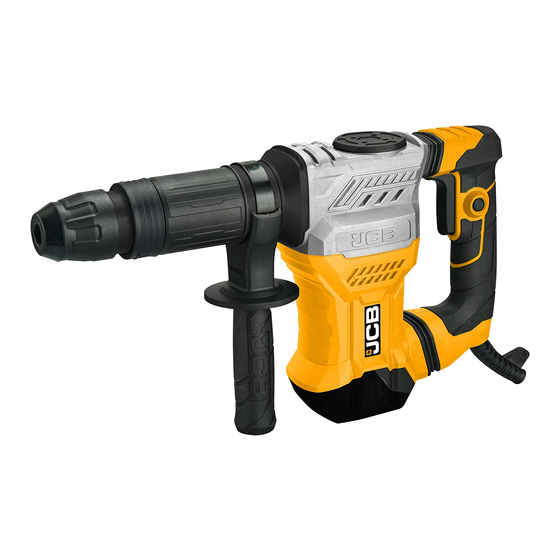

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-DH1300 Original Instructions IM-DM1300-EN Iss: 06/2021 2854 21-DH1300 Demolition Hammer Drill Manual.indd 1 2854 21-DH1300 Demolition Hammer Drill Manual.indd 1 08/07/2021 15:02 08/07/2021 15:02...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-DH1300 Designation of the tool (DH - Demolition Hammer, 1300 - 1300W power) 21-DH1300 Instruction &...
-
Page 3: Table Of Contents
On/Off Trigger Constant Speed Maintenance Transport and Storage WARRANTY STATEMENT Terms and Conditions 14-15 EU/UK DECLARATION OF CONFORMITY 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 3 2854 21-DH1300 Demolition Hammer Drill Manual.indd 3 08/07/2021 15:02 08/07/2021 15:02... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 4 2854 21-DH1300 Demolition Hammer Drill Manual.indd 4 08/07/2021 15:02 08/07/2021 15:02... -
Page 5: Power Tool Use And Care
Such preventive safety measures reduce the risk of starting the power tool accidentally. 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 5 2854 21-DH1300 Demolition Hammer Drill Manual.indd 5 08/07/2021 15:02 08/07/2021 15:02... -
Page 6: Tool Specific Safety Warnings
Fragments gloves to provide extra cushioning. of metal or material chips could dislodge and cause injury. 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 6 2854 21-DH1300 Demolition Hammer Drill Manual.indd 6 08/07/2021 15:02 08/07/2021 15:02... -
Page 7: Electrical Safety
10% lower operating voltage (or incorrect mains Hz frequency) can cause loss of power and overheating. All JCB tools are factory tested. If this tool does not operate check the power supply. Make sure your power supply agrees with the voltage specified on the product rating label. -
Page 8: Component List
1b. CHUCK BIT FASTENING & RELEASE SLEEVE CHISEL POSITION LOCK SLEEVE AUXILIARY HANDLE ANTI-VIBRATION CONTROL DEVICE ON/OFF TRIGGER ‘LOCK-ON’ BUTTON SOFT GRIP HANDLE 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 8 2854 21-DH1300 Demolition Hammer Drill Manual.indd 8 08/07/2021 15:02 08/07/2021 15:02... -
Page 9: Technical Data
21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 9 2854 21-DH1300 Demolition Hammer Drill Manual.indd 9 08/07/2021 15:02 08/07/2021 15:02... -
Page 10: Vibration Information
THIS TOOL MAY CAUSE HAND-ARM vibration tool use across a number of days. VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 10 2854 21-DH1300 Demolition Hammer Drill Manual.indd 10 08/07/2021 15:02 08/07/2021 15:02... -
Page 11: Operating Instructions
Breaking into a water pipe will cause property damage or may cause an electric shock. 21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 11 2854 21-DH1300 Demolition Hammer Drill Manual.indd 11 08/07/2021 15:02 08/07/2021 15:02... -
Page 12: On/Off Trigger
21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 12 2854 21-DH1300 Demolition Hammer Drill Manual.indd 12 08/07/2021 15:02 08/07/2021 15:02... -
Page 13: Transport And Storage
21-DH1300 Instruction & User Manual 2854 21-DH1300 Demolition Hammer Drill Manual.indd 13 2854 21-DH1300 Demolition Hammer Drill Manual.indd 13 08/07/2021 15:02 08/07/2021 15:02... -
Page 14: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. - Page 15 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes.
-
Page 16: Eu/Uk Declaration Of Conformity
UK Product Code No. JCB-DH1300, 21-DH1300 DECLARATION: EU Product Code No. JCB-DH1300-E Factory Reference No. Z1G-DG-0845HM Yellow and Black Tools Ltd. (T/A: JCB Tools) Name: IDENTIFICATION DETAILS OF Unit 55 Romsey Industrial Estate, Greatbridge Road Address: MANUFACTURER: Romsey, Hampshire SO51 0HR...
