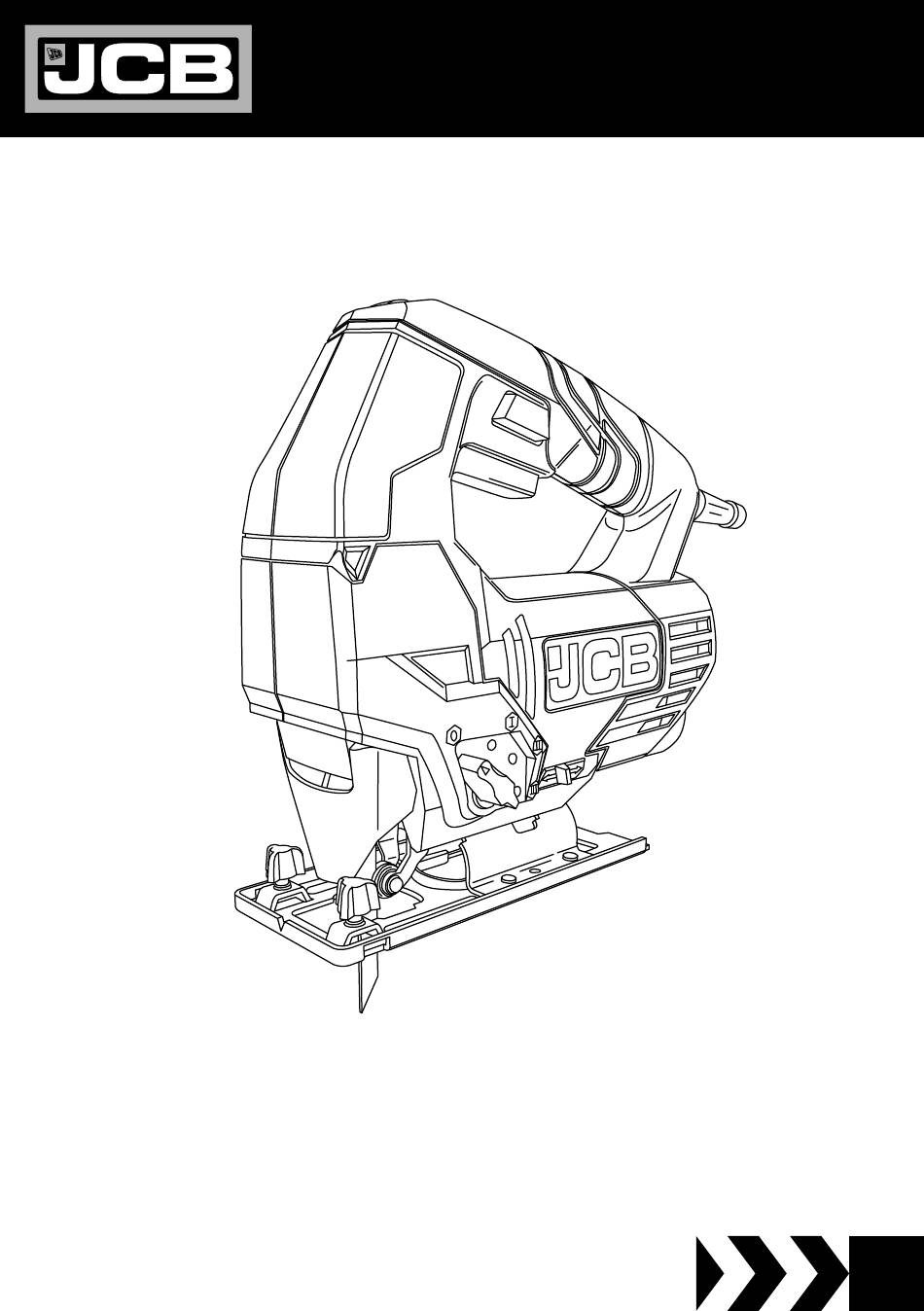

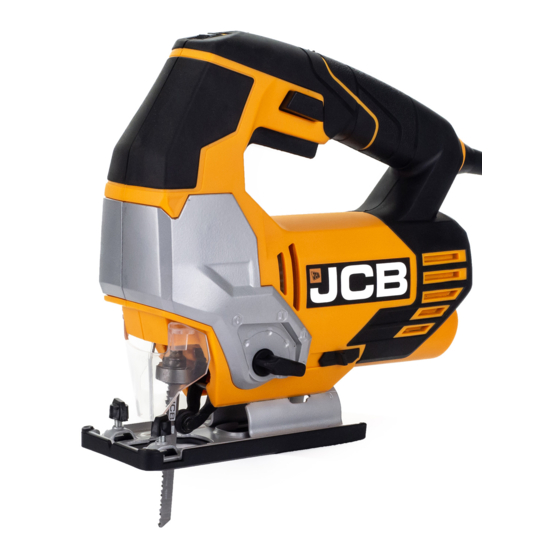

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-JS800 Original Instructions IM-JS800-EN Iss: 07/2021...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-JS800 Designation of the tool JS: Jig Saw, 800: 800W Input Power. 21-JS800 Instruction & User Manual...
-
Page 3: Table Of Contents
OPERATING INSTRUCTIONS Intended Use Inserting Saw Blade Power Switch Startup Stroke Rate Selection Mitre Cutting Adjusting the Pendulum Stroke Dust Removal Dust Collection Parallel Stop Maintenance Transport and Storage WARRANTY STATEMENT EU/UK DECLARATION OF CONFORMITY 21-JS800 Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-JS800 Instruction & User Manual... -
Page 5: Power Tool Use And Care
Such preventive safety measures reduce the risk of starting the power tool accidentally. 21-JS800 Instruction & User Manual... -
Page 6: Tool Specific Safety Warnings
Kick back could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. 21-JS800 Instruction & User Manual... - Page 7 Use extra caution when making a “plunge cut” into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback. 21-JS800 Instruction & User Manual...
-
Page 8: Component List
SWITCH SAFETY INTERLOCK FASTENING SCREWS FOR THE PARALLEL STOP ON/OFF SWITCH BLADE GUARD HEX KEY (NOT SHOWN) PARALLEL STOP DUST NOZZLE SWITCH FOR DUST REMOVAL BASE PLATE LOCKING LEVER BASE PLATE PENDULUM STROKE ADJUSTING LEVER 21-JS800 Instruction & User Manual... -
Page 9: Technical Data
Steel 10 mm Product Weight 2.4 kg NOISE INFORMATION A-Weighted Sound Pressure (LpA) 89.89 dB(A) A-Weighted Sound Power (LwA) 100.89 dB(A) & K 3.0 dB(A) Wear ear protection when sound pressure is over 80 dB(A) 21-JS800 Instruction & User Manual... -
Page 10: Vibration Information
Plan your work schedule to spread any high vibration tool use across a number of days. THIS TOOL MAY CAUSE HAND-ARM VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. 21-JS800 Instruction & User Manual... -
Page 11: Operating Instructions
Lower the transparent blade cover to its before removing it from the cut. initial position. WARNING! After a cut the saw blade can be very hot. Be careful when removing the saw blade. Wear appropriate safety gloves. 21-JS800 Instruction & User Manual... -
Page 12: Stroke Rate Selection
Tilt the saw shoe to the required position. Lever Position 1 - Small Pendulum Close the base plate locking lever to lock the base plate into position. Material: For cutting soft steel, aluminium and hardwood. 21-JS800 Instruction & User Manual... -
Page 13: Dust Removal
Slide the nozzle all the way into the opening corrosive, abrasive additives. This risks until the snap-in nose visibly and audibly damaging the surfaces of the tool. locks into place. 21-JS800 Instruction & User Manual... -
Page 14: Transport And Storage
Always carry the tool using the purpose- designed handle. Ensure that the tool is not at risk of tipping over or exposed to excessive vibration and shocks during transport, especially if the tool will be transported by car or other vehicle. 21-JS800 Instruction & User Manual... - Page 15 21-JS800 Instruction & User Manual...
-
Page 16: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. - Page 17 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes.
-
Page 18: Eu/Uk Declaration Of Conformity
UK Product Code No. JCB-JS800, 21-JS800 DECLARATION: EU Product Code No. JCB-JS800-E JS027A Factory Reference No. Yellow and Black Tools Ltd. (T/A: JCB Tools) Name: IDENTIFICATION DETAILS OF Unit 55 Romsey Industrial Estate, Greatbridge Road Address: MANUFACTURER: Romsey, Hampshire SO51 0HR...
