Summary of Contents for jcb 21-CS1500

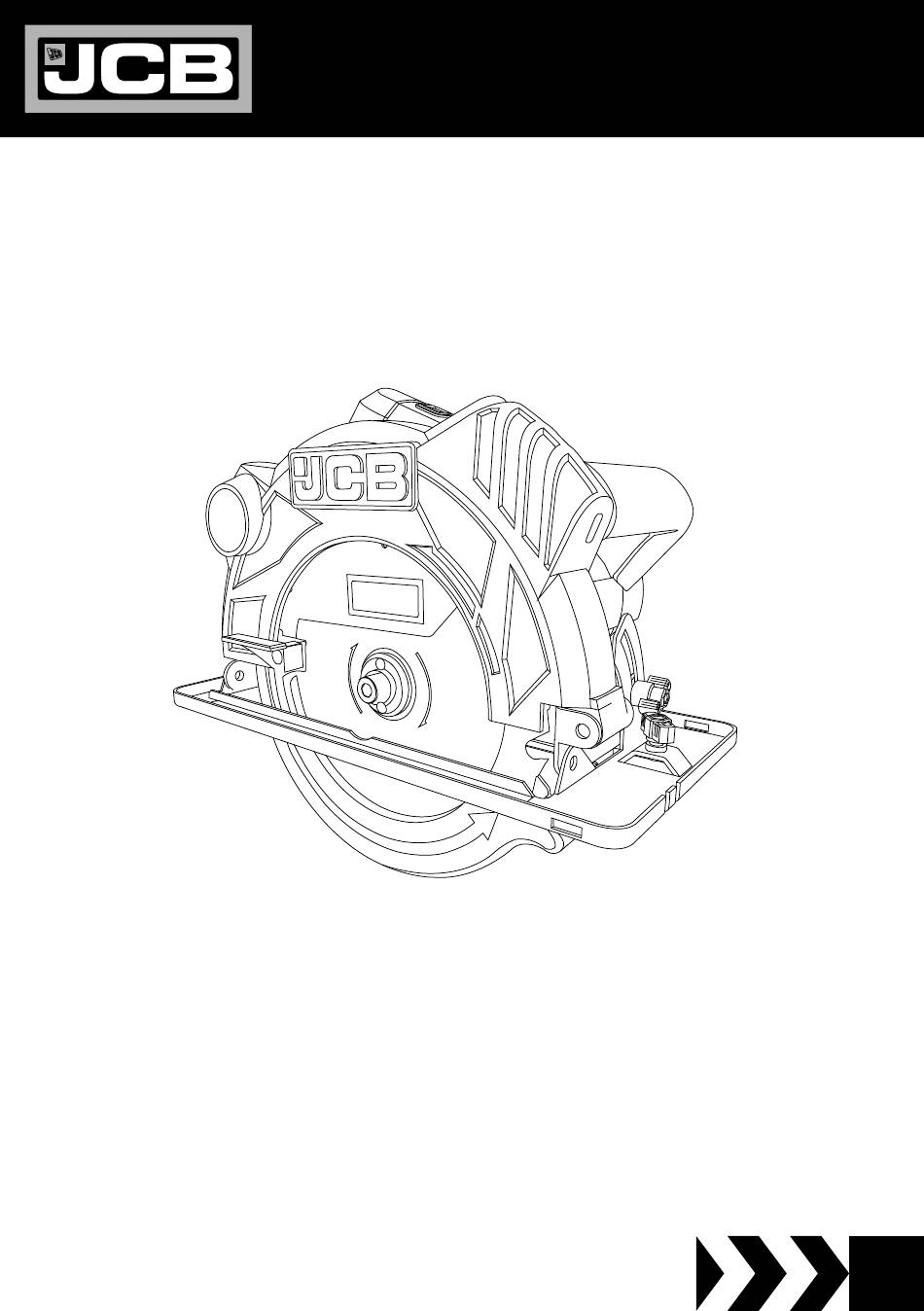

- Page 1 POWER TOOL INSTRUCTION & USER MANUAL 21-CS1500 Original Instructions IM-CS1500-EN Iss: 07/2021...
- Page 2 The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. 21-CS1500 Designation of the tool CS: Circular Saw, 1500: 1500W Input Power. 21-CS1500 Instruction & User Manual...
-
Page 3: Table Of Contents
OPERATING INSTRUCTIONS Intended Use Circular Saw Assembly Depth Adjustment Angle Adjustment Power Switch Parallel Cut Adjustment Laser Line Generator General Cutting Pocket Cutting Cutting Large Sheets Maintenance WARRANTY STATEMENT Terms and Conditions EU/UK DECLARATION OF CONFORMITY 21-CS1500 Instruction & User Manual... -
Page 4: General Power Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. 21-CS1500 Instruction & User Manual... -
Page 5: Power Tool Use And Care
Such preventive safety measures reduce the risk of starting the power tool accidentally. 21-CS1500 Instruction & User Manual... -
Page 6: Tool Specific Safety Warnings
When the blade is pinched or jammed exposure, blade binding, or loss of control. tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator 21-CS1500 Instruction & User Manual... -
Page 7: Lower Guard Function
If a saw blade binds, it may walk up or kickback from the workpiece as the saw is restarted. 21-CS1500 Instruction & User Manual... - Page 8 An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. 21-CS1500 Instruction & User Manual...
- Page 9 21-CS1500 Instruction & User Manual...
-
Page 10: Component List
(NOTE: ON/OFF TRIGGER LOCATED UNDER HAND GRIP) LASER ON/OFF SWITCH (BELOW INDICATOR) AUXILLARY HANDLE BEVEL SCALE PARALLEL GUIDE LOCKING SCREW BEVEL LOCK BUTTON FIXED GUARD SAW BLADE LOWER BLADE GUARD LOWER GUARD LEVER BASE PLATE DUST PORT 21-CS1500 Instruction & User Manual... -
Page 11: Technical Data
Depth 45° 43mm Product Weight 4.6 kg NOISE INFORMATION A-Weighted Sound Pressure (LpA) 99 dB(A) A-Weighted Sound Power (LwA) 110 dB(A) & K 3 dB(A) Wear ear protection when sound pressure is over 80 dB(A) 21-CS1500 Instruction & User Manual... -
Page 12: Vibration Information
Plan your work schedule to spread any high vibration tool use across a number of days. THIS TOOL MAY CAUSE HAND-ARM VIBRATION SYNDROME IF USAGE IS NOT ADEQUATELY MANAGED. 21-CS1500 Instruction & User Manual... -
Page 13: Operating Instructions
ON/OFF switch arrow on the lower guard. trigger. Reinstall the outer flange and tighten the When you release the switch trigger the blade clamp bolt. tool turns off. 21-CS1500 Instruction & User Manual... -
Page 14: Parallel Cut Adjustment
Switch off the laser beam when the cut is being cut, proceed cutting in a forward completed. direction to the end of the cut. Allow the blade to come to a full stop before removing it from the cut. 21-CS1500 Instruction & User Manual... -
Page 15: Cutting Large Sheets
Ensure that the tool is not at risk of tipping mount of dust and dirt after each use. over or exposed to vibration and shocks during transport, especially if the tool will be transported by car or other vehicle. 21-CS1500 Instruction & User Manual... -
Page 16: Warranty Statement
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only for JCB Tools products purchased within the UK bearing the CE and UKCA mark and a visible serial number. - Page 17 Repairs have not been undertaken using non-genuine spare parts. JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by these terms and conditions. JCB Tools 3 Year Warranty excludes the following (where applicable): Components normally subject to wear such as carbon brushes.
-
Page 18: Eu/Uk Declaration Of Conformity
JCB-CS1500, 21-CS1500 UK Product Code No. DECLARATION: EU Product Code No. JCB-CS1500-E Factory Reference No. 76337 Yellow and Black Tools Ltd. (T/A: JCB Tools) Name: IDENTIFICATION DETAILS OF Address: Unit 55 Romsey Industrial Estate, Greatbridge Road MANUFACTURER: Romsey, Hampshire SO51 0HR...
