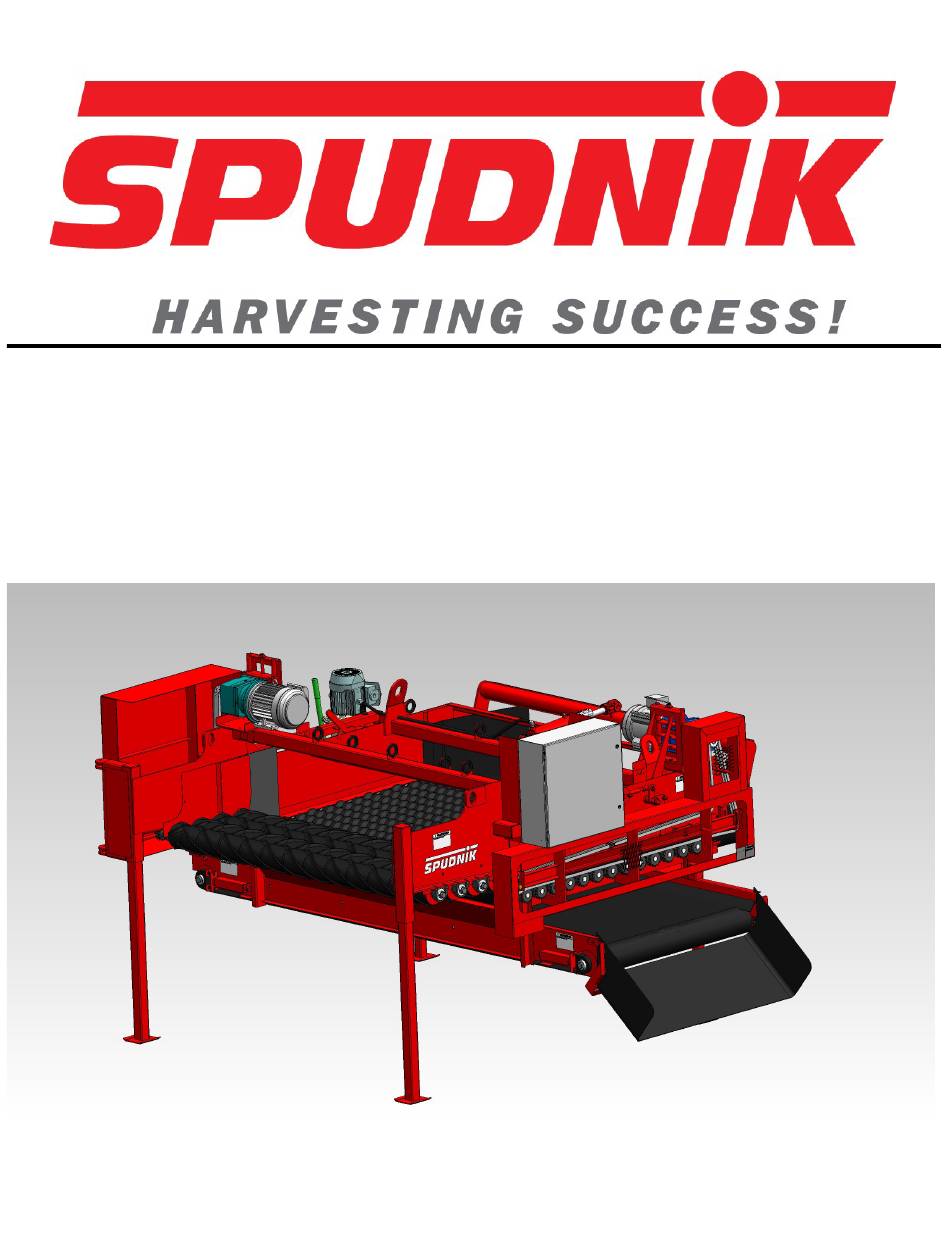

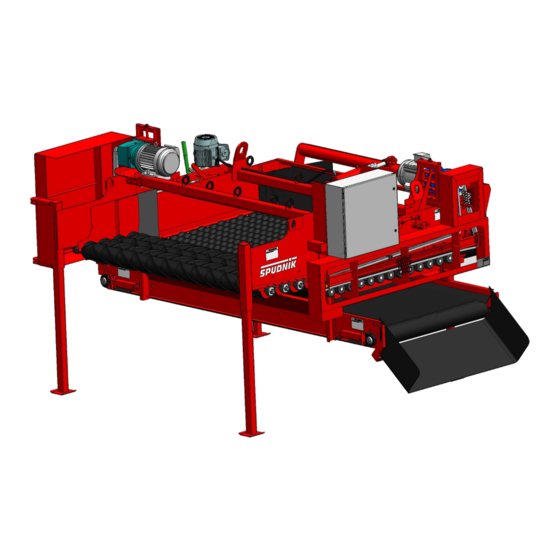

- Page 1 OWNER / OPERATOR & PARTS MANUAL 930 ELIMINATOR CUSTOM ELIMINATOR SERIAL # 930-55-184 Revision: 10/7/21...
- Page 3 Fax (701) 352-9610 Fax (207) 764-4674 Spudnik®, SimpleSep™, MultiSep™, Star Table™, AirSep®, Terra Float™, are trademarks of Spudnik Equipment Com- pany LLC. John Deere, Case, IH, Case-IH, CAT, Challenger, are trademarks of their respective trademark owners. Copyright © 2017 by Spudnik Equipment Company LLC. All rights reserved.
-
Page 4: Table Of Contents
Storage of the machine ....................... 9 5. Parts Manual FA4285-PJ1079 - STANDARD PARTS 930 ..................10 FA4297-PJ1079 - 930 84" ELIM 48" CROSS NO END CROSS ............11 131759 - BAR,SLIDE,ELIM RH 2"x62" W/UHMW ................12 133126 - ENDSHEAR,84",ELIM,W/O TBL,NO XCONV CMPLT ............ - Page 5 930 Elimina to r Owner/ Oper at or & Par t s Man ual This page intentionally left blank SERIAL# 930-55-184 Revision: 10/7/2021...
-
Page 6: Introduction
We strive to put the best quality and workmanship into each of our machines, and hope as you use your SPUDNIK 930 ELIMINATOR, that you will find this to be true. This manual has been prepared to aid you in the safe operation and service of your machine. -
Page 7: Foreword
Owner/ Oper at or & Par t s Man ual Foreword This manual is intended to familiarize the user with the SPUDNIK 930 ELIMINATOR and its designated use. This manual contains important information on how to operate the machine safely, properly, and efficiently. Observing the instructions in this manual help to avoid dangers, reduce repair costs and down-times, and to increase the reliability and service life of the machine. -
Page 8: Warranty
The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limitations of this warranty in any way. -
Page 9: General
Particular attention should be paid to the section entitled “Safety”. And instructions which are not understood must be clarified before initial operation of the machine. In such cases, please consult your SPUDNIK agent or contact us directly. -
Page 10: Product Characteristics
SPUDNIK representative. Original spare parts and accessories approved by SPUDNIK are a contribution to safety and overall performance of the machine. The use of other parts may invalidate the liability of SPUDNIK for any consequences arising from such use. Please refer to the ‘Limited Warranty Policy for New Spudnik Machinery’ section and ‘General’... -
Page 11: Safety
CAUTION: Indicates that unsafe practices, which could SPUDNIK shall not be liable for any damage to agricultural result in personal injury if proper precautions are not taken. produce and other items, which occur as a result of operating and adjustment errors or others incorrect usage. -
Page 12: Identification Of Important Instruction
16. Replace all worn or missing bolts with SAE Grade 5 or better unless specifically stated otherwise. SPUDNIK shall not be liable for any damage caused by the use of parts, accessories, and ancillary equipment not Non-observance of the safety and accident prevention supplied and/or approved by SPUDNIK. -
Page 13: Operating Safety Practices
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-1 Safety 1.6 Operating Safety Practices 1.7 Electrical System and Electronics Empty machinery of product before moving. This will lessen Use only original fuses with the specified current rating. -
Page 14: Maintenance And Inspection Guidelines
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-1 Safety 1.8 Maintenance and Inspection Guidelines To prevent accidents, all relevant rules and regulations giving instructions must be within sight of the crane concerning safe and competent working must be observed. -
Page 15: Acknowledgement Signature
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-1 Safety 1.9 Acknowledgement Signature Anyone who will operate and/or maintain the equipment must read and clearly understand ALL Safety, Operating and Maintenance information presented in this manual. Do not operate or allow anyone else to operate this equipment until such information has been reviewed. -
Page 16: Machine Overview
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-2 Machine Overview 2.1. Safety and Information Labels Labels are placed on the machine to communicate important user safety and operational information. To ensure continued personnel safety and proper machine operation, replace any label which is damaged or becomes illegible. -
Page 17: Label Identification And Part Number
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-2 Machine Overview 2.2. Label Identification and Part Number Item # Part # Description 300101 LABEL,WARNING,POWER,DRIVEN,MACHINERY,CAN 300210 LABEL,HYDRAULIC,FILTER CHANGE EVERY200HR 301209 STICKER,SPUDNIK,LARGE WHITE,INCISED 2018 300258 LABEL,PATENT,MULTI-SEP 2.3. -
Page 18: Maintenance
Oil in gearboxes must be checked every 100 hours of operation. Level should be to parting line of gearbox. Use 80W90 gear oil (Spudnik p/n: 991214) Oil should be changed when it becomes dirty and/or contaminated. 3.3 Drive Chains ... -
Page 19: Cleaning And Storage
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-4 Cleaning and Storage 4.1 Cleaning after every operation 4.3 Storage of the machine In order to keep wear down to a minimum, follow the instructions ... -
Page 20: Parts Manual
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 21: Fa4297-Pj1079 - 930 84" Elim 48" Cross No End Cross
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 22: 131759 - Bar,Slide,Elim Rh 2"X62" W/Uhmw
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 23: 133126 - Endshear,84",Elim,W/O Tbl,No Xconv Cmplt
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 24: Fb5352-Pj1079 - 990 84" Trans Tbl Elev / M-Sep 4Rl Seg
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 25: 822341 - Shft,M-Sep,Spiral Seg,84",Sprk Lh Drv,Lh
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 26: 822242 - Shft,M-Sep,Spiral Seg,84",Sprk Lh Drv,Rh
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 27: Fa4315-Pj1079 - 84" 2-1/2" Spring Elim Roll Dirt 13 Rl
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 28: 822133 - Shft,Elim,84",Elm/Elm Hf F/Brg D/S Cmplt
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 29: 821863 - Shft,Elim,84",Elm/Elm Rl Ful D/Spr Cmplt
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 30: 821861 - Shft,Elim,84",Elm/Elm Rl Hlf D/Spr Cmplt
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 31: Fa4334 925 84" Roll Cylinder Hyd Adjust **Std
930 Elimina to r Owner/ Oper at or & Par t s Man ual Section-5 Parts Manual SERIAL# 930-55-184 Revision: 10/7/2021... -
Page 32: Miscellaneous Guidelines And Specifications
The torque charts below are for reference purposes only and its use by anyone is voluntary unless otherwise noted in this manual. Reliance on the torque charts below are at the sole risk of that person. Spudnik is not responsible for any loss claim or damage arising from following the reference torque specifications in these torque charts. - Page 33 930 Elimina to r Owner/ Oper at or & Par t s Man ual NOTES SERIAL# 930-55-184 Revision: 10/7/2021...
