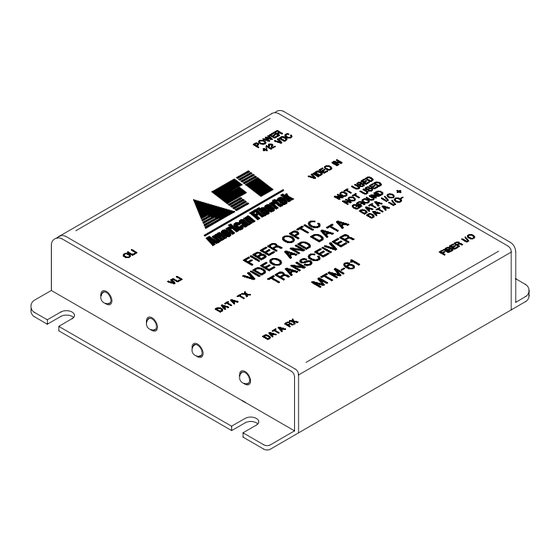

- Page 1 Instruction Manual MTM-61 Video Transmitter With Bi-directional Sensornet Data © Copyright 2005, American Fibertek, Inc. 0628JD...
- Page 2 Sensornet output signal using an 850 nm wavelength detector. The M61 Series product is designed to operate over an optical loss budget range of 0 to 12 dB. The MTM-61 operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance specifications.
- Page 3 These switches must not be changed. The drawing below indicates their original positions. To open the MTM-61, remove the screw on the bottom of the module. Also remove two screws holding the end panel to the chassis on the side with the video and data connections. Slide PCB assembly out...
- Page 4 MTM-61 STATUS INDICATORS The MTM-61 provides the following LED status indicators to aid in installation and troubleshooting: A bi-color LED indicator is provided for the video input to the MTM-61. DC power and video status associated with this LED is summarized below.
