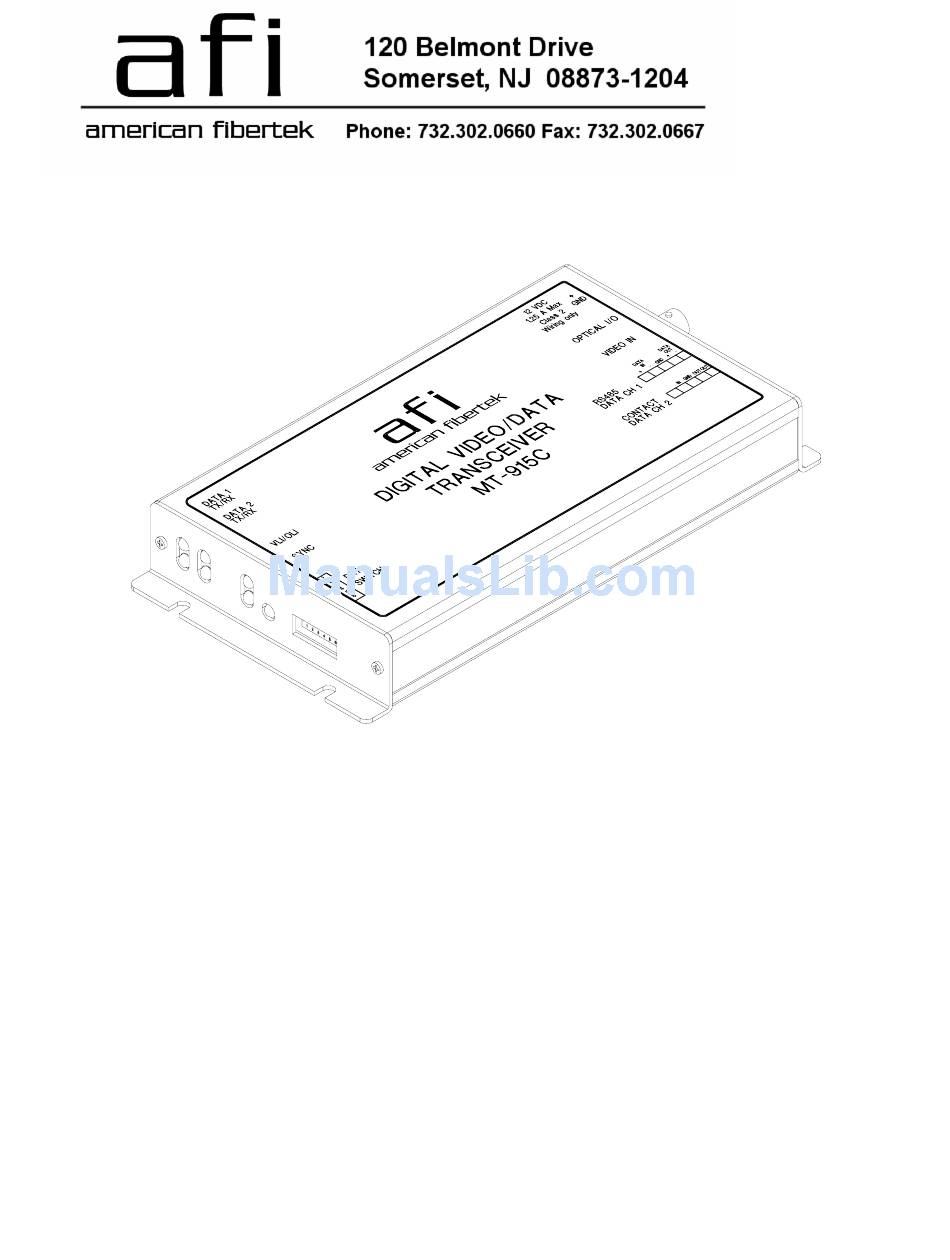

Page 1: Instruction Manual
Instruction Manual MT-915C Video Transmitter With Bi-directional Multi-Protocol Data And Bi-directional Contact Closure © Copyright 2012, American Fibertek, Inc. 11-01-12BLB... - Page 2 1550 nm wavelength. The 915 Series product is designed to operate over an optical loss budget range of 0 to 12 dB when used on 62.5 um multimode fiber. The MT-915C will also operate on 50 um multimode fiber at a reduced loss budget range. Refer to the product specification sheet for additional performance data.
- Page 3 INSTALLATION THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL CODES. Mount the unit to a secure surface using #8 (3mm) hardware in four places. See the drawing on the next page for mounting dimensions.
- Page 4 Correspondingly, the receiver of an electronic signal is labeled RX or Data In. Following this standard, the Data Out of the copper device is connected to the Data In of the MT-915C. The plus terminal of the copper device is connected to the plus terminal of the MT-915C and the minus is connected to the minus.
- Page 5 In order to reconfigure the RS485/422 channel, the module needs to be opened up. To open the MT-915C, remove the end panel on the terminal block side and remove the screw on the bottom of the module. Slide the PCB assembly out about half way. The configuration switch bank is located at the lower right corner of PCB next to the data terminals (See drawing below).
- Page 6 A green LED indicator is provided to monitor the data coming in from the electrical interface, through the MT-915C, and out onto the fiber. The intensity of this indicator will vary with input data patterns; however in typical applications it will cycle on and off as data is transmitted. Data transmitted status associated with this LED is summarized below.
- Page 7 A bi-color LED indicator is provided for the video input to the MT-915C. DC power and video status associated with this LED is summarized below. Video Presence LED DC Power Status Video Status Green Proper Input Video Present Input Video Not Detected...
- Page 8 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
