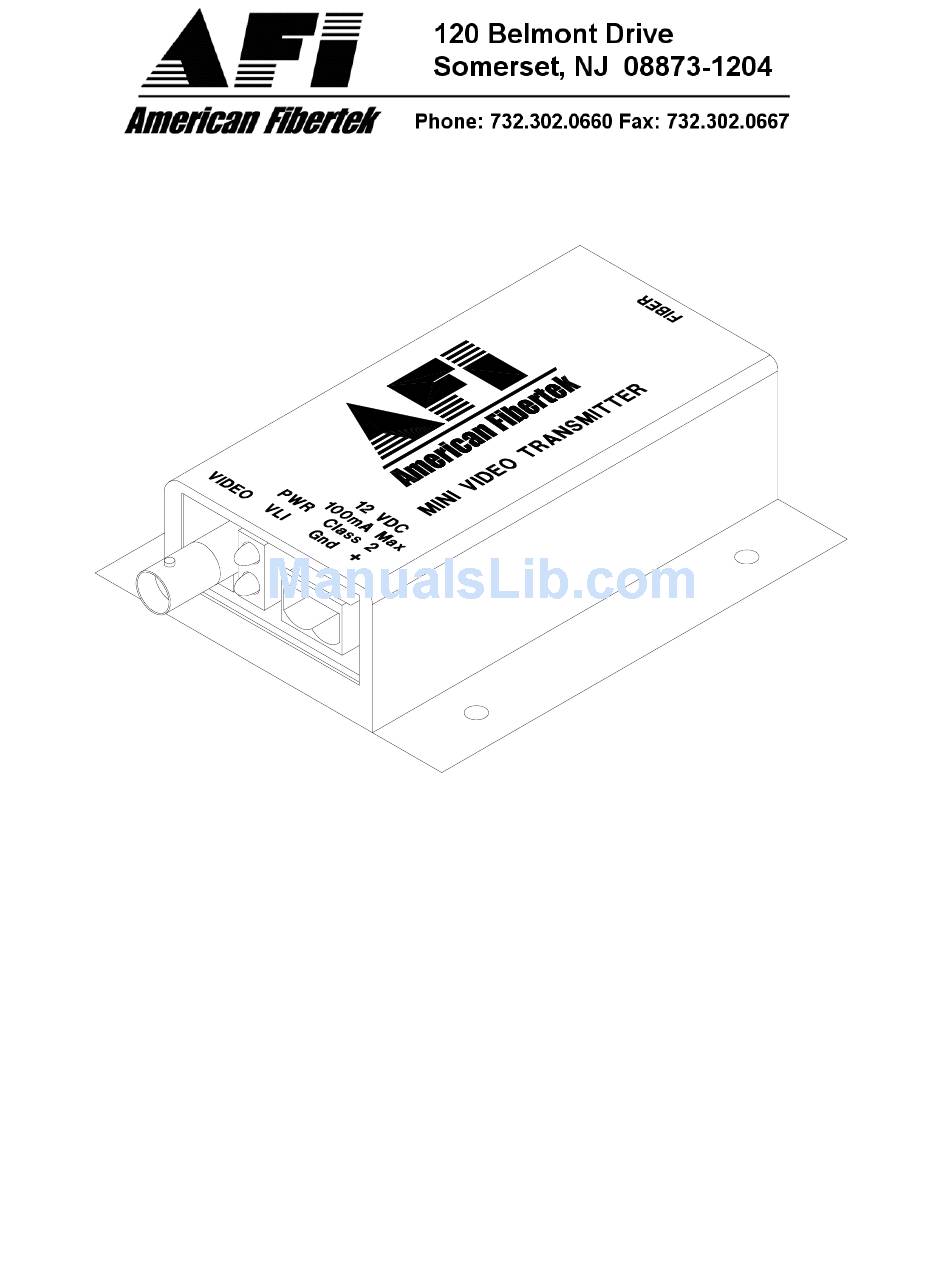

- Page 1 Instruction Manual MTM-300S Mini Video Transmitter © Copyright 2005, American Fibertek, Inc. 0602JD...
- Page 2 1300 nm wavelength source. The M300S Series product is designed to operate over an optical loss budget range of 0 to 12 dB. The MTM-300S operates on 9 um singlemode fiber. Refer to the data sheets for detailed performance specifications.
- Page 3 INSTALLATION THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO THE NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 AND LOCAL CODES. Mount the unit to a secure surface using #8 (3mm) hardware in four places. See the drawing at the bottom of this page for mounting dimensions.
- Page 4 Power Indicator Power Status Green Voltage Present Voltage Not Present A green LED indicator is provided for the video input to the MTM-300S. Video status associated with this LED is summarized below. Video Level Indicator Video Status Green Proper Input Video Present...
