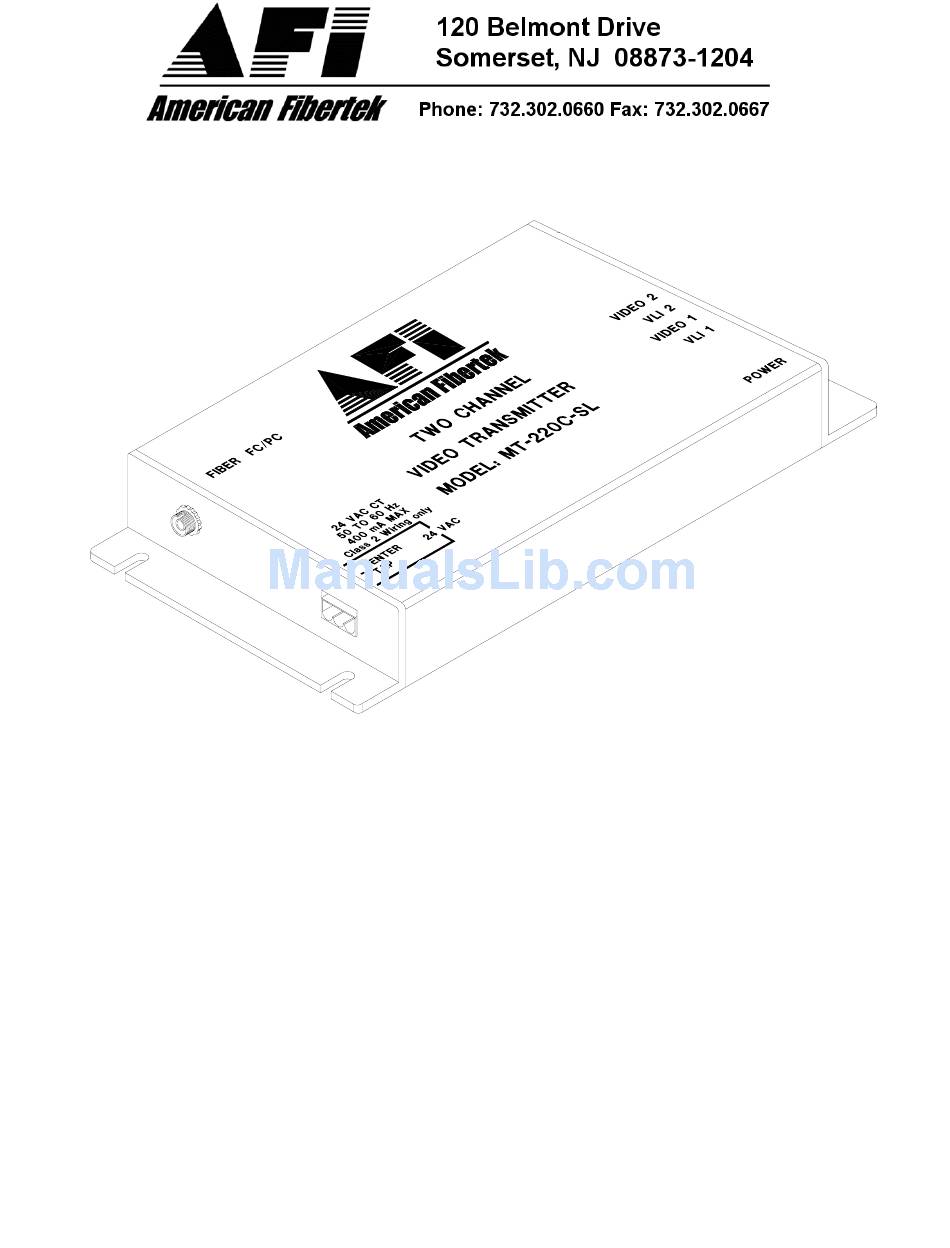

Page 1: Instruction Manual
Instruction Manual MT-220C-SL Two Channel Video Transmitter © Copyright 2005, American Fibertek, Inc. 0922JD... - Page 2 FM carrier frequency to allow the total of two video signals to be combined onto one fiber. The 220C-SL Series product is designed to operate over an optical loss budget range of 0 to 12 dB. The MT-220C-SL operates on 9 um singlemode fiber. Refer to the data sheets for detailed specifications.
- Page 3 POWER SOURCE THIS PRODUCT SHALL BE POWERED BY A LISTED CLASS 2 POWER SUPPLY ONLY. Power to the unit must be within the specifications listed. A 24VAC center tap transformer rated at 400ma is required. In the USA and Canada an American Fibertek PS-24CT-T is supplied with this unit.
- Page 4 MT-220C-SL STATUS INDICATORS The MT-220C-SL transmitter provides the following LED status indicators to aid in installation and troubleshooting: VLI 1 AND VLI 2 A green LED indicator is provided for each of the two video channel inputs. Video status associated with each of these LEDs is summarized below.
