Pre-checks

The IP addresses for
communication between the host
machine and equipment are set
automatically
1. Turn ON the main power switch of the host machine.
2. Set the value in the following service mode to "3".
COPIER > OPTION > INT-FACE > IMG-CONT
3. Exit from Service Mode.
4. Turn OFF the main power switch of the host
machine.

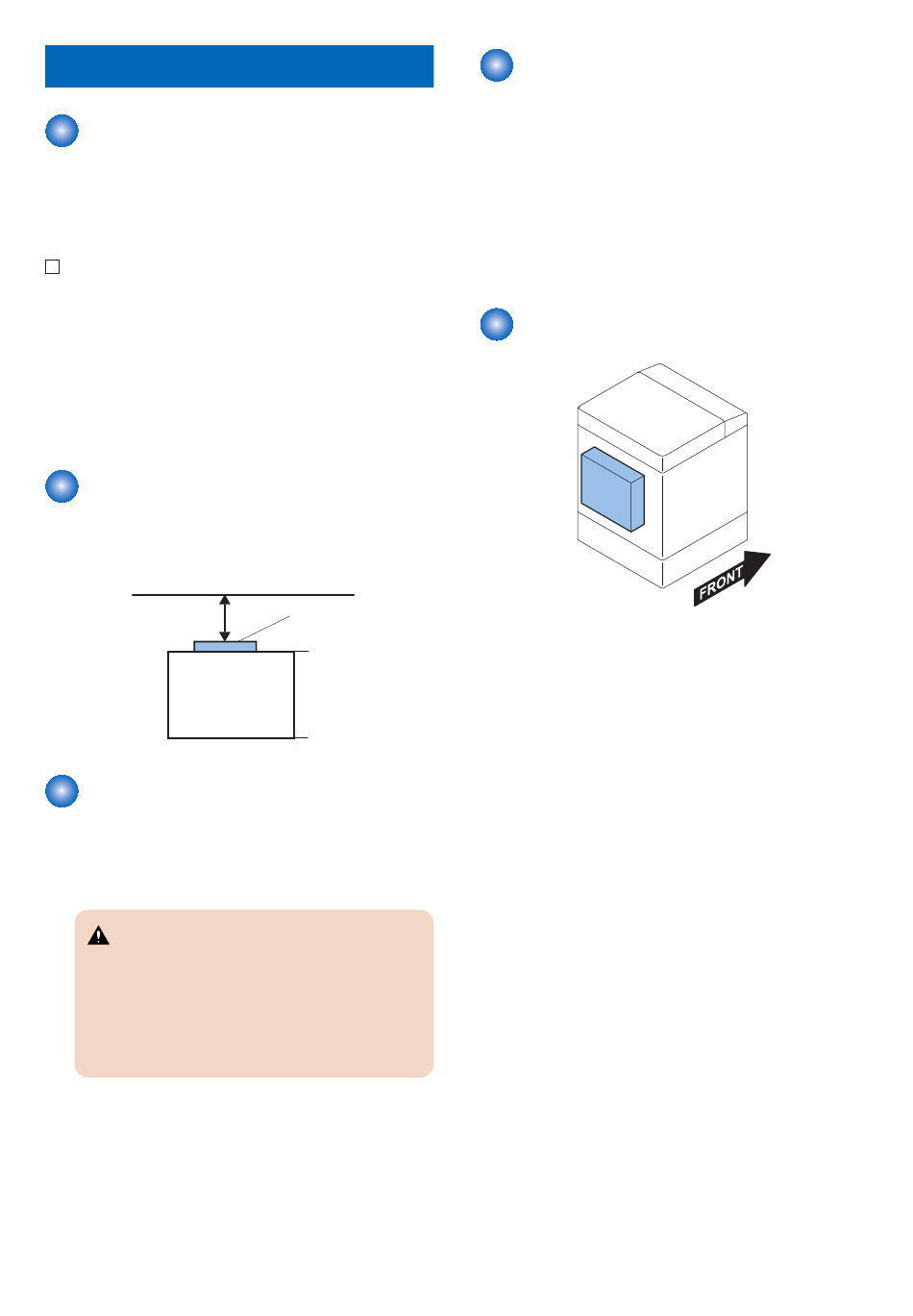

Securing space for installation

Be sure to secure the space for installing this equipment as
shown in the figure. The space of 200 mm or more from the
back of this equipment is necessary.
200mm or more
Essential Items to Be
Performed Before Installation
• Turn OFF the main power of the host machine, and
disconnect the power plug from the outlet.
WARNING:
• If performing work without disconnecting the
power plug of the host machine, it may cause
electrical shock.
• If disconnecting the power plug without
turning OFF the main power, it may cause
damage of the machine.
• When turning OFF the main power, follow the below
procedure.
1. Turn OFF the main power switch of the host
machine.
2. The display in the Control Panel and the lamp of the
main power are turned off.
Equipment
Rear
Front
81
6. INSTALLATION PROCEDURE
Check When Connecting the
Power Plug to an Outlet
1. When connecting the power plug of this equipment to an
outlet, be sure to use an outlet of a system different from
that of the host machine.
2. Be sure to install this equipment near an outlet so that
the power plug can be disconnected right away in case
of emergency, and do not put anything around the power
plug.

Installation Outline Drawing
