2. Remove the motherboard components (see
27).
3. Remove the motherboard from the chassis (see
Place the motherboard on a flat, antistatic surface.
4. Remove the CPU fan cable from motherboard connector CPU FAN.
5. Remove the CPU cooling assembly:
CAUTION:
Be aware that both the cooling assembly and the CPU may be very hot. You may need to allow the components to cool
before you attempt to remove them.
• Loosen the four screws that secure the cooling assembly to the motherboard. Partially loosen all the screws before
loosening any one screw all the way.
• Lift the cooling assembly off the CPU socket and set it aside.
No.
1 Screw (1 of 4)
2 Loosen each screw to this position.
6. Unlock the CPU socket lever and raise it into the open position (flex the lever away from the retention post, and then
raise it).
"To remove motherboard components from the motherboard" on page
"To remove the motherboard" on page
1

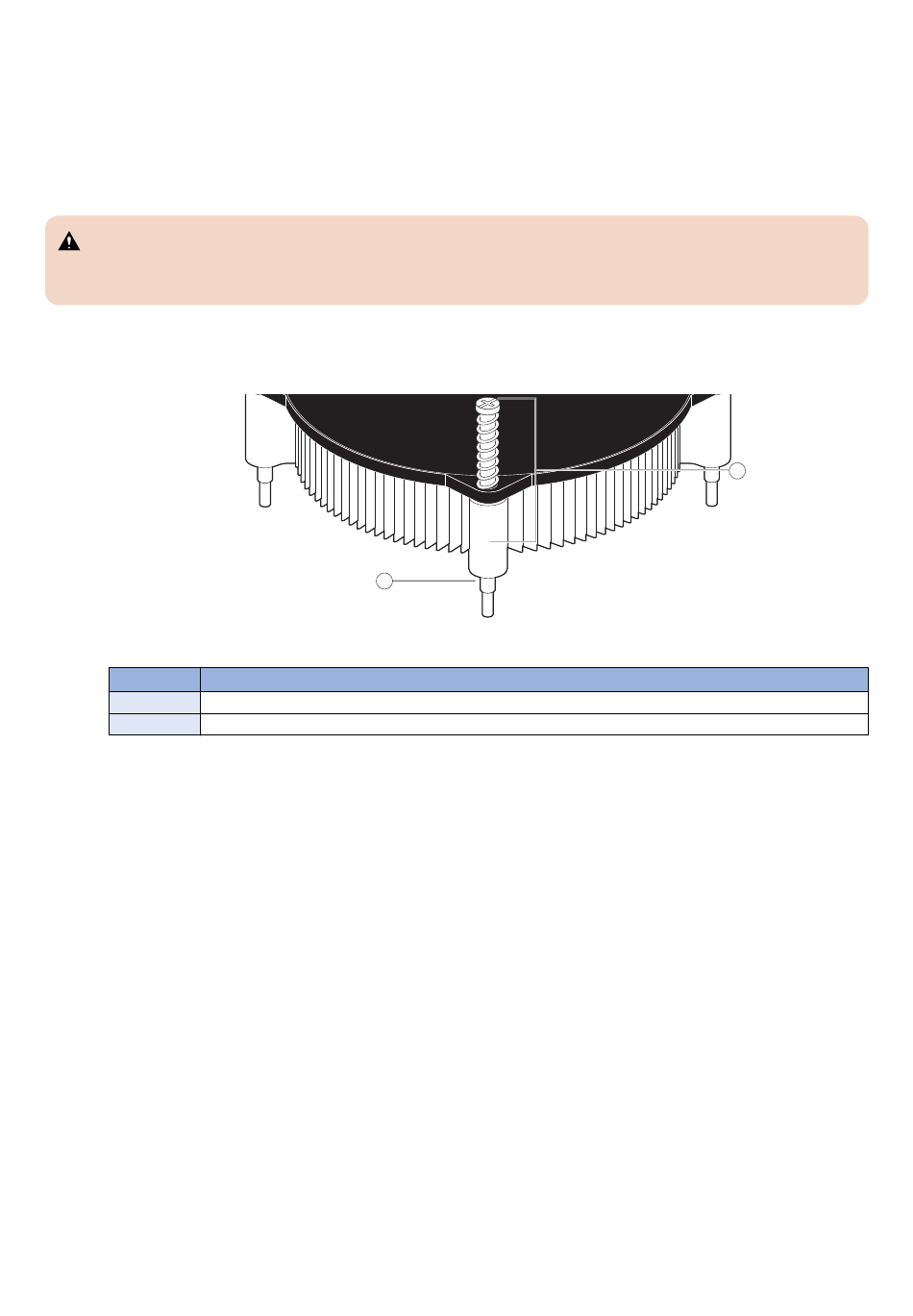

Figure 19: Removing the CPU cooling assembly
33
27).
Name
3. REPLACING PARTS
2
