Canon imagePRESS Server M10 Service Manual page 32

16
9
MS
MS
No.
1 HDD data connector (SATA0)
2 Security chip (J23)
3 Battery (CR1)
4 Printer interface board (PCIEx16)
5 Power button pins (J11)
6 DIMM-A0
7 DIMM-B0
8 Crossover Ethernet port / Type A USB3.0 ports (x2)
9 Type A USB2.0 connector (x2)
10 Type A USB2.0 ports (x2) / Network port (RJ-45)
11 CPU and cooling assembly MS Mounting screws
12 24-pin power connector (J24)
13 4-pin power connector (PWRCONN1)
14 CPU fan connector (CPU FAN J16)
15 FRONT FAN connector (J30)
16 Service board connector (Port 80 Header) (EFI GPIO Header, J4)
MS Mounting screws
NOTE:
Any connectors not listed are not used.
■ Removing the motherboard
Before you remove the motherboard, you must remove:
MS
13
10
8
5

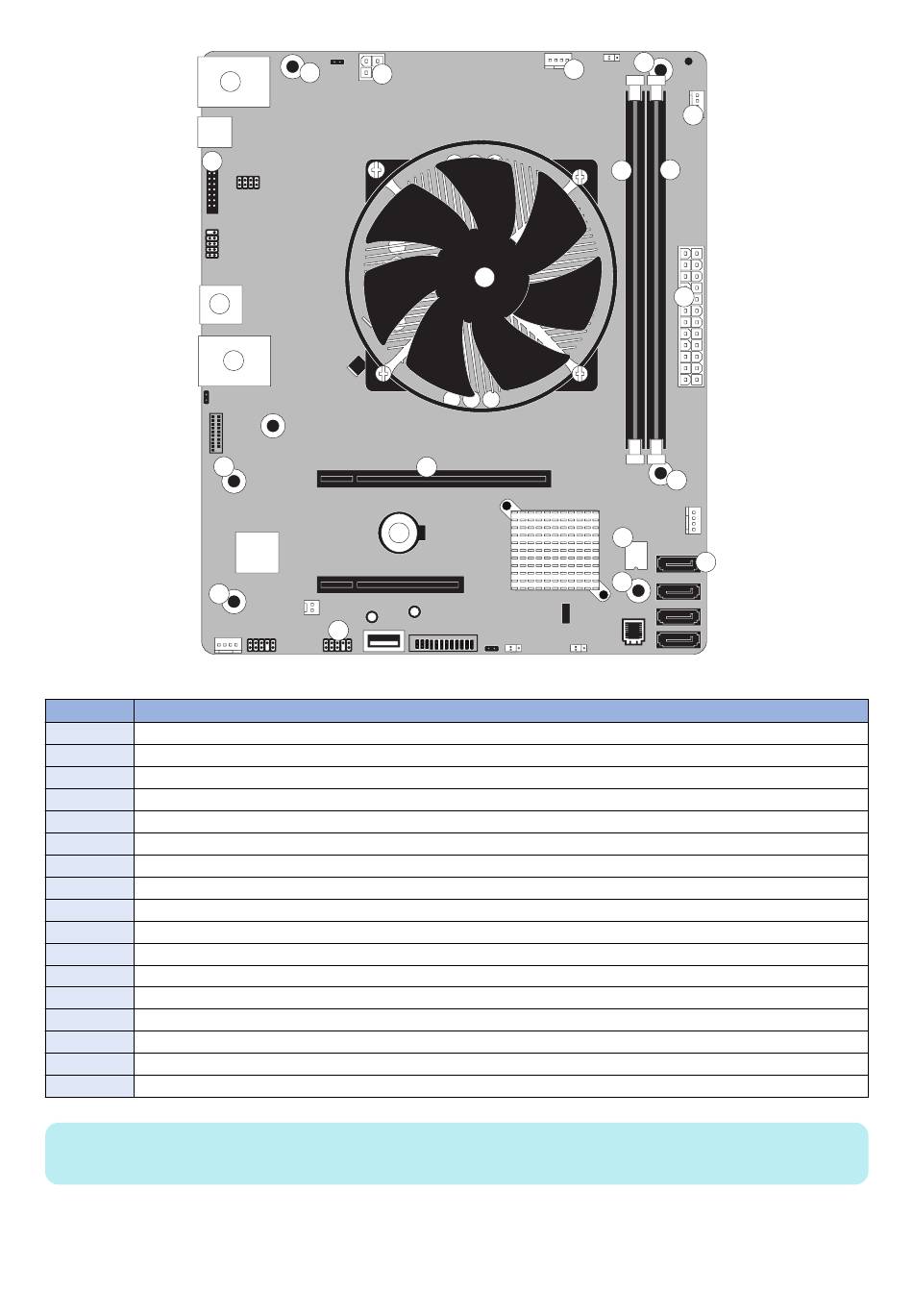

Figure 13: Diagram of the motherboard
14
11
4
3
Name
26
3. REPLACING PARTS
MS
15
7
6
12
MS
2
1
MS
