Canon imagePRESS Server M10 Service Manual page 22

11

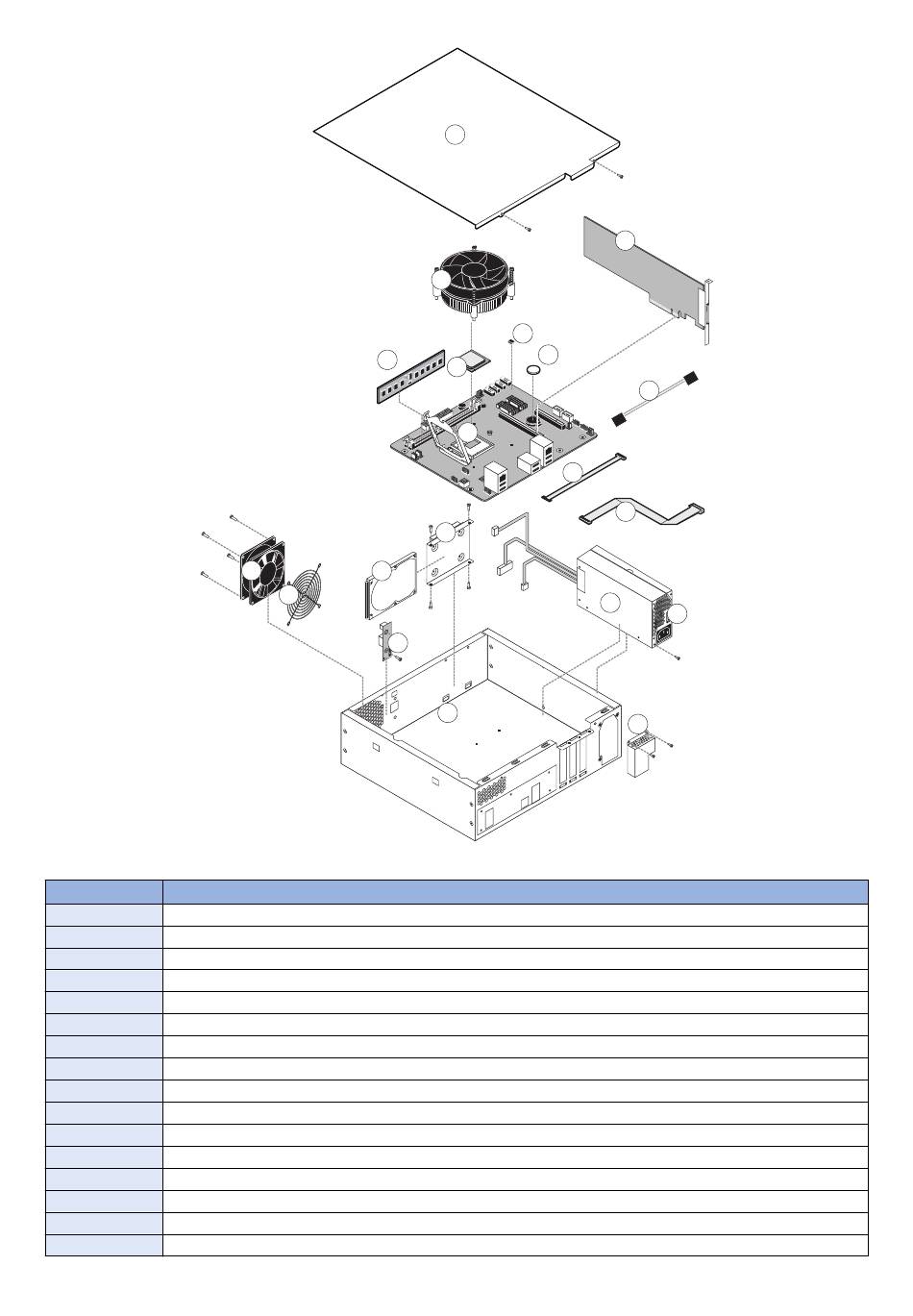

Figure 4: Exploded view of imagePRESS Server components
No.
1 Chassis cover
2 Printer interface board
3 CPU cooling assembly
4 4GB DIMM
5 3.3GHz CPU
6 Security chip
7 Battery
8 Motherboard
9 500GB SATA HDD(hard disk drive)
10 HDD bracket
11 Chassis fan
12 Chassis fan guard
13 Service board
14 HDD SATA data cable
15 10-pin power button cable
16 Service board cable
1
3
4
5
10
9
12
13
19
16
2
6
7
8
14
16
17
20
Parts Name
3. REPLACING PARTS
15
18
