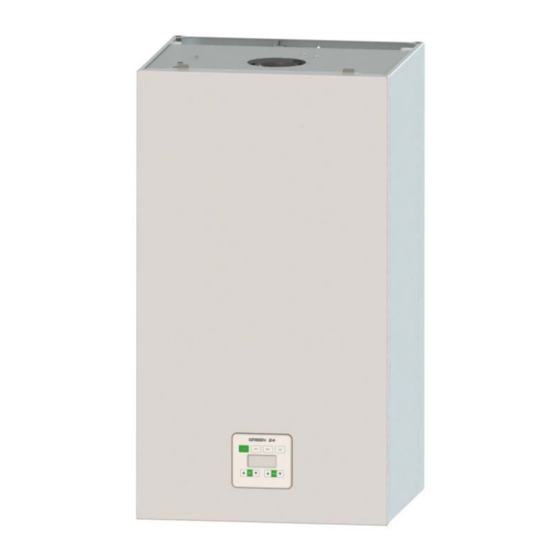

Image for presentation only. Product
may look slightly different depending
on the area and the purchase period.
KÖBER SRL, no. 25 Vaduri, Alexandru cel Bun Commune, Neamt 617511, Romania
Tel.:+40.233.24.17.46, 233.24.19.33, Fax:+40.233.24.19.29
www.motan.ro
KÖBER SRL VADURI BRANCH
USER MANUAL
CONDENSING GAS BOILER
C34GV24-P
C34GV28-P
2726
18
P M0 0 2 4 2 5
