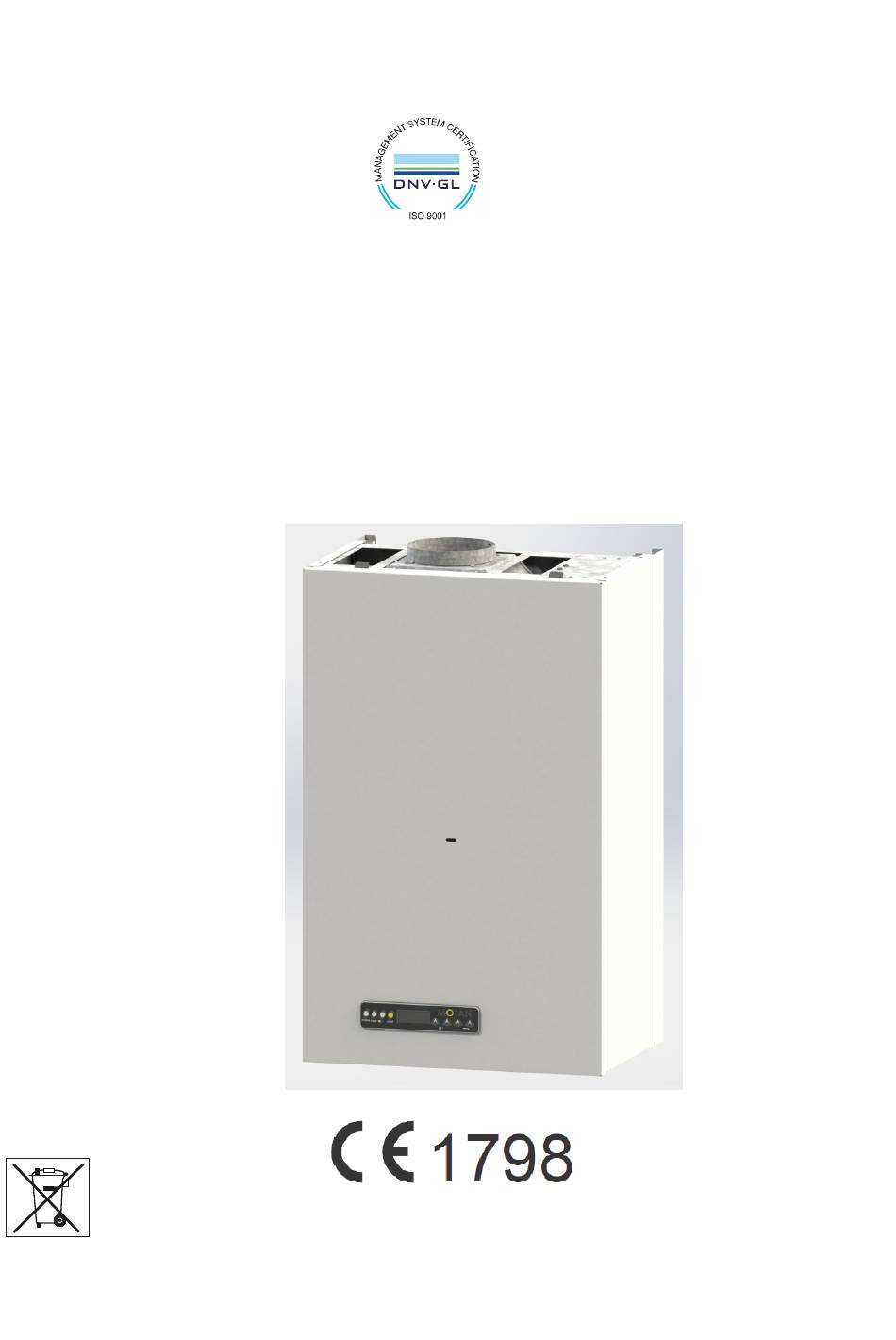

Image for presentation only. Product
may look slightly different depending
on the area and the purchase period.
KÖBER SRL, no. 25 Vaduri, Alexandru cel Bun Commune, Neamt 617511, Romania
Tel.:+40.233.24.17.46, 233.24.19.33, Fax:+40.233.24.19.29
www.motan.ro
KÖBER SRL VADURI BRANCH
USER MANUAL
GAS BOILER
C32SPV24MEC
C32SPV31MEC
Advertisement
Table of Contents
Related Manuals for Kober C32SPV24MEC
Summary of Contents for Kober C32SPV24MEC
- Page 1 KÖBER SRL VADURI BRANCH USER MANUAL GAS BOILER C32SPV24MEC C32SPV31MEC Image for presentation only. Product may look slightly different depending on the area and the purchase period. KÖBER SRL, no. 25 Vaduri, Alexandru cel Bun Commune, Neamt 617511, Romania Tel.:+40.233.24.17.46, 233.24.19.33, Fax:+40.233.24.19.29...
-
Page 2: Table Of Contents
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Content Safety instructions and symbols ..............................3 Valability of instructions ................................3 EC Marking ....................................3 Use according to destination ............................... 3 Safety instructions ..................................3 Instalation and adjustment ..................................3 Gas smell ........................................3 Changes in the area adjiacent to the heating station ........................3... -
Page 3: Safety Instructions And Symbols
Directive for low frequency 2006/95/EC (ex. 73/23/EEC). Use according to destination - Central heating stations C32SPV24MEC / C32SPV31MEC are designed following current technical standards and observing recognized safety norms; - In case of misuse or inappropriate use, the health or life of users or third parties can be put in danger, as well as the central heating station and other goods;... -
Page 4: Technical And Functional Characteristics
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Technical and functional characteristics Tab. 1 Technical characteristics Name SIGMA24 TN SIGMA31 TN Type C32SPV24MEC C32SPV31MEC II2H3B/P Gas category Flue type Natural Draught Burning room Open Energy efficiency symbol (dir. 92/42/CEE) Class NOx (natural gas) -
Page 5: Mounting
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Mounting Mounting set Check whether the mounting set is complete and undamaged – see table 2. Tab. 2 Mounting set Pos. Name Item Station Station support Bag of small elements - it contains: - mounting screws 8x80 - 2 items. -
Page 6: Installation
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC 7.2.2 Minimum necessary distances/ free spaces for mounting Both for the mounting/ installation of the central heating stations and for later maintenance operations you will need the following minimum distances (fig. 1.3), respectively minimum free spaces for mounting: –... -
Page 7: Racordul De Gaz
(according to the Technical Norms for the planning and execution of natural gas input systems). Central heating boiler types C32SPV24MEC; C32SPV31MEC function on GN natural gas. The gas connecting pipe is made of stainless steel with an interior diameter of 16.4 mm. The gas input pipe must not have a diameter smaller than that of the gas connecting pipe of the central heating station. -
Page 8: Connecting Pipe Of The Safety Valve
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Connecting pipe of the safety valve Caution! Danger of hot water burns! The connecting pipe of the pressing of the safety valve is connected to the drain pipe to the sewage system. - Page 9 USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Caution! Obligatory operation! Check the correct functioning of the pump with no fuel in the central heating station. Defficient thermal transfer can cause the melting of the vent pipe of the ventilator, errors of the central heating station damage of the main switch of the station.
-
Page 10: Operation Instructions
USER MANUAL CENTRAL HEATING STATION TYPE USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Operation instructions Control Panel The LMC1112 control panel (fig.1.5) allows the visualization and change of parameters allows the visualization and change of parameters defining the functioning of the defining the functioning of the central heating station. -
Page 11: Graphic Context - Error State
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC An exception to the rule: the anti-freezing function (generated by a value of water temperature in the installation lower than 9°C, which will initiate a burning cycle to prevent the freezing of the thermal agent in the installation. -
Page 12: Graphic Context - Service Submenu
This submenu can be accessed only by service personnel authorised by submenu can be accessed only by service personnel authorised by KOBER SRL Vaduri Branch. Central heating station startup To startup the station press J5(POWER) key key fig.1.5. -
Page 13: Error Signals
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Error signals Possible errors of the system are indicated by the following codes which appear on the display. Table 5: Meaning of error signals which appear on the display: Non- Codul Semnificatie... -
Page 14: Station Switch Off In Safety Conditions
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Station switch off in safety conditions If the user observes abnormal functioning of the equipment, if error codes are displayed repreatedly or if the user cannot understand the actions of the central heating station, the user must stop the functioning of the station immediately and in maximum safety conditions. -
Page 15: Drawings Necessary For Mounting And Installation
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC Drawings necessary for mounting and installation 11.1 Types of configurations for mounting the flue kit Min. Min 3% 1 m max. Min. Min 3% 1 m max. REV.12.06.2017 15 of 18... -
Page 16: Hydraulic Characteristic Of Er P Pump (Eei≤0,2)
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC 11.2 Hydraulic characteristic of ER P pump (EEI≤0,2) When designing the thermal installation, the hydraulic characteristics of the pump need to be taken into consideration. Q PUMP FLOW [mc/h] Pump settings: LED 1 The pump can be set to function in four modes (4 steps). -
Page 17: Functioning Schemes Covered By Warranty
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC 11.4 Functioning schemes covered by warranty 11.4.1 Central heating with radiators and instant preparation of domestic hot water 11.4.2 Underfloor central heating and instant preparation of domestic hot water REV.12.06.2017 17 of 18... -
Page 18: Central Heating With Radiators And Accumulated Preparation Of Domestic Hot Water (Accummulation Boiler)
USER MANUAL CENTRAL HEATING STATION TYPE C32SPV24MEC; C32SPV31MEC 11.4.3 Central heating with radiators and accumulated preparation of domestic hot water (accummulation boiler) 11.4.4 Underfloor central heating and accumulated preparation of domestic hot water (accummulation boiler) REV.12.06.2017 18 of 18...
