Package Contents:
PARTS
(2) CROSS BARS
(4) C300 LEGS
(4) C300 HINGE ASSEMBLIES
(4) C300 LOAD SECURE POSTS
HARDWARE KIT
(8) 3/8"-16 NUTS
(8) 3/8" SPLIT LOCK WASHERS
(8) 3/8"-16 x 2" HEX BOLTS
(20) 5/16"-18 x 1" HEX BOLTS
(20) 5/16"-18 NUTS
(20) 5/16" SPLIT LOCK WASHERS
(8) SPACERS
Before you begin:
Rack fits both straight and angled caps.
Remove all components from the shipping carton.
The rack should be assembled on a padded surface such as carpet to prevent scratching of aluminum surfaces. Remove bands securing
components together.
Read the instructions thoroughly to familiarize yourself with the assembly sequence.
Note that you DO NOT tighten any nuts and bolts until the completed rack is installed on the vehicle unless specified. This allows for minor
adjustments to the rack during the installation process.
Gather the following tools used to assemble and install the rack.
9/16" Socket or open end wrench
1/2" Socket or open end wrench
3/8" Drill bit and drill
Pencil or marker
Tape measure
Center punch and hammer (optional)
Level
2x4 Boards
HAULER RACKS, INC.
st
7109 31 Avenue North
Minneapolis, MN 55427-2848

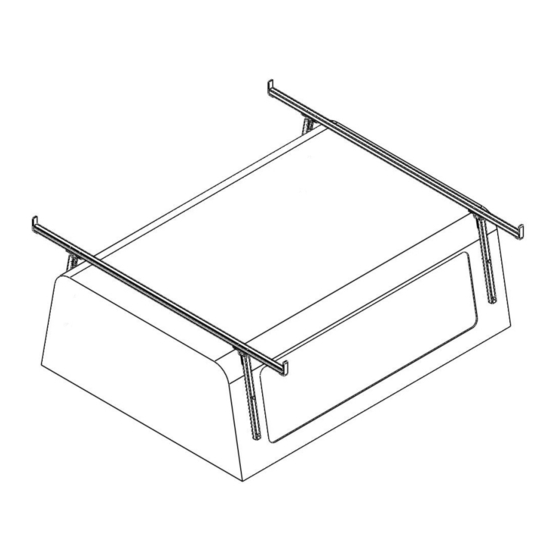

C300 RACK INSTRUCTIONS
P/N C300FULL-1 / C300MINI-1
Page 1 of 7
Toll Free: 1-800-843-5445
Phone: 763-546-5620
Fax: 763-546-0933
WWW.HAULERRACKS.COM
Advertisement
Table of Contents
Related Manuals for Hauler Racks C300
Summary of Contents for Hauler Racks C300
- Page 1 Package Contents: PARTS (2) CROSS BARS (4) C300 LEGS (4) C300 HINGE ASSEMBLIES (4) C300 LOAD SECURE POSTS HARDWARE KIT (8) 3/8”-16 NUTS (8) 3/8” SPLIT LOCK WASHERS (8) 3/8”-16 x 2” HEX BOLTS (20) 5/16”-18 x 1” HEX BOLTS (20) 5/16”-18 NUTS...
- Page 2 1. Hinge assembly Assemble the C300 hinge base as shown using (2) 5/16”-18 x 1” hex head bolts, (2) 5/16” split lock washers and (2) 5/16”-18 nuts. Assemble the C300 hinge leg as shown using (2) 5/16”-18 x 1” hex head bolts, (2) 5/16” split lock washers and (2) 5/16”-18 nuts.
- Page 3 Position the 5/16”-18 nuts so they slide into the inner channel of the c300 leg. Slide the C300 leg so that the end of the leg is 1/8” from the hinge base. Tighten the 5/16”-18 x 1” hex bolts. Repeat for remaining hinge assemblies.
- Page 4 Slide the assembly into the crossbar. Repeat for other side of crossbar. Repeat for other crossbar. Slide in (1) 5/16”-18 nut into the inner channel of the crossbar on each end as shown below. Repeat for other crossbar. HAULER RACKS, INC. Page 4 of 7 Toll Free: 1-800-843-5445 7109 31...
- Page 5 4. (Continued) Crossbar assembly Install the C300 load secure posts as shown. Place the ends of the C300 load secure posts so they are flush against the crossbar. Tighten the C300 load secure posts with (2) 5/16” split lock washers and (2) 5/16”-18 x 1” hex bolts.
- Page 6 Place (2) 3/8”-16 x 2” hex bolts through the leg and cap. Secure with (2) spacers, (2) 3/8” split lock washers and (2) 3/8”-16 nuts. Repeat for other legs. Tighten all nuts and bolts. Remove 2 x 4 boards. HAULER RACKS, INC. Page 6 of 7 Toll Free: 1-800-843-5445 7109 31...
- Page 7 The racks have been load tested for the racks capacity to hold loads when not on a vehicle. Hauler Racks, Inc. does not warranty load capacities. As the factory has no way of knowing if the product was properly assembled, installed, used according to instructions, or if loads were secured properly.
