Congratulations on purchasing our fine product. We take pride in the quality and
construction of every rack and want you to have an enjoyable time assembling
and installing it. If you have any questions or comments regarding this product,
please feel free to contact our technical support department at 1-800-843-5445
(US) or 1-877-928-4591 (Canada).
Before you begin:
Remove all components from the shipping carton. Rack should be
1.
assembled on a padded surface such as carpet to prevent scratching of
aluminum surfaces. Remove bands securing component sections
together.
2. Read the instructions thoroughly to familiarize yourself with the assembly
sequence.
3. Note that you
is installed on the vehicle. This allows for minor adjustments to the rack
during the installation process.

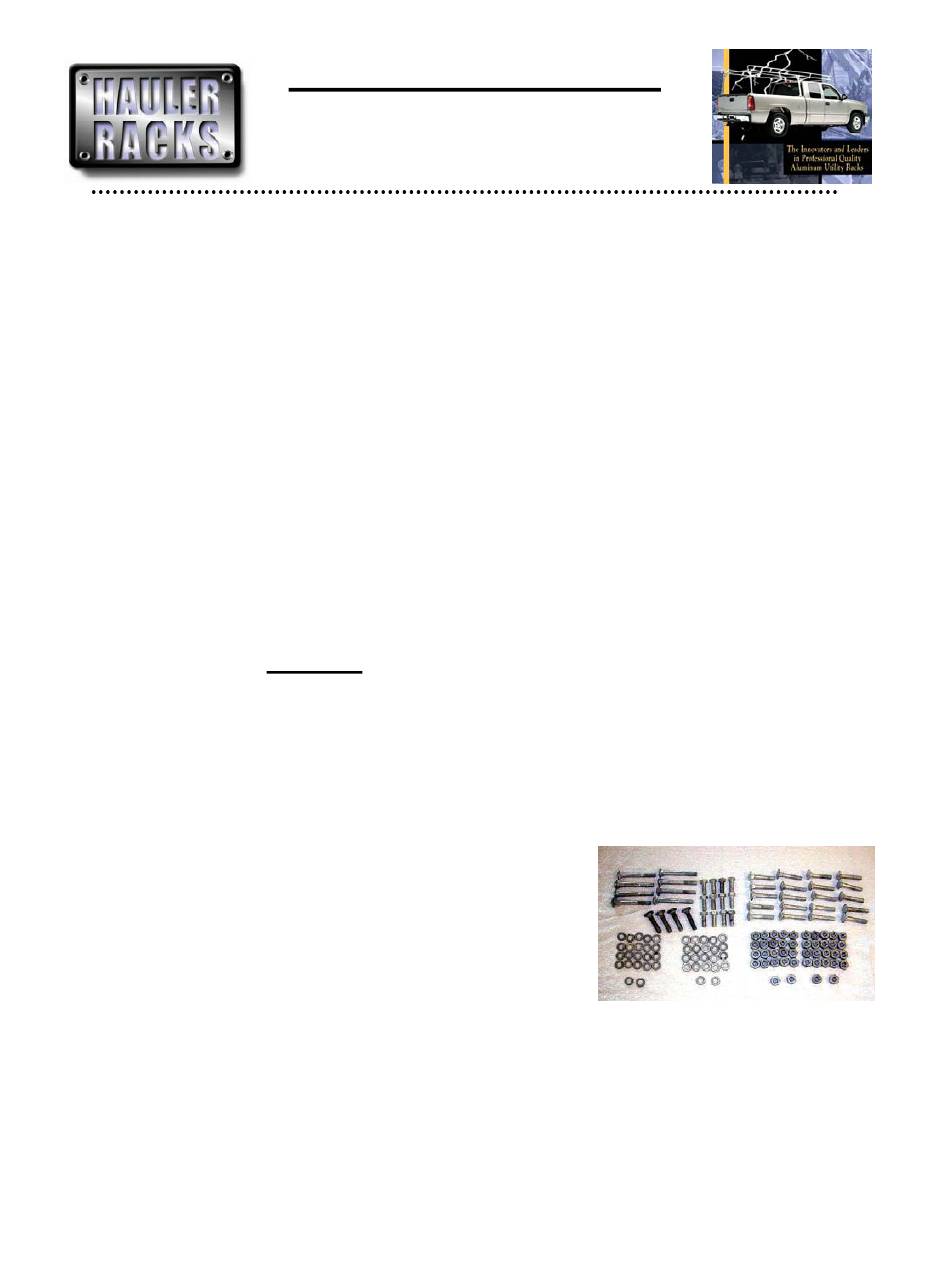

4. Open the hardware box and ensure there are no missing pieces. All
hardware is galvanized to prevent corrosion. See the last page of this
instruction sheet for hardware identification photo. Hardware count:
Quantity
12
12
4
20
8
44
44
5. Gather the following tools used to assemble and install the rack:
HAULER RACKS, INC.
Assembly Instructions
Rack Part #:
T-10, T-11, T-12, T-7
"S" and "SHD" Versions
DO NOT
tighten any nuts and bolts until the completed rack
Description
3/8" x 1" Hex Bolts
3/8" x 1" Lag Bolts
3/8" x 1-3/4" Carriage Bolts
3/8" x 2" Carriage Bolts
3/8" x 3" Carriage Bolts
3/8" Lock Washers
3/8" Nuts
9/16" Socket or Open-End Wrench
3/8" Drill Bit and Drill
Pencil or Marker
2 Clamps (Optional)
1
Advertisement
Table of Contents
Related Manuals for Hauler Racks T-10
Summary of Contents for Hauler Racks T-10
- Page 1 HAULER RACKS, INC. Assembly Instructions Rack Part #: T-10, T-11, T-12, T-7 “S” and “SHD” Versions Congratulations on purchasing our fine product. We take pride in the quality and construction of every rack and want you to have an enjoyable time assembling and installing it.
- Page 2 Assembly Steps: 1. Connect Front and Back Top Railings. Slide the 5” bracket forward to line up with back two bolt holes. Insert front railing portion into bracket and line up remaining two holes. Using (2) 1-3/4” and (4) 3” carriage bolts, (6) lock washers, and (6) nuts, install hardware finger tight.
- Page 3 4. Install Rear Cross Bar. The rear cross bar is the smooth rectangular tube with the square bolt holes in each end. In addition, SHD (Heavy Duty) models will have (2) 2” hex bolts installed in underside of bar for corner supports.
- Page 4 7. Install Front Legs. The front legs can be identified by the notches in the mounting brackets attached to the bottom of the leg. Install front legs with the notches facing forward using (4) 2” carriage bolts, (4) lock washers, and (4) nuts. Finger tighten only. SHD (Heavy Duty) models will have a 2”...
- Page 5 9. Drill and Attach Rack Brackets to Truck Bed. Ensure legs and rack are square and rack is positioned correctly on truck bed rails. Mark hole positions on all four legs (3 holes per leg bracket – 2 top and 1 inside) and drill 3/8”...
- Page 6 Rack Components Identification Rear Middle Corner Supports Front (SHD Models Only) Right and Left Side Rails Rear, Middle, and Front Cross Bars, (Front and Back Sections) Corner Supports (if equipped), Hardware Box Backs Right Front Left Front Front (notched) and Rear Legs Assembled Rack (See additional insert if installing around a campershell) Hardware Identification...
