Hauler Racks HKRS4-1 Quick Start Manual

Package Contents:

PARTS
(1) CROSS BAR
(2) LEGS WITH FEET
(2) "T" BRACKETS
(1) SCREEN ASSEMBLY
(2) SCREEN 'L' MOUNTS
(2) LOWER SCREEN MOUNTS
(2) LOAD SECURE POSTS
HARDWARE KIT
(4) 3/8"-16 x 2" CARRIAGE BOLTS
(2) 3/8"-16 x 2-1/2" HEX BOLTS
(2) 3/8"-16 x 1-3/4" HEX BOLTS
(2) 3/8"-16 x 1-1/2" HEX BOLTS
(6) 3/8"-16 x 1-1/4" HEX BOLTS
(10) 3/8"-16 x 1" HEX BOLTS
(26) 3/8"-16 NUTS
(26) 3/8" SPLIT LOCK WASHERS
(2) 5/16"-18 x 1-1/2" HEX BOLTS
(2) 5/16"-18 NUTS
(2) 5/16" SPLIT LOCK WASHERS
(4) PLASTIC END CAPS

Before you begin:

Remove all components from the shipping carton.
The rack should be assembled on a padded surface such as carpet to prevent scratching of aluminum surfaces. Remove bands securing
components together.
Read the instructions thoroughly to familiarize yourself with the assembly sequence.
Note that you DO NOT tighten any nuts and bolts until the completed rack is installed on the vehicle unless specified. This allows for minor
adjustments to the rack during the installation process.
Gather the following tools used to assemble and install the rack.
9/16" Socket or open end wrench
1/2" Socket or open end wrench
3/8" Drill bit and drill
Pencil or marker
Tape measure
Center punch and hammer (optional)
Level (optional)

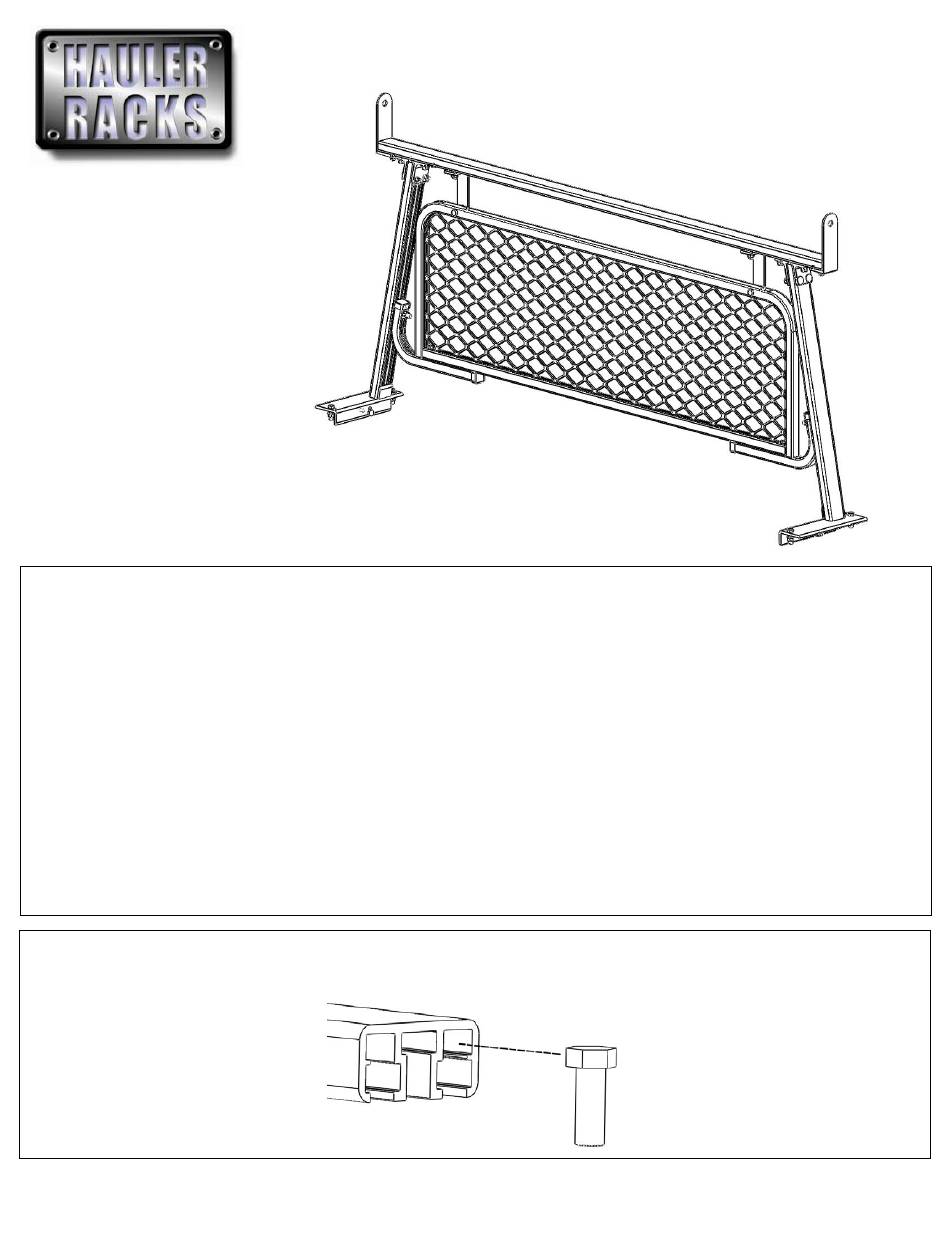

1. 'L' bracket bolts
Slide in (2) 3/8"-16 x 1-" bolts into the outer channel of the load bar as shown below. Slide a bolt from each end in towards the center of the load
bar.
