Hauler Racks ECONO TRUCK UETR Series Instructions Manual

Package Contents:
PARTS
(2) CROSSBARS
(4) LEGS
(2) SIDE 'A' FEET
(2) SIDE 'B' FEET
(4) 'T' BRACKETS
(4) HD BRACES
(8) LOAD SECURE POSTS
HARDWARE KIT
(64) 3/8"-16 NUTS
(64) 3/8" SPLIT LOCK WASHERS
(16) 3/8"-16 x 1-1/4" HEX BOLTS
(16) 3/8"-16 x 1-1/2" HEX BOLTS
(16) 3/8"-16 x 1" HEX BOLTS
(8) 3/8"-16 x 2" CARRIAGE BOLTS
(8) 3/8"-16 x 1-3/4" CARRIAGE BOLTS
Before you begin:
Remove all components from the shipping carton.
The rack should be assembled on a padded surface such as carpet to prevent scratching of aluminum surfaces. Remove bands securing
components together.
Read the instructions thoroughly to familiarize yourself with the assembly sequence.
Note that you DO NOT tighten any nuts and bolts until the completed rack is installed on the vehicle unless specified. This allows for minor
adjustments to the rack during the installation process.
Gather the following tools used to assemble and install the rack.
9/16" Socket or open end wrench
3/8" Drill bit and drill
Pencil or marker
Tape measure
Clamp (optional)

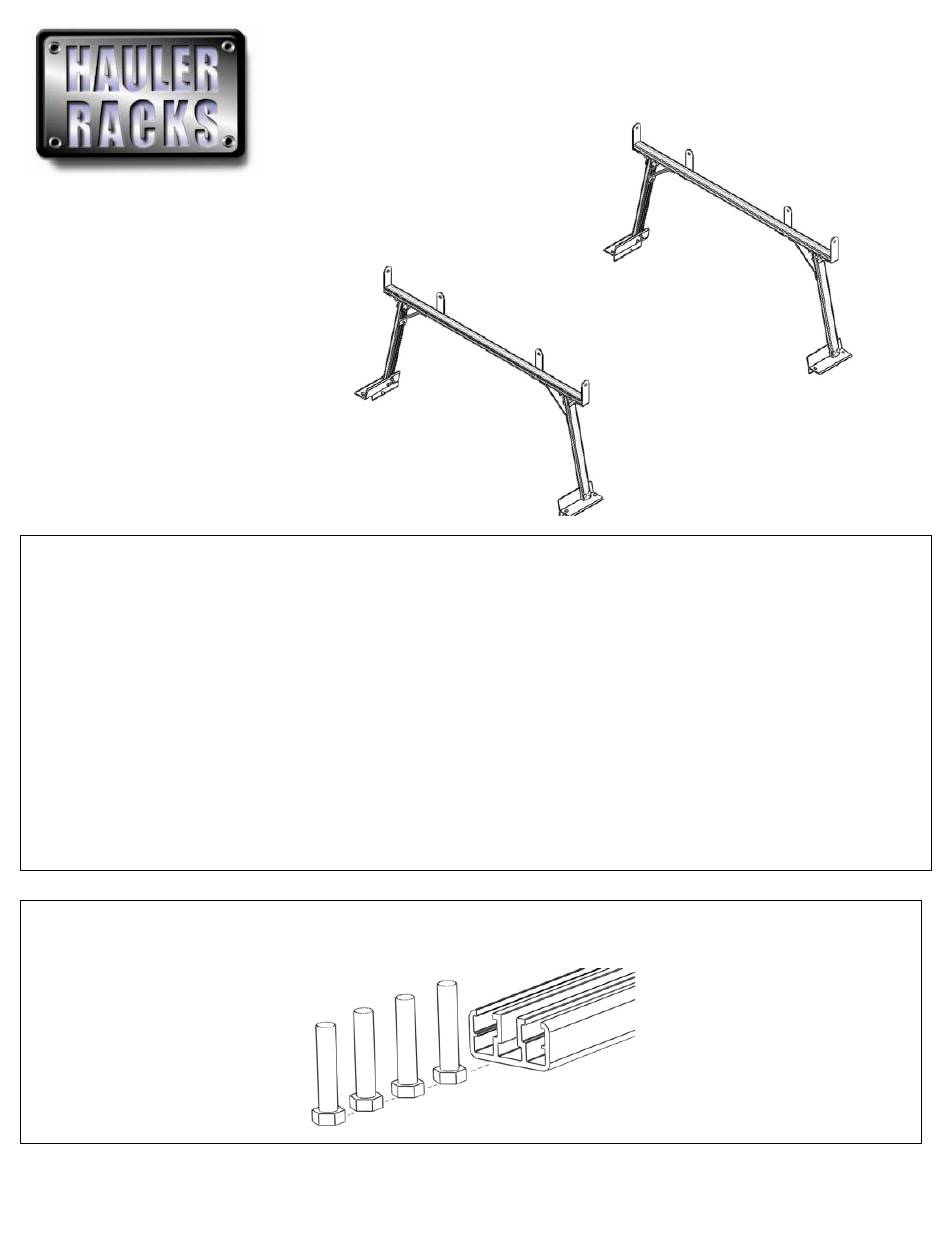

1. Center bolts
Slide in (4) 3/8"-16 x 1-1/2" bolts into the center channel of the crossbar as shown below. Slide the bolts towards the center of the crossbar.
Repeat for other crossbar.
