H3C MSR810 Routers Installation Quick Start-6P102
H3C MSR810

Tool list

The installation tools are not provided with the router. Prepare them yourself.
路由器不随机提供安装工具,请用户根据实际安装需求自己准备安装工具。
Ruler
Wire-stripping pliers
水平尺
剥线钳
Diagonal pliers
Heat gun
斜口钳
热吹风
Flathead screwdriver
Phillips screwdriver
一字螺丝刀
十字螺丝刀

Introduction to installation accessories

GPS antenna
4G antenna
外置4G天线
GPS天线
M6 screw
M4 screw
(user supplied)
(user supplied)
M6 螺钉(用户自备)
M4 螺钉(用户自备)
Wear an ESD-preventive wrist strap, and make sure the wrist strap makes good skin
!
contact and is well grounded.
操作者需佩戴防静电腕带,确保防静电腕带与皮肤良好接触,并确认防静电腕带已经良好
接地。
Rubber hammer
ESD wrist strap
橡胶锤
防静电腕带
Drill
电钻
WLAN antenna
Ring terminal
接地端子
WLAN天线
浮动螺母(用户自备)
Wall anchor and screw
(user supplied)
Mounting brackets
膨胀螺管和螺钉
挂耳
(用户自备)
-6P102

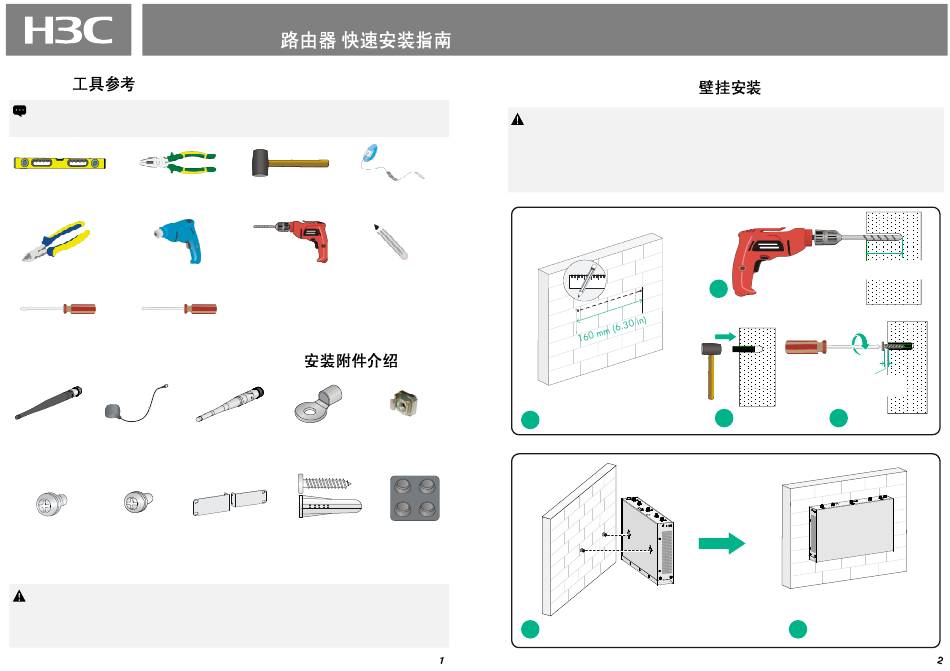

Wall-mounting the router

When you mount the router on a wall, make sure the Ethernet ports face downwards
!
and the two sides with ventilation holes are perpendicular to the ground.
安装时请将设备的以太网口朝下,设备带通风孔的两个侧面与地平面垂直。
The RT-MSR810-10-PoE router is not wall mountable.
RT-MSR810-10-PoE不支持壁挂安装。
Marker
记号笔
1
Cage nut
(user supplied)
Rubber feet
胶垫贴
5
≥ 22 mm (0.87 in)
2
≥ 1.5 mm
(0.06 in)
3
4
6
