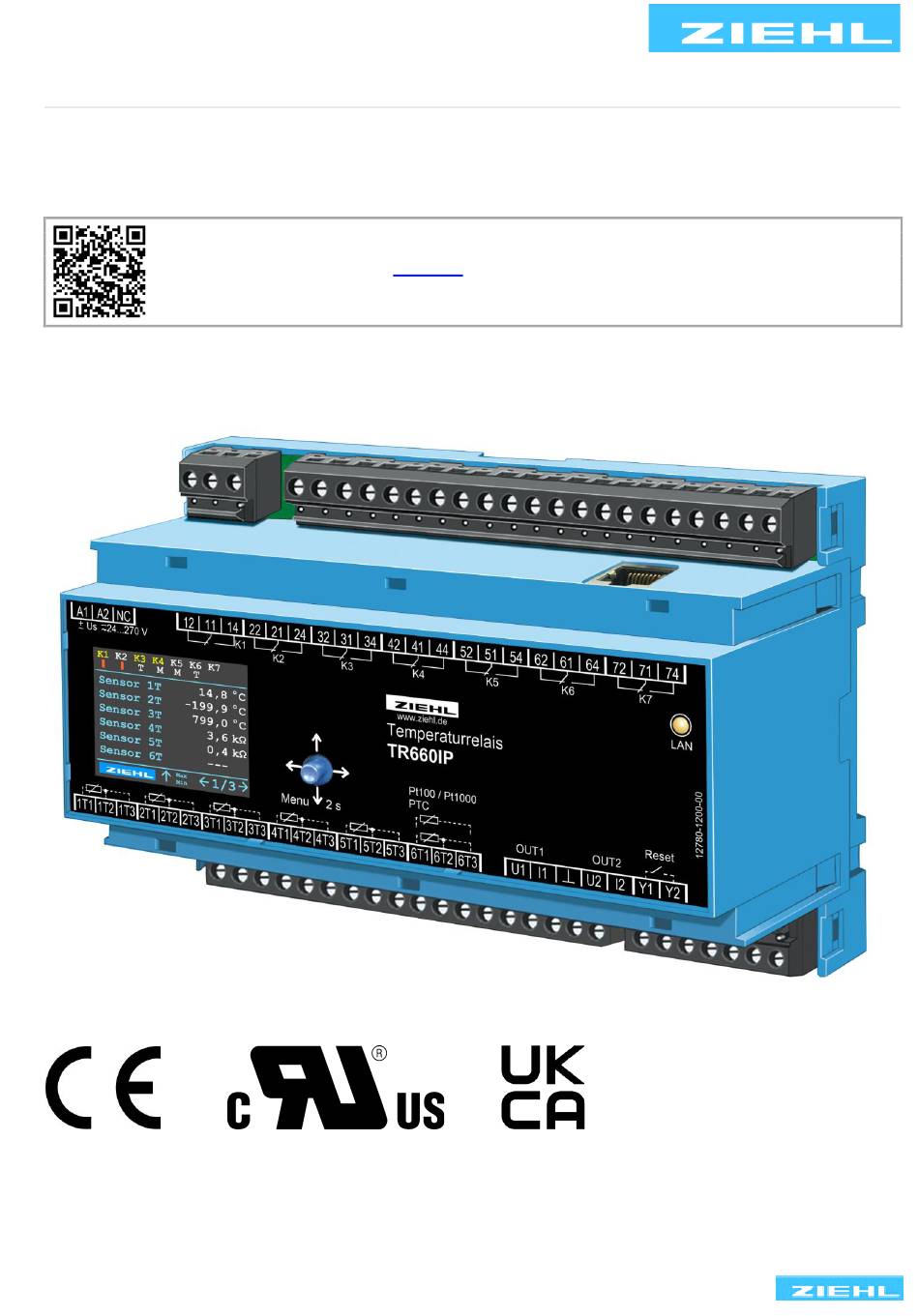

Temperature Relays and MINIKA®
Operating Manual TR660IP
For more information and help about this product please scan the
choose the following link:
Operating manual, Quick guide, Datasheet, Connection diagram, CAD Data
Firmwareupdates, FAQ, Videos about installation and settings, Certificates

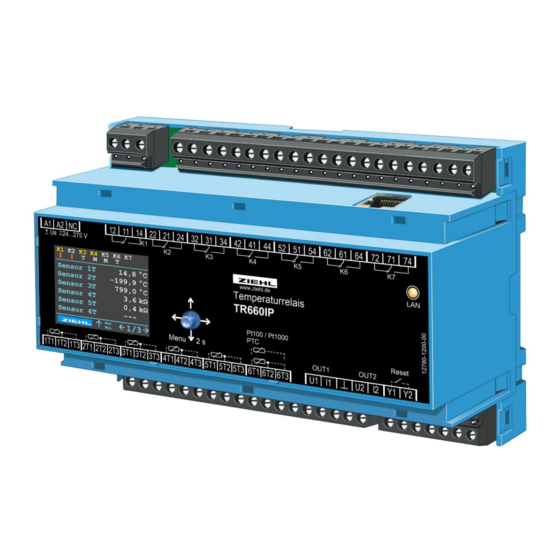

- Pt100, Pt1000, PTC temperature relay with integrated webserver and display
TR660IP
12780-0702-02
Mains Monitoring
Digital Panelmeters MINIPAN®
TR660IP
Switching Relays and Controls
Page 1 / 37
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Measuring Transducers
Grid- and Plant Protection
updated: 2022-11-29 / sm
from Firmware: 0-06
QR-Code
or
www.ziehl.de
www.ziehl.de
Advertisement
Table of Contents
Related Manuals for ZIEHL TR660IP
Summary of Contents for ZIEHL TR660IP
- Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de Temperature Relays and MINIKA® Mains Monitoring Digital Panelmeters MINIPAN® Switching Relays and Controls Measuring Transducers Grid- and Plant Protection updated: 2022-11-29 / sm...
-
Page 2: Table Of Contents
Display and controls ..........................4 Pre-sets ..............................4 Application and short description ......................4 Overview of functions ..........................5 Connecting diagram ..........................6 TR660IP Analog ..........................6 TR660IP RS485 ..........................6 Ethernet ............................6 Important Information ..........................7 Installation .............................. 7 Commissioning............................ -
Page 3: General Notes
Deviations from the following requirements may therefore lead both to the loss of the statutory material defect liability rights and to the liability of the buyer for the product that has become unsafe due to the deviation from the specifications. TR660IP 12780-0702-02 Page 3 / 37... -
Page 4: Display And Controls
• Transformers, also with additional core temperature monitoring • Machinery and equipment Switchgear type TR660IP monitor up to 6 sensors simultaneously. The user can assign several limit values to the 7 output relays almost arbitrarily. The assignment sensor / relay is very variable programable. Basic settings such as the monitoring of 3 sensors to the same limit with common message (e.g. -
Page 5: Overview Of Functions
• Wide range power supply AC / DC 24 – 270V • Integrated web server for the measurement query, configuration and for firmware updates • 4x analogue output (2x voltage, 2x current) –TR660IP Analog only • RS485 interface (Modbus RTU) –TR660IP RS485 only... -
Page 6: Connecting Diagram
6 Connecting diagram 6.1 TR660IP Analog 6.2 TR660IP RS485 For the last device in the RS485 bus, the bridges „1)“ must be screwed in from D1 to D1‘ and from CAUTION! D0 to D0‘. Wire bridges are not included. 6.3 Ethernet Ethernet socket for network cable. -
Page 7: Important Information
• connecting wires refer to the connection plan to prevent miss-operation and malfunction. A circuit-breaker or switch must be situated within easy reach of the unit and fused. Installation excess current protection should be ≤ 10 A. TR660IP 12780-0702-02 Page 7 / 37... -
Page 8: Commissioning
9.3 Device on the network If the TR660IP is connected to a network via Ethernet, the measured values and parameterization can be made via the web browser on a computer. Basic knowledge of network technology is required for the configuration. -
Page 9: Call Via Web Browser
RK = (n+1) x RL/2 (RL = resistance of two wires, n = number of sensors) 10 Operation 10.1 Program selection Depending on the application, a program with the appropriate default settings can be loaded on the TR660IP. Settings procedure on the device: push button down >2s -> programs -> select application area -> select program. - Page 10 Tip: When a program is changed, all parameters are reset to “Factory setting” of the selected program. The network settings are retained after a program change. Do not change the parameters until you have selected the correct program. *) default setting TR660IP 12780-0702-02 Page 10 / 37 www.ziehl.de...
-
Page 11: Description Of The Parameters
10.2 Description of the parameters menu parameter explanation setting Preset programs for the areas: Load predefined programs for fast and program 1. Trafo-safety, comfortable setting of the TR660IP 2. Motor-safety, 3. others… off, Setting the respectively connected sensor Pt100, type type Pt1000, sensors 1T …... - Page 12 OUT 2 current Min. temperature, Temperature output max. temperature -199,9 … 800,0 °C Zero -199,9 … 800,0 °C Fullscale 001 … 247 BUS address Bus address of the TR660IP 4800, RS485 – 9600, Modbus Baud rate Communication speed 19200, (TR660IP 57600...
-
Page 13: Code Lock / Code Reset
E (red) => sensor error (short circuit or sensor break) - Alarm state of the relays can be seen (Kx (white) => relay dropped, Kx (yellow) => relay energized) - Set alarm limit TR660IP 12780-0702-02 Page 13 / 37 www.ziehl.de... -
Page 14: Info Page (3/3)
This prevents a defect (sticking due to corrosion, …) on the connected pumps or motors. 10.5.4 Differential temperatures With the TR660IP a difference between 2 sensors can be calculated. The two next smaller measuring inputs are always used for the source sensors. For example, if you want to calculate a difference on measurement input 4, sensor 3T –... -
Page 15: Simulation
If the device is not connected to the internet, the new firmware can be downloaded from the homepage www.ziehl.com. Then the update file can firmware) and carried out via the button “manual be selected under (system ->... -
Page 16: User
TR660IP • Configuration (recent changes to the device are saved with the date / time and the username,... -
Page 17: User, Admin Forgot Your Password
Here it is directly possible to install the revised version. You can also add new programs via this function. 11.10 Modbus All devices of type TR660IP have a Modbus TCP interface. The TR660IP RS485 also has a Modbus RTU interface. For more information, see the Modbus operating manual. 11.11 Logging 11.11.1... -
Page 18: Web Interface
TR660IP • Configuration (recent changes to the device are saved with the date / time and the username,... -
Page 19: Network
The display shows ∞Ω instead of The associated sensor has a Check sensor wires and replace if the measured value sensor break in one or more wires necessary TR660IP 12780-0702-02 Page 19 / 37 www.ziehl.de... -
Page 20: Disposal
14 Disposal Disposal should be carried out properly and in an environmentally friendly manner in accordance with legal provisions. ZIEHL is registered with the EAR Foundation under WEEE no .: DE 49 698 543. TR660IP 12780-0702-02 Page 20 / 37... -
Page 21: Technical Data
≤ 1 mA Sensor current <1 s (depending on the number and type of Measuring cycle / measuring time t connected sensors) Analogue output (only TR660IP Analog) U1, U2, I1, I2 DC 0/2 … 10V Voltage output accuracy 0,3% of full scale (ab 0,1V) Temperature drift <... - Page 22 RS485 interface (only TR660IP RS485) Protocol Modbus RTU 1 … 247 Address / bus number Baud rate 4800, 9600, 19200, 57600 Parity No, odd, even 1 … 2 Stop bit Test conditions EN 61010-1 Rated impulse withstand voltage 4000 V...
-
Page 23: Housing V8
Plomben Lasche / latch for sealing Frontplatteneinsatz / front panel Kennzeichen für unten / position downward Riegel bei Wandbefestigung mit Schrauben. Riegelbohrung Ø 4,2 mm / for fixing to wall with screws, Ø 4.2 mm TR660IP 12780-0702-02 Page 23 / 37 www.ziehl.de... -
Page 24: Factory Settings Of The Programs
Delay alarm off [mm:ss] 30:00 30:00 30:00 Alarm K1 Relay function on at alarm on at alarm on at alarm Alarm locked Sensor error Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 24 / 37 www.ziehl.de... - Page 25 00:00 Alarm K4 Relay function off at alarm off at alarm on at alarm Alarm locked Sensor error 1T, 2T, 3T 1T, 2T, 3T Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 25 / 37 www.ziehl.de...
- Page 26 German German German date time Display interval [s] brightness dimming time factory settings code lock off / 504 off / 504 off / 504 Relay Sensor Firmware Version serial number Operating hours comment TR660IP 12780-0702-02 Page 26 / 37 www.ziehl.de...
- Page 27 Delay alarm off [mm:ss] 00:00 00:00 00:00 Alarm K1 Relay function on at alarm on at alarm on at alarm Alarm locked Sensor error Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 27 / 37 www.ziehl.de...
- Page 28 Delay alarm off [mm:ss] 00:00 00:00 00:00 Alarm K3 Relay function on at alarm on at alarm on at alarm Alarm locked Sensor error Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 28 / 37 www.ziehl.de...
- Page 29 Time on [hh:mm] DHCP IP-Address Sub netmask language German German German date time Display interval [s] brightness dimming time factory settings code lock off / 504 off / 504 off / 504 Relay Sensor TR660IP 12780-0702-02 Page 29 / 37 www.ziehl.de...
- Page 30 3x windings tripping winding tripping core Function main under Parameter data 1x core tripping core monitoring menu menu menu Pr1.03 Pr1.04 Pr1.05 Firmware Version serial number Operating hours comment TR660IP 12780-0702-02 Page 30 / 37 www.ziehl.de...
- Page 31 Delay alarm off [mm:ss] 00:00 00:00 00:00 Alarm K1 Relay function on at alarm off at alarm on at alarm Alarm locked Sensor error Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 31 / 37 www.ziehl.de...
- Page 32 Delay alarm off [mm:ss] 00:00 00:00 00:00 Alarm K3 Relay function on at alarm off at alarm on at alarm Alarm locked Sensor error 1T, 2T, 3T Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 32 / 37 www.ziehl.de...
- Page 33 [DD-hh] Time on [hh:mm] DHCP IP-Address Sub netmask language German German German date time Display interval [s] brightness dimming time factory settings code lock off / 504 off / 504 off / 504 TR660IP 12780-0702-02 Page 33 / 37 www.ziehl.de...
- Page 34 Fan control, pre alarm 3x Pt100 6x Pt100 Individual tripping winding, assignment Function main under Parameter data monitoring menu menu menu Pr1.06 Pr2.00 *) Pr3.00 Relay Sensor Firmware Version serial number Operating hours comment TR660IP 12780-0702-02 Page 34 / 37 www.ziehl.de...
- Page 35 Delay alarm on [mm:ss] 00:00 00:00 Delay alarm off [mm:ss] 00:00 00:00 Alarm K1 Relay function on at alarm on at alarm Alarm locked Sensor error Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 35 / 37 www.ziehl.de...
- Page 36 Delay alarm on [mm:ss] 00:00 00:00 Delay alarm off [mm:ss] 00:00 00:00 Alarm K4 Relay function on at alarm on at alarm Alarm locked Sensor error Device error ROCOT ROCOT [°C/s] temperature ROCOT change [mm:ss] TR660IP 12780-0702-02 Page 36 / 37 www.ziehl.de...
- Page 37 IP-Address Sub netmask language German German date time Display interval [s] brightness dimming time factory settings code lock off / 504 off / 504 Relay Sensor Firmware Version serial number Operating hours comment TR660IP 12780-0702-02 Page 37 / 37 www.ziehl.de...
