Temperature Relays and MINIKA®

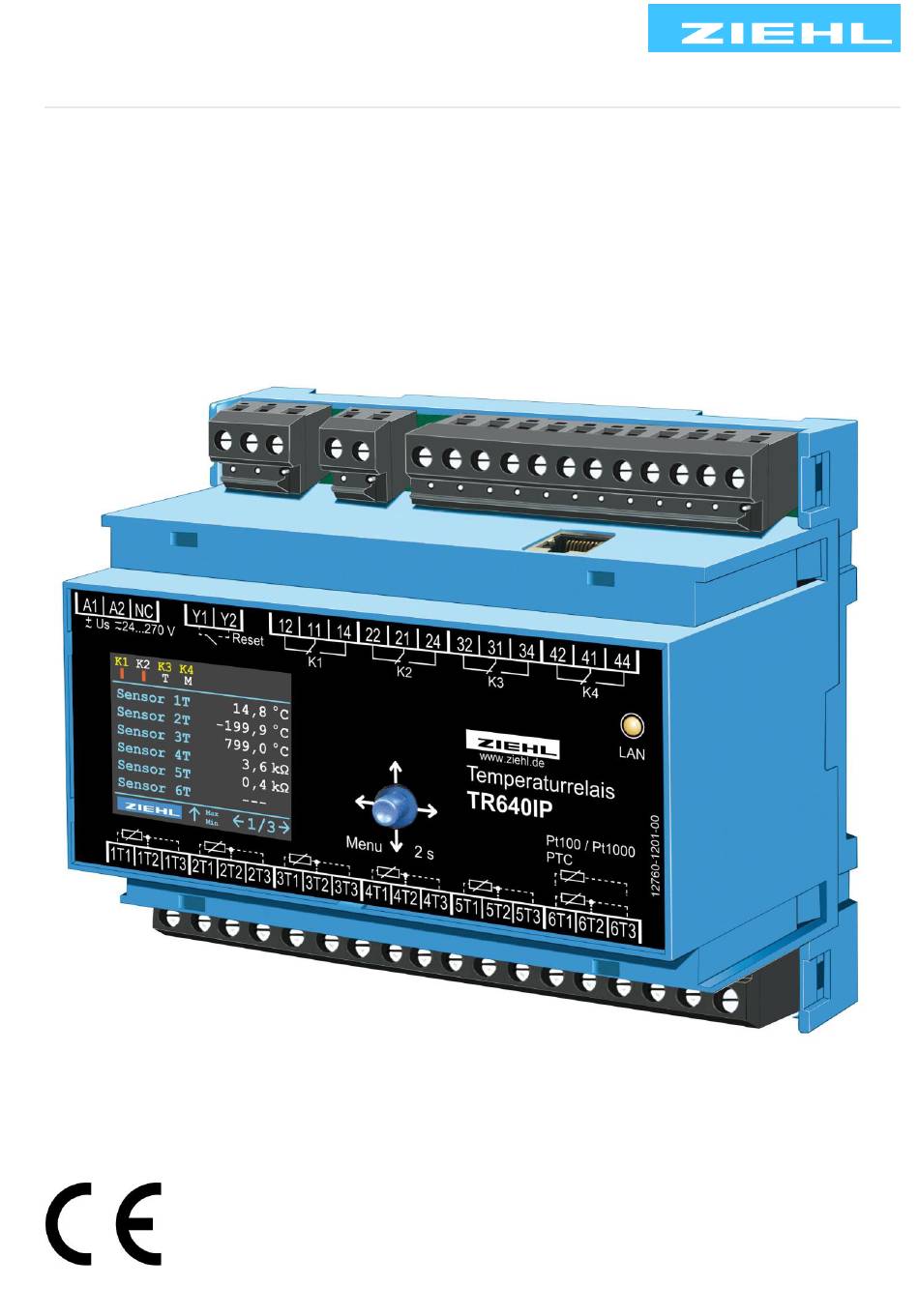

Operating Manual TR640IP
- Pt100, Pt1000, PTC temperature relay with integrated webserver and display
TR640IP
12760-0702-00
Mains Monitoring
Digital Panelmeters MINIPAN®
Switching Relays and Controls
Page 1 / 18
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Measuring Transducers
Grid- and Plant Protection
updated: 2019-09-24 / sm
from Firmware: 0-00
www.ziehl.de
www.ziehl.de
Advertisement
Table of Contents
Related Manuals for ZIEHL TR640IP
Summary of Contents for ZIEHL TR640IP
- Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de Temperature Relays and MINIKA® Mains Monitoring Digital Panelmeters MINIPAN® Switching Relays and Controls Measuring Transducers Grid- and Plant Protection updated: 2019-09-24 / sm...
-
Page 2: Table Of Contents
10.9 Temperature statistic ........................13 10.10 Program update ........................13 10.11 Modbus ............................ 13 11 Error search ............................14 12 Disposal ..............................15 13 Technical data ............................15 14 Housing V6 ............................18 TR640IP 12760-0702-00 Page 2 / 18 www.ziehl.de... -
Page 3: General Notes
The pre-set programs cover most applications. The required program can easily be selected via the menu (push button down >2s -> programs). Alternatively, the program can be selected via the web server (page configuration). TR640IP 12760-0702-00 Page 3 / 18 www.ziehl.de... -
Page 4: Application And Short Description

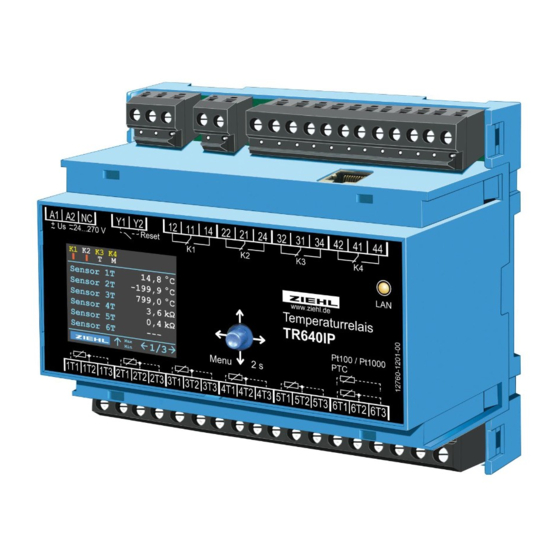

• Machinery and equipment Switchgear type TR640IP monitor up to 6 sensors simultaneously. The user can assign several limit values to the 4 output relays almost arbitrarily. The assignment sensor / relay is very variable programable. Basic settings such as the monitoring of 3 sensors to the same limit with common message (e.g. when used on motors or transformers) can be easily selected via the default configurations. -
Page 5: Connecting Diagram
300V, they must have a reinforced or double insulation suitable for the measurement All wires (sensors, reset, ethernet) that are >30m must be shielded. The shield must be earthed on the side of the device TR640IP 12760-0702-00 Page 5 / 18... -
Page 6: Installation
If cooling becomes difficult, e.g. by close proximity of devices with increased surface temperature or obstruction of the cooling air flow, the permissible ambient temperature is reduced. TR640IP 12760-0702-00 Page 6 / 18 www.ziehl.de... -
Page 7: Commissioning
9.3 Device on the network If the TR640IP is connected to a network via Ethernet, the measured values and parameterization can be made via the web browser on a computer. Basic knowledge of network technology is required for the configuration. -
Page 8: Wire Line Adjustment
RK = (n+1) x RL/2 (RL = resistance of two wires, n = number of sensors) 10 Operation 10.1 Program selection Depending on the application, a program with the appropriate default settings can be loaded on the TR640IP. Settings procedure on the device: push button down >2s -> programs -> select application area -> select program. - Page 9 Tip: When a program is changed, all parameters are reset to “Factory setting” of the selected program. The network settings are retained after a program change. Do not change the parameters until you have selected the correct program. TR640IP 12760-0702-00 Page 9 / 18...
-
Page 10: Description Of The Parameters
10.2 Description of the parameters menu parameter explanation setting Preset programs for the areas: Load predefined programs for fast and program 1.Trafo-safety, comfortable setting of the TR640IP 2. Motor-safety, 3. others… off, Setting the respectively connected sensor Pt100, type type Pt1000, sensors 1T …... -
Page 11: Code Lock / Code Reset
• Code lock is off, pin code is reset to = 504 Via web interface: • Open the page system, deactivate code lock and save it with a push on the save button. TR640IP 12760-0702-00 Page 11 / 18 www.ziehl.de... -
Page 12: Description Of The Display
The current measured value is then added to this value. If the result is greater than the set alarm value for “alarm on”, the alarm is triggered. TR640IP 12760-0702-00 Page 12 / 18... -
Page 13: Cyclic Relay Test
Here it is directly possible to install the revised version. You can also add new programs via this function. 10.11 Modbus The devices type TR640IP has a Modbus TCP interface. For more information, see the Modbus operating manual. TR640IP 12760-0702-00 Page 13 / 18 www.ziehl.de... -
Page 14: Error Search
Disconnect the device from the supply voltage, push the button up, connect the supply voltage and hold the button (approx. 5s), reset the user administration. TR640IP 12760-0702-00 Page 14 / 18 www.ziehl.de... -
Page 15: Disposal
Ie = 0,4 A Ue = 120 V DC-13 Ie = 0,2 A Ue = 240 V External inputs approx. DC 18 V / 3,5 mA Reset input Y1/Y2 Reset of locked alarms (dynamic) TR640IP 12760-0702-00 Page 15 / 18 www.ziehl.de... - Page 16 Pulse 5/50 ns, f = 5 kHz, t = 15 ms, T = 300 ms Surge immunity test IEC 61000-4-5 ±2 kV IEC 61000-4-2 ± 4 kV contact discharge, Electro static discharge immunity test ± 8 kV air discharge TR640IP 12760-0702-00 Page 16 / 18 www.ziehl.de...
- Page 17 Snap-on fastening on 35 mm mounting rail acc. EN Mounting 60 715 or with M4 screwed attachment (additional bar not included in the scope of delivery) app. 250 g Weight Subject to technical changes TR640IP 12760-0702-00 Page 17 / 18 www.ziehl.de...
-
Page 18: Housing V6
Plomben Lasche / latch for sealing Frontplatteneinsatz / front panel Kennzeichen für unten / position downward Riegel bei Wandbefestigung mit Schrauben. Riegelbohrung Ø 4,2 mm / for fixing to wall with screws, Ø 4.2 mm TR640IP 12760-0702-00 Page 18 / 18 www.ziehl.de...
