Temperature Relays and MINIKA®

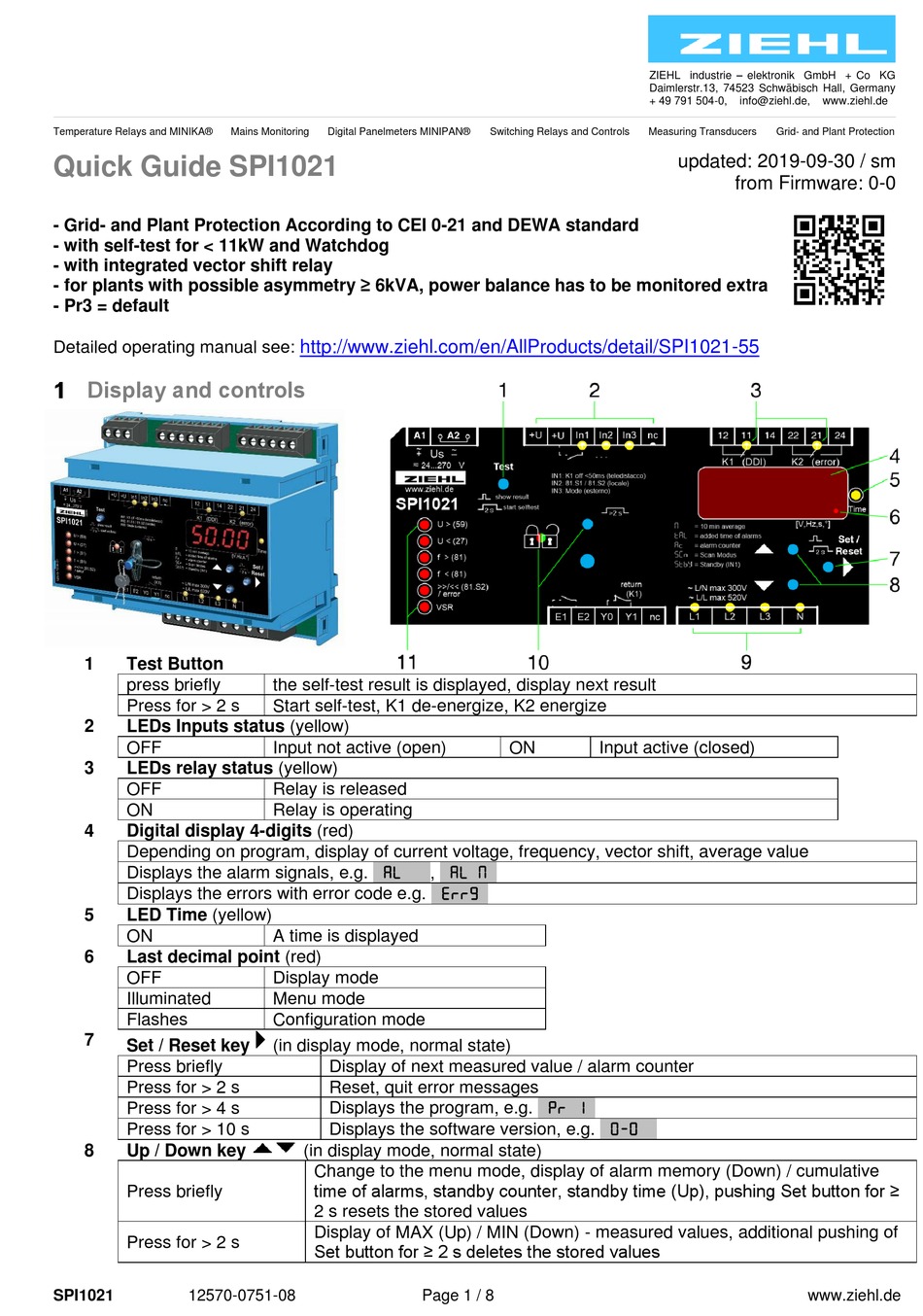

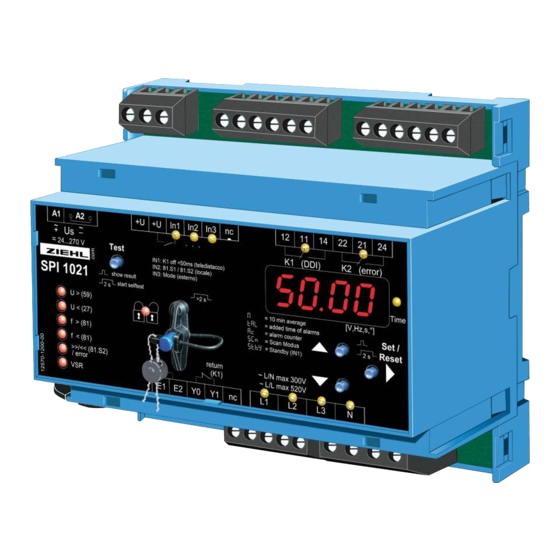

Quick Guide SPI1021
- Grid- and Plant Protection According to CEI 0-21 and DEWA standard
- with self-test for < 11kW and Watchdog
- with integrated vector shift relay
- for plants with possible asymmetry ≥ 6kVA, power balance has to be monitored extra
- Pr3 = default
Detailed operating manual see:
Display and controls
1
Test Button
press briefly
Press for > 2 s
2
LEDs Inputs status (yellow)
OFF
3
LEDs relay status (yellow)
OFF
ON
4
Digital display 4-digits (red)
Depending on program, display of current voltage, frequency, vector shift, average value
Displays the alarm signals, e.g. 8AL
Displays the errors with error code e.g.
5
LED Time (yellow)
ON
6
Last decimal point (red)
OFF
Illuminated
Flashes
7
Set / Reset key
Press briefly
Press for > 2 s
Press for > 4 s
Press for > 10 s
8
Up / Down key
Press briefly
Press for > 2 s
SPI1021
12570-0751-08
Mains Monitoring
Digital Panelmeters MINIPAN®
http://www.ziehl.com/en/AllProducts/detail/SPI1021-55
the self-test result is displayed, display next result
Start self-test, K1 de-energize, K2 energize
Input not active (open)
Relay is released
Relay is operating
A time is displayed
Menu mode
Configuration mode
(in display mode, normal state)
Display of next measured value / alarm counter
Reset, quit error messages
Displays the program, e.g. 8Pr
Displays the software version, e.g. 80-0
(in display mode, normal state)
Change to the menu mode, display of alarm memory (Down) / cumulative
time of alarms, standby counter, standby time (Up), pushing Set button for ≥
2 s resets the stored values
Display of MAX (Up) / MIN (Down) - measured values, additional pushing of
Set button for ≥ 2 s deletes the stored values
Switching Relays and Controls
ON
M8
8, 8aL
8Err98
18
Page 1 / 8
ZIEHL industrie – elektronik GmbH + Co KG
Daimlerstr.13, 74523 Schwäbisch Hall, Germany
+ 49 791 504-0,
info@ziehl.de,
Measuring Transducers
updated: 2019-09-30 / sm
from Firmware: 0-0
Input active (closed)
8
www.ziehl.de
Grid- and Plant Protection
www.ziehl.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZIEHL SPI1021
Summary of Contents for ZIEHL SPI1021
- Page 1 ZIEHL industrie – elektronik GmbH + Co KG Daimlerstr.13, 74523 Schwäbisch Hall, Germany + 49 791 504-0, info@ziehl.de, www.ziehl.de Temperature Relays and MINIKA® Mains Monitoring Digital Panelmeters MINIPAN® Switching Relays and Controls Measuring Transducers Grid- and Plant Protection updated: 2019-09-30 / sm...
- Page 2 → 8tran. → 8defi. 8mode.8 8mode.8 , no function (signale esterno) → 8IN 3. 8mode.8 closed: Definitive mode open: Transitory mode L1, L2, L3, N Phase L1, L2, L3 and neutral conductor SPI1021 12570-0751-08 Seite 2 / 8 www.ziehl.de...
- Page 3 50. 2 0 52. 5 0 52. 5 0 52. 5 0 Overfrequency 0.10 0.10 0.10 0.10 0.10 0.10 81.S1 Hysteresis dal Response time 81>S1 0.10 0.10 0.10 0.10 0.10 0.10 dof OFF-delay SPI1021 12570-0751-08 Seite 3 / 8 www.ziehl.de...
- Page 4 Serial number xxxxx xxxxx xxxxx xxxxx xxxxx xxxxx Info Operating hours xxxxx xxxxx xxxxx xxxxx xxxxx xxxxx Error counter Program → 8Pr → 8fnr Display program:8Info8 or when switching on, Display firmware version: 8Info8 SPI1021 12570-0751-08 Seite 4 / 8 www.ziehl.de...
- Page 5 Us on the side rating plate matches the mains voltage connected to the device! Assembly The device can be mounted: • Distribution panel or control panel on 35 mm rail according to EN 60715 SPI1021 12570-0751-08 Seite 5 / 8 www.ziehl.de...
- Page 6 Program Setup The suitable program must be set on the SPI1021 in accordance with the application. If the SPI1021 is sealed/locked (red LED illuminated), the sealing has to be deactivated first. Connection Limit Rated default Standard voltage setting 2x overvoltage,...
- Page 7 Code-Reset = 2 s Set when mains are switched on. (Pin = 504) Error messages: Err5 = Internal control Err7 = Contactor feedback contacts K1 Err8 = Limit error Err9 = Parameter error SPI1021 12570-0751-08 Seite 7 / 8 www.ziehl.de...
- Page 8 Control voltage Us: Rated-Connection AC/DC 24-270 V, 0/40...70 Hz, <1,8W / <6,5 VA DC: 20,4...297 V, AC: 20,4...297 V Voltage drop SPI1021 must be supplied with a UPS (>5s) Output relay: 2 x change-over contact Switching voltage Max. AC 440 V...
