Summary of Contents for Bartscher 120198

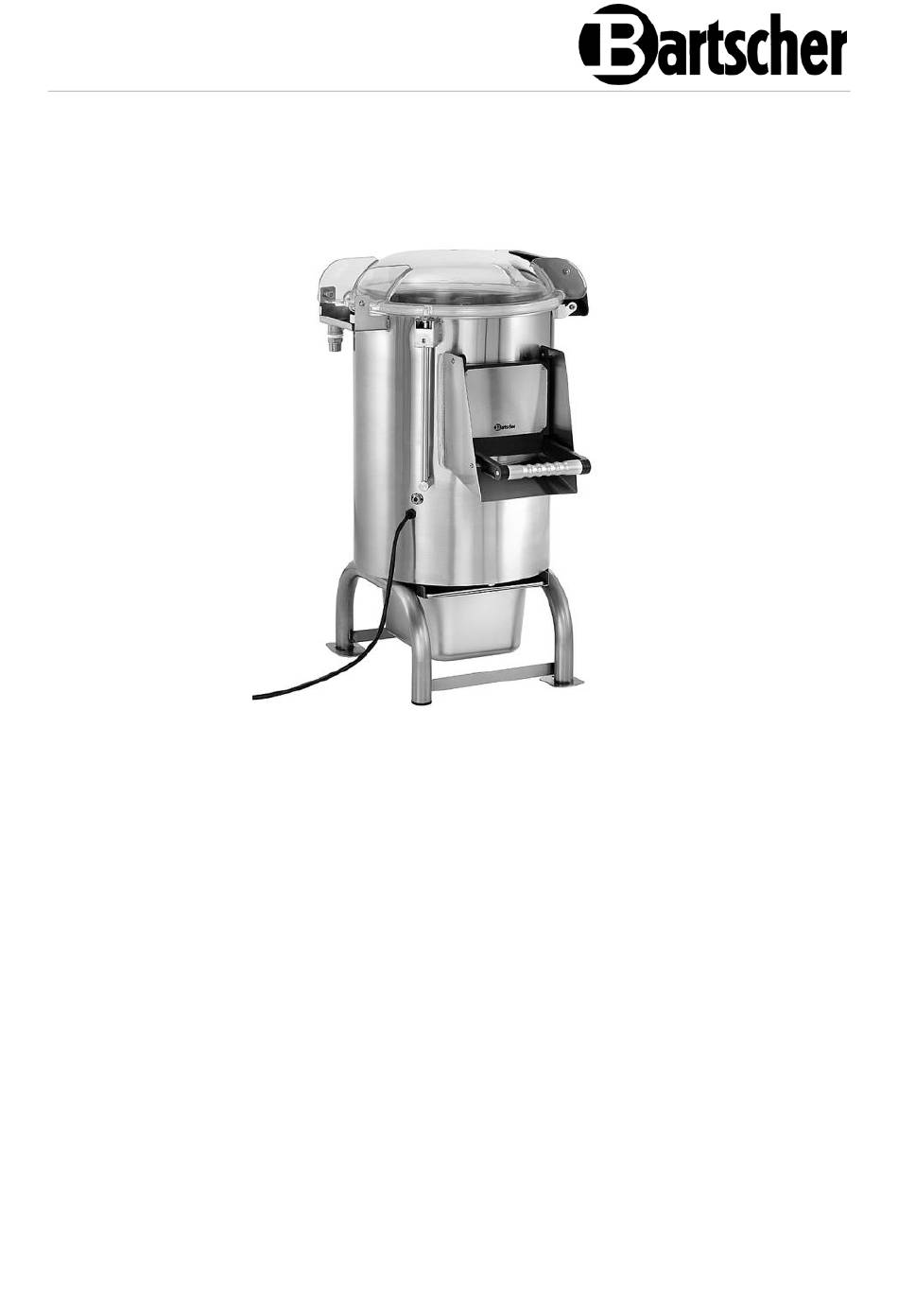

- Page 1 10KG 120198...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-01-14...
-
Page 3: Table Of Contents
Functions of the Appliance ..............11 Installation and operation ................12 Installation ....................12 Operation ....................15 Cleaning and Maintenance ................17 Safety Instructions for Cleaning ............. 17 Cleaning ....................17 Maintenance ..................18 Disposal ....................... 18 120198 1 / 20... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 20 120198... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 120198 3 / 20... - Page 6 The appliance may only be used when it is clean. • Use only original spare parts. Never attempt to repair the appliance on your own. • Do not introduce any changes in the appliance nor modify it. 4 / 20 120198...
-
Page 7: Intended Use
The appliance may only be used to perform tasks described in this instruction manual. The following is an unintended use: – Peeling other vegetables and fruit, – Removing clam shells and fish scales. 120198 5 / 20... -
Page 8: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 6 / 20 120198... -
Page 9: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 120198 7 / 20... -
Page 10: Technical Data
Technical Data Technical Data List of Components of the Appliance Fig. 1 8 / 20 120198... - Page 11 This indicator light is lit when the peeling process is stared through setting the operation time with the use of the timer. Timer The timer is used for setting the required operation time (0–5 minutes) and starting the peeling process. 120198 9 / 20...
-
Page 12: Technical Specifications
Technical Data Technical Specifications Name: Potato peeling machine 10KG 120198 Art. No.: Material: stainless steel Capacity, in kg: Max. output, in kg / hour: Maximum rotational speed, in RPMs: 1200 Speed control, levels: Time setting, from–to, in min.: 0 - 5 Water connection: 3/4"... -
Page 13: Functions Of The Appliance
Using the grater disk you may set in motion 130 kg of potatoes per hour. Functions, such as the timer and emergency switch, provide for smooth and safe operation. 120198 11 / 20... -
Page 14: Installation And Operation
Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • The appliance should be placed on surfaces that are: – even, with sufficient bearing capacity, resistant to water, dry and resistant to high temperatures; 12 / 20 120198... - Page 15 The power cord should be laid in a way preventing anyone from threading on it or tripping against it. • Check if the grounding system operates correctly. • The appliance is equipped with a power cord with plug. Connect the appliance to a single grounded wall socket with a disconnector. 120198 13 / 20...
- Page 16 2. Use the clamp band to fix the suitable drain hose to the collection container drain. 3. Introduce the other end of the hose to the drain system. The drain hose and clamp bands are not part of the delivery. Fig. 3 14 / 20 120198...
-
Page 17: Operation
8. Plug the appliance into a suitable single socket. The white ON/OFF indicator light lights up. (20). 9. Start the peeling process by setting the timer (22) to the required time in the range of 0–5 minutes. 120198 15 / 20... - Page 18 The appliance is equipped with the collection container with sieve. Before operating the appliance, always install it under the appliance. Peeling residues are collected in this container, as well as water used during peeling process. NOTE! Empty the collection container with sieve regularly. 16 / 20 120198...
-
Page 19: Cleaning And Maintenance
8. Finally dry all cleaned parts and surfaces with soft cloth. 9. Empty the collection container with sieve and clean it with warm water, using a cloth or a sponge. Dry the container with a soft, dry cloth. 120198 17 / 20... -
Page 20: Maintenance
You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 18 / 20 120198...
