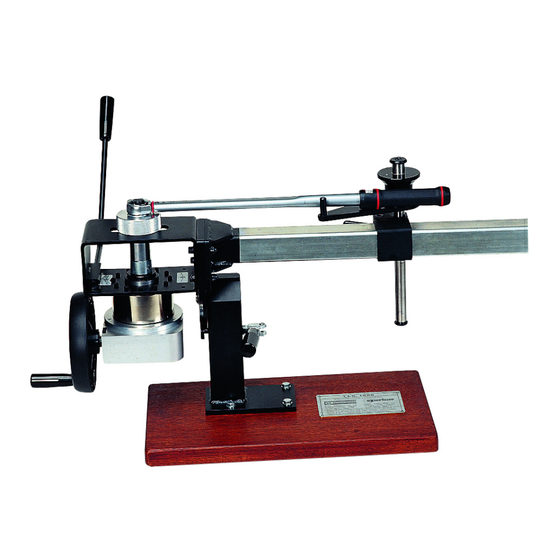

Torque wrench loader with 90 rotation
Hide thumbs

Advertisement

Table of Contents

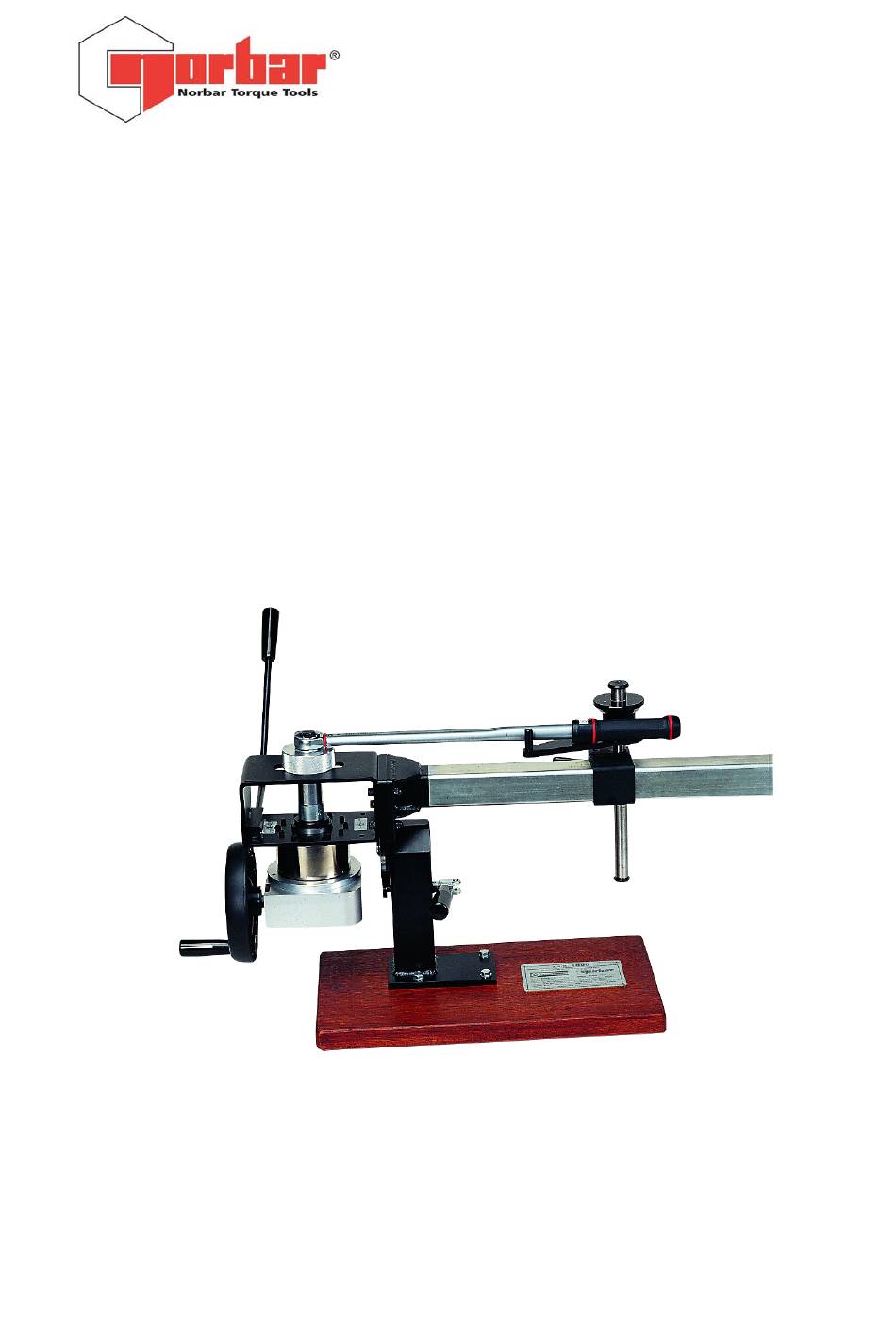

ISO 1500 TORQUE WRENCH LOADER
WITH 90° ROTATION
OPERATORS HANDBOOK (PART NO. 34126)
ISSUE 4
Original Instructions
NORBAR TORQUE TOOLS LTD, Beaumont Road, Banbury, Oxfordshire, OX16 1XJ, UNITED KINGDOM
Tel : + 44 (0) 1295 270333
Fax : + 44 (0) 1295 753643
www.norbar.com
enquiry@norbar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISO 1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for norbar ISO 1500

Summary of Contents for norbar ISO 1500

  • Page 1 WITH 90° ROTATION OPERATORS HANDBOOK (PART NO. 34126) ISSUE 4 Original Instructions NORBAR TORQUE TOOLS LTD, Beaumont Road, Banbury, Oxfordshire, OX16 1XJ, UNITED KINGDOM Tel : + 44 (0) 1295 270333 Fax : + 44 (0) 1295 753643 www.norbar.com enquiry@norbar.com...
  • Page 3 ISO 1500 OPERATORS HANDBOOK PAGE 1 OF 6 ISSUE 4 JANUARY 2010 CONTENTS PAGE Introduction Features and Functions Installation Operating Instructions Maintenance Specification...
  • Page 4 JANUARY 2010 INTRODUCTION The Norbar ISO 1500 Torque Wrench Loader is designed to test torque wrenches up to a maximum capacity of 1500 N.m or 1100 lbf.ft. With 90° rotation wrenches can be tested in both the horizontal and vertical planes, so allowing for a more accurate simulation of how the tool is actually used in the field.
  • Page 5 ISO 1500 OPERATORS HANDBOOK PAGE 3 OF 6 ISSUE 4 JANUARY 2010 FEATURES AND FUNCTIONS • Allows torque wrenches to be calibrated or tested in accordance with ISO 6789:2003, BS EN 26789:2003 and American military standard GGG-W-686. • Allows vertical & horizontal torque wrench testing.
  • Page 6 Check the ISO 1500 is clamped in position. The loader is ready for vertical use. Always ensure the “ORIENTATION RELEASE HANDLE” is locked before loading. When rotating the ISO 1500 ensure the transducer lead is not caught up in the mechanism.
  • Page 7 ISO 1500 OPERATORS HANDBOOK PAGE 5 OF 6 ISSUE 4 JANUARY 2010 REACTION PLATE FOR SMALL TORQUE WRENCHES (option): _____________________________ To use small torque wrenches a smaller reaction plate may be required. Fix using M8 socket cap screws provided with reaction plate.
  • Page 8 ISSUE 4 JANUARY 2010 MAINTENANCE The ISO 1500 is engineered for a long maintenance free life. Under normal operation maintenance is not required. When cleaned do not use abrasive or solvent based cleaners. For maintenance and recalibration of the instrument and transducer refer to their handbooks.
