OPERATOR'S MANUAL
®
PNEUTORQUE
PTM, PTME, TRUKTORQUE
SERIES
STALL TOOLS
Part Number 34321 | Issue 5 | Original Instructions (English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNEUTORQUE PTM and is the answer not in the manual?

Questions and answers

Summary of Contents for norbar PNEUTORQUE PTM

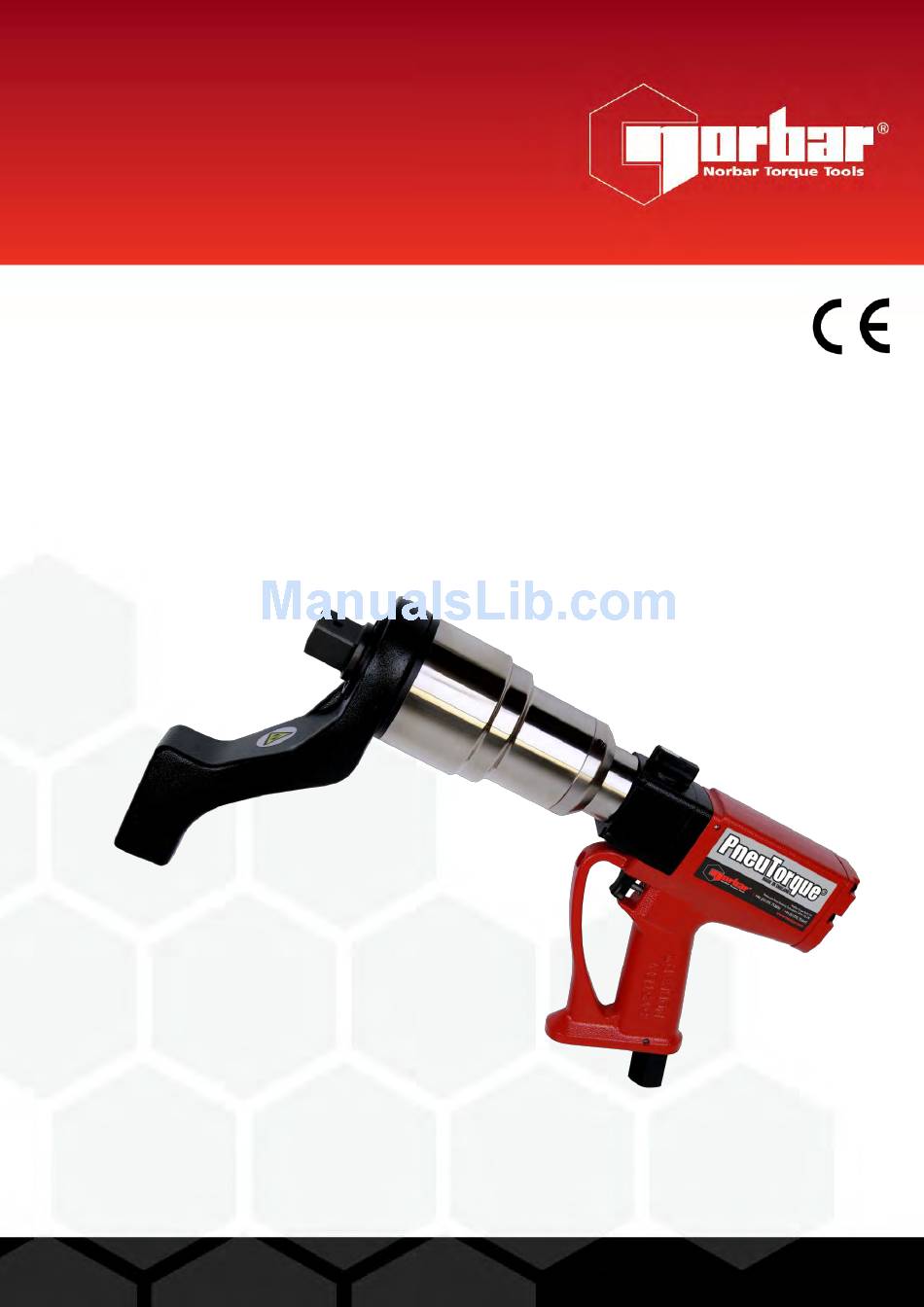

  • Page 1 OPERATOR’S MANUAL ® PNEUTORQUE ™ PTM, PTME, TRUKTORQUE SERIES STALL TOOLS Part Number 34321 | Issue 5 | Original Instructions (English)
  • Page 2: Table Of Contents

    CONTENTS Part Numbers Covered By This Manual Safety Introduction Parts Included Accessories Features and Functions Set Up Instructions ® Pneutorque Hangar Connecting Air Supply Air Lubrication Torque Reaction Clockwise/Counter Clockwise Operation Setting Torque to Tighten Fastener Operating Instructions Tightening Releasing Maintenance Air Lubrication Gearbox...
  • Page 3: Part Numbers Covered By This Manual

    PART NUMBERS COVERED BY THIS MANUAL ® ™ This manual covers the setup and use of Norbar Pneutorque PTM, PTME, TrukTorque stall tools. Part Number Model Direction Maximum Torque 18100.F06 PTM-52-500-F Forward (Clockwise) only 500 N·m 18100.B06 PTM-52-500-B Bi-directional 18101.F06...
  • Page 4: Safety

    SAFETY IMPORTANT: DO NOT OPERATE THE TOOL BEFORE READING THESE INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY OR DAMAGE TO THE TOOL. This tool is intended for use with threaded fasteners. The use of proper ear protectors is recommended. Do not use these tools in potentially explosive atmosphere as they contain grease, which may cause an explosion hazard in the presence of pure oxygen.
  • Page 5: Introduction

    INTRODUCTION PTM, PTME & TrukTorque ™ tools are air driven power tools designed for applying torque ® The Pneutorque to threaded fasteners. There are models to cover torque capacities of 500 N·m to 2000 N·m. The tools use an external air pressure regulator (included in a Lubro Control Unit) to set the air pressure that controls the stall torque.
  • Page 6: Accessories

    Accessories Part Number Description ™ PTM-52 PTM-72 PTM-92 PTM-119 PTME-72 TrukTorque Air Coupling 28933 28933 28933 28933 28933 28933 Socket for Hose Lubro Control Unit 16074 16074 16074 16074 16074 16074 3/4" Drive Square 18544 18779 (fixing screw) (25351.30) (25352.45) 1”...
  • Page 7: Features And Functions

    FEATURES AND FUNCTIONS Twin Motor The tools use two motors; one to quickly run-down the fastener and the other to achieve final torque. Trigger The trigger controls the flow of air. The more the trigger is pressed the more air flows into the tool. This allows for slow positioning of socket and reaction bar.
  • Page 8: Set Up Instructions

    SET UP INSTRUCTIONS ® The Pneutorque set up covers the following items: ® 1. Pneutorque Hanger 2. Connecting Air Supply 3. Air Lubrication 4. Torque Reaction 5. Clockwise / Counter Clockwise Operation 6. Setting torque to tighten fastener Please complete the set up in the order shown. ®...
  • Page 9: Air Lubrication

    Air Lubrication The tool must be used with oil lubrication in the supplied air. This is achieved by using a Lubro Control Unit (not supplied). Set the air lubrication: Fill Lubro Control Unit with hydraulic oil (Shell Tellus S2M 32 or equivalent good quality hydraulic oil).
  • Page 10 It is essential the reaction bar rests squarely against a solid object or surface adjacent to the fastener to be tightened. The contact area must be within the shaded area of Figure 2, with the contact area as large as possible.
  • Page 11 ™ Reaction Bars (TrukTorque & Nose Tool ØD ØE Extension for Truck & Bus Wheels) ™ TrukTorque 3/4" 132.5 1000 N·m 1” ™ TrukTorque 132.5 1” 1350 N·m ® When the Pneutorque is in operation the reaction bar rotates in the opposite direction to the output drive square and must be allowed to rest squarely against a solid object or surface adjacent to the fastener to be tightened.
  • Page 12: Clockwise/Counter Clockwise Operation

    Clockwise/Counter-Clockwise Operation Set clockwise / counter-clockwise as required. NOTE: This setting only applies to bi-directional tools. FIGURE 4(a) – Clockwise FIGURE 4(b) – Counter - Clockwise (Arrow towards drive square (Arrow away from drive square) WARNING: FAILURE TO FULLY ENGAGE THE CLOCKWISE/COUNTER-CLOCKWISE OPERATION SELECTOR WILL RESULT IN DAMAGE TO THIS PART OF THE GEARBOX.
  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS WARNING: KEEP HANDS CLEAR OF THE REACTION BAR. WARNING: WHEN USING THIS TOOL IT MUST BE SUPPORTED AT ALL TIMES IN ORDER TO PREVENT UNEXPECTED RELEASE IN THE EVENT OF FASTENER OR COMPONENT FAILURE. Tightening ® Fit Pneutorque with the correct size impact or high quality socket to suit fastener.
  • Page 14: Releasing

    Releasing NOTE: Only for bi-directional tools. ® Fit the Pneutorque with the correct size impact or high quality socket to suit the fastener to be released. TIP: For added safety it is recommended to secure the socket to the square drive. This is often achieved using a pin and O ring, see socket manufacturer for guidance.
  • Page 15: Maintenance

    Any other maintenance or repairs should be carried out by Norbar or a Norbar distributor. Maintenance intervals will depend on the tool usage and the environment in which it is being used. The maximum recommended maintenance and recalibration interval is 12 months.
  • Page 16: Drive Square

    Fit new screw and tighten between 4 N·m to 5 N·m (for PTM52) or 8 N·m to 9 N·m (for PTM72/92/119) or insert new spring pin. Connect air supply. TIP: If the drive square fails continually then seek advice from Norbar or a Norbar distributor. Calibration ® To maintain the Pneutorque accuracy it is recommended the tool is recalibrated at least every 12 months.
  • Page 17: Specifications

    SPECIFICATIONS Torque Part Number Tool Speed Minimum Maximum 18100.*** 100 N·m (74 lbf·ft) 500 N·m (370 lbf·ft) 224 rev/min 18101.*** 160 N·m (118 lbf·ft) 800 N·m (590 lbf·ft) 148 rev/min 18102.*** / 18140.*** / 200 N·m (147 lbf·ft) 1000 N·m (738 lbf·ft) 122 rev/min 18162.*** 18103.*** / 18163.***...
  • Page 18 Repeatability: ± 5% Air Supply: Maximum pressure 6.3 bar (For maximum output speed). Lubrication: Shell Tellus S2M 32 recommended for the Lubro Control Unit. Temperature Range: 0°C to +50°C (operating). -20°C to +60°C (storage). Operating Humidity: 85% Relative Humidity @30°C maximum. Handle Vibration: <...
  • Page 20: Trouble Shooting

    TROUBLE SHOOTING The following is only a guide, for more complex faults please contact Norbar or a Norbar distributor. Problem Likely Solutions Check air supply is functioning and connected Check air pressure setting (at least 1 bar) Tool output does not rotate when...
  • Page 21 Tel + 61 (0)8 8292 9777 Tel + 86 21 6145 0368 Email enquiry@norbar.com.au Email sales@norbar.com.cn NORBAR TORQUE TOOLS INC NORBAR TORQUE TOOLS INDIA PVT. LTD 36400 Biltmore Place, Willoughby, Plot No A-168, Khairne Industrial Area, Ohio, 44094 Thane Belapur Road, Mahape, Navi Mumbai –...
