Instructions – Parts List

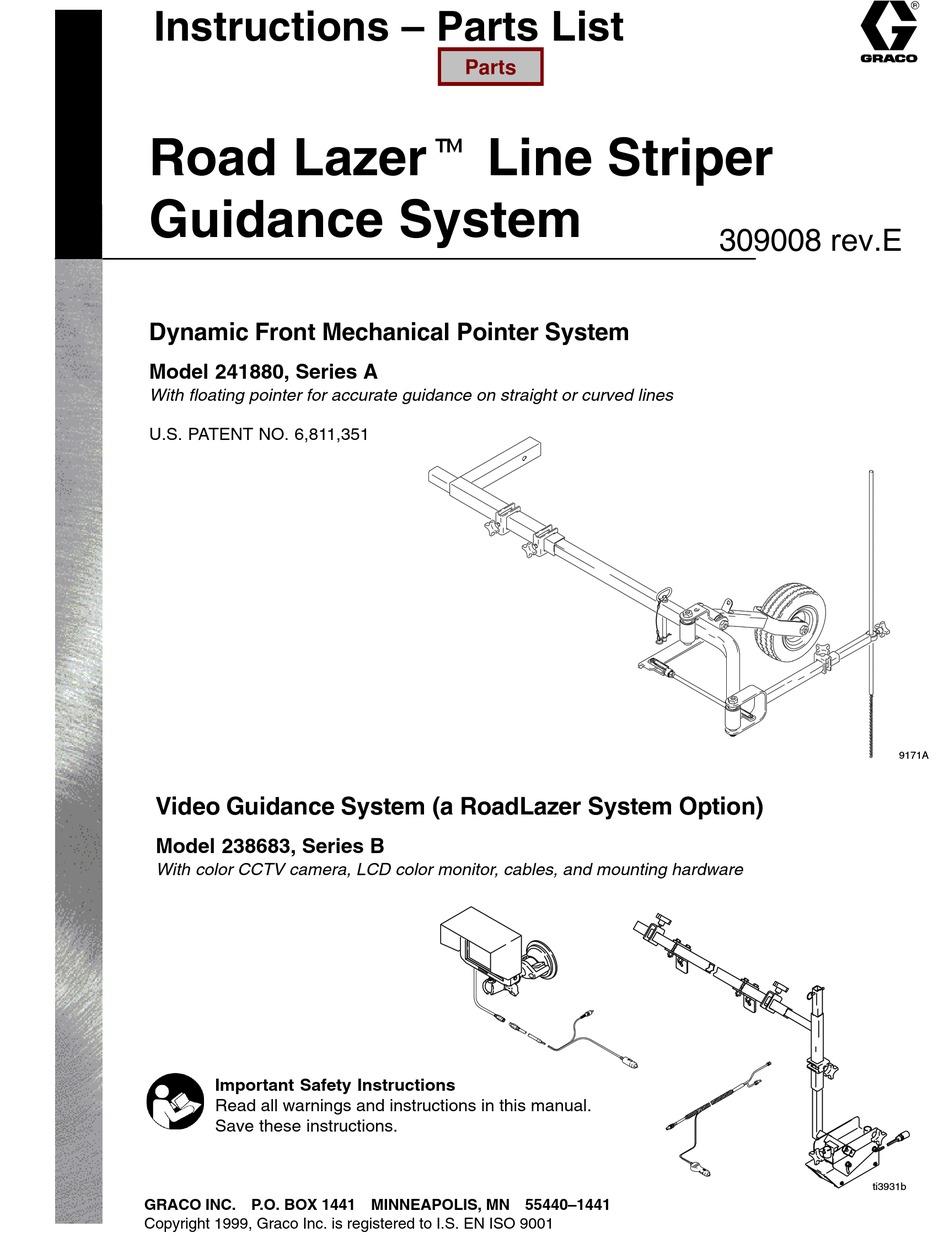

Road Lazert Line Striper
Guidance System
Dynamic Front Mechanical Pointer System
Model 241880, Series A
With floating pointer for accurate guidance on straight or curved lines
U.S. PATENT NO. 6,811,351
Video Guidance System (a RoadLazer System Option)
Model 238683, Series B
With color CCTV camera, LCD color monitor, cables, and mounting hardware
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001
Parts
309008 rev.E
ti3931b
9171A
Advertisement
Table of Contents
Related Manuals for Graco Road Lazer 241880
Summary of Contents for Graco Road Lazer 241880
- Page 1 With color CCTV camera, LCD color monitor, cables, and mounting hardware Important Safety Instructions Read all warnings and instructions in this manual. Save these instructions. ti3931b GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
D Use the equipment only for its intended purpose. If you are not sure, call your distributor. D Do not use video monitor as a TV while driving. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories. D Check equipment daily. Repair or replace worn or damaged parts immediately. -
Page 3: Installation Video Guidance System
Installation — Video Guidance System NOTES D This manual makes references to other components in the RoadLazer System. See RoadLazer System manual 308611 for details about those components. D This manual covers two systems for guiding the RoadLazer striper. Each system can be operated by itself to guide the vehicle;... - Page 4 Installation — Video Guidance System Install Video Monitor 1. Mount video monitor (111) in truck cab in a position CAUTION that is easy to view. Mount it level with dashboard but not obstructing forward vision. Monitor has Observe the following to prevent damage to the mounting bracket or use supplied mounting video monitor: bracket (116).
-
Page 5: Front Mechanical Pointer System
Install Bumper Hitch Receiver (not supplied by Graco) WARNING INJURY OR EQUIPMENT DAMAGE HAZARD D Front receiver mount (not supplied by Graco) must have minimum rated capacity of 200 lb (91 kg) tongue weight. D Read all of this instruction manual before you use this equipment. -
Page 6: System Setup
System Setup Adjust Pointer Fig. 6 1. Adjust length of crossbar frame (2) so pointer is 3. Use the following table to determine proper pointer approximately in line with RoadLazer striping gun arm length (d in Fig. 6). Use the Mounting when wheel arm and pointer arm are parallel to Distance value from the table that is nearest your each other. - Page 7 System Setup Align Pointer (First-Time Installation) Formula for d is Make sure there 1. Make sure RoadLazer striping gun boom arm (A) d = D x (0.165). is enough is fully extended to end of main beam (C), and distance for pointer arm pivot front pointer system crossbar frame (2) is wheel in stowed...
- Page 8 System Setup Reference numbers in parentheses in the text refer to Correct Pointer Alignment numbers in Parts section of this manual. Align Camera 1. See Fig. 9. Loosen clamps (56) securing video camera bracket, and slide camera extension arm out until camera is centered directly over reference line.
- Page 9 System Setup 2. If adjustment knob (C) runs out of adjustment, see Fig. 12: Loosen camera bolts (218), shift camera in direction needed to obtain adjustment, and tighten bolts. 9236A Fig. 10 Fine-Tune Video Angle Make sure you have performed the steps in Focus Camera and Align Camera before you make these final video angle adjustments.
-
Page 10: Operation
Operation For RoadLazer operating instructions, see RoadLazer System manual 308611. Painting Using Front Mechanical Pointer System without Video Guidance System requires that you drive with your head out of driver’s-side window to align pointer. Using the two systems together improves ease of painting and accuracy of lines. - Page 11 Operation Painting with Delay Feature See Programmable Skipline Controller instruction manual 308616. 1. Align truck and camera with known straight line. 5. Enter figure into system delay menu. System is ready to start striping. 2. Lower gun carriage to ground, and align striping guns with line.
-
Page 12: Maintenance
Maintenance Front Mechanical Pointer System Maintenance Fig. 16 NOTE: Wheel and pivot points use same nuts, washers, spacers, seals, bearings, and bolts. For wheel only, bearings and seals are assembled internally and not called out as separate parts on page 18. Lubricate Wheel Axle Grease axle bolt (13) monthly. -
Page 13: Troubleshooting
Troubleshooting PROBLEM CAUSE SOLUTION No picture on video monitor No power to camera or monitor Check connections of power cords. screen Check fuse in lighter plug of camera power cable. Check truck fuse. No video signal Check video connections. Repair or replace cable. - Page 14 Notes 309008...
-
Page 15: Video Camera And Bracket Assembly
Parts — Video Camera and Bracket Assembly Video Camera and Bracket Assembly, Model 238683 Ref. Part No. Description Qty. 191692 BRACKET, support, horizontal 191691 BRACKET, MOUNT 191694 BAR, lock 105431 CAPSCREW, hex hd, 3/8–16 x 2.25 in. 101566 LOCKNUT, 3/8–16 224071 CLAMP, extension 191693... -
Page 16: Video Camera And Mounting Assembly
Parts — Video Camera and Mounting Assembly Video Camera and Mounting Assembly, Model 238947 06296 309008... - Page 17 Parts — Video Camera and Mounting Assembly Video Camera and Mounting Assembly, Model 238947 Ref. Part No. Description Qty. 191862 BRACKET, pivot, camera 191861 BRACKET, slide, camera 112380 SCREW, mach, 1/2 in. 109466 LOCKNUT 101566 LOCKNUT, 3/8–16 100731 WASHER 191668 SHAFT, camera pivot 181795 JAW, clamp...
-
Page 18: Front Front Mechanical Pointer System
Parts — Front Mechanical Pointer System RoadLazer Front Mechanical Pointer System, Model 241333 9170A 309008... - Page 19 Parts — Front Mechanical Pointer System RoadLazer Front Mechanical Pointer System, Model 241333 Ref. Part No. Description Qty. 238815 BRACKET, mounting 241533 FRAME, crossbar 195196 YOKE, wheel arm 241850 ARM, wheel 241849 ARM, pointer 241851 ARM, pointer extension 195197 ROD, threaded 100111 115472 PIN, clevis...
-
Page 20: Video Monitor Assembly
Parts — Video Monitor Assembly Video Monitor Assembly, Model 238683 Ref. Part No. Description Qty. 115514 MONITOR, video (includes 111a) 1 111a POWER/VIDEO CABLE, monitor 1 15H849 BRACKET, cover, monitor 111a ti3933b 309008... -
Page 21: Technical Data
Technical Data Video Guidance System Electrical requirements Sender input ..........6 to 12 V D.C. -
Page 22: Graco Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
