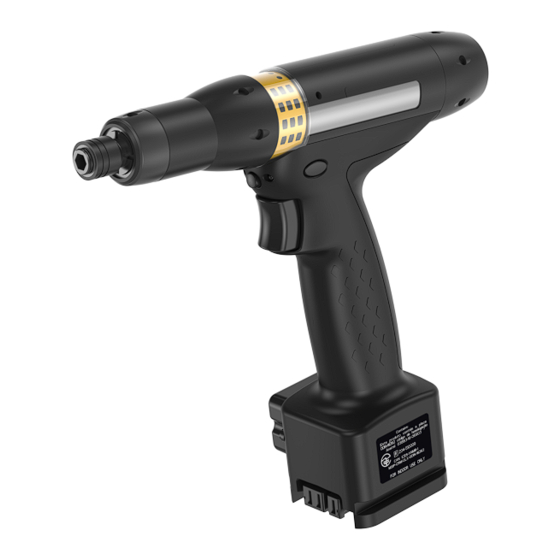

Battery-powered nutrunner

Advertisement

Quick Links

Printed Matter No. 9839 1892 01
Publication Date 2020-07-17
Valid from Serial No. A1820001
ETP STB34-12-I06
(4-12 Nm)
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
ETP STB34-12-I06
8433302395
WARNING
Battery-Powered Nutrunner
Product Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETP STB34-12-I06 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlas Copco ETP STB34-12-I06

  • Page 1 ETP STB34-12-I06 Printed Matter No. 9839 1892 01 Battery-Powered Nutrunner Publication Date 2020-07-17 Valid from Serial No. A1820001 Product Instructions ETP STB34-12-I06 8433302395 (4-12 Nm) WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Service ........................ 9 Preventing ESD Problems ................ 9 Maintenance Instructions.................. 9 Service Recommendations.............. 9 Preventive Maintenance ................ 9 Lubrication Instructions.................. 9 Lubricating Guide .................. 9 Lubrication ................... 10 Troubleshooting.................... 11 Overheated Tool ..................... 11 Recycling ....................... 12 Environmental Regulations................ 12 Recycling Instruction.................. 12 © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 3: Product Information

    ■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions.
  • Page 4: Servaid

    Please consult the Atlas Copco website for more information www.atlascopco.com/sds. Product Safety Video for Nutrunners Learn more about safety features on Atlas Copco nutrunners and what measures the operator has to take for a safe operation. Click the link or scan the QR code below to view the video: https://www.youtube.com/watch?v=FAh6yttvUpw...
  • Page 5: Service Overview

    If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guide- lines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 6: Installation

    Attach the battery to the tool and make sure that it is fastened correctly. The battery can be attached pointing forward or backward, to get the best accessibility and balance. To remove the battery, press the button on the battery and push it out. © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 7: Operation

    Indicates the connection to the paired controller or software system. Batch Indicates when Batch done. Battery Indicates battery status (flashing light = low battery, constant light = empty battery). Alarm A failure or event is detected. © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 8: Tightening

    The soft start function facilitates the screwhead and thread to reach the snug level. The duration of the soft start is adjustable. For further information about tightening, see Power Focus 6000 Configuration manual. © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 9: Service

    For further information, see instructions for multicharger, 4211542485. Lubrication Instructions Lubricating Guide Brand Cable nut Gears Molycote BR2 Plus Litium grease No. 3020 Brand Angle gears General purpose Molycote Longterm 2 plus Almagard LE 3751 © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 10: Lubrication

    Lubricate gears and clutch with grease containing molybdenum disulphide (e.g. Molykote BR2 Plus). Lu- bricate o-rings and threaded connections with grease before assembling. For more information, see Spare Parts section in ServAid - https://servaid.atlascopco.com. © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 11: Troubleshooting

    The tool temperature can be influenced by the following parameters: ■ short cycle time ■ torque above rated ■ too low speed ■ very high prevailing torque ■ very soft joints ■ ambient temperature © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 12: Recycling

    Part Remarks Recycle as Front part Metal, steel Planetary gear Metal, steel Motor module (with trans- Electronic ducer, speaker module and led flex card) Metal, steel Trigger button Metal, steel © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 13 Electronics module Electronic Handle body Plastics, other, PA Battery Battery, Li-Ion Battery connector Plastics, other, PA Back up battery Battery, Li-Ion Radio module Electronic Plastics, other, PA RBU board assembly Electronic © Atlas Copco Industrial Technique AB - 9839 1892 01...
  • Page 16 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
