Summary of Contents for Show Tec Shogun Pro-2000

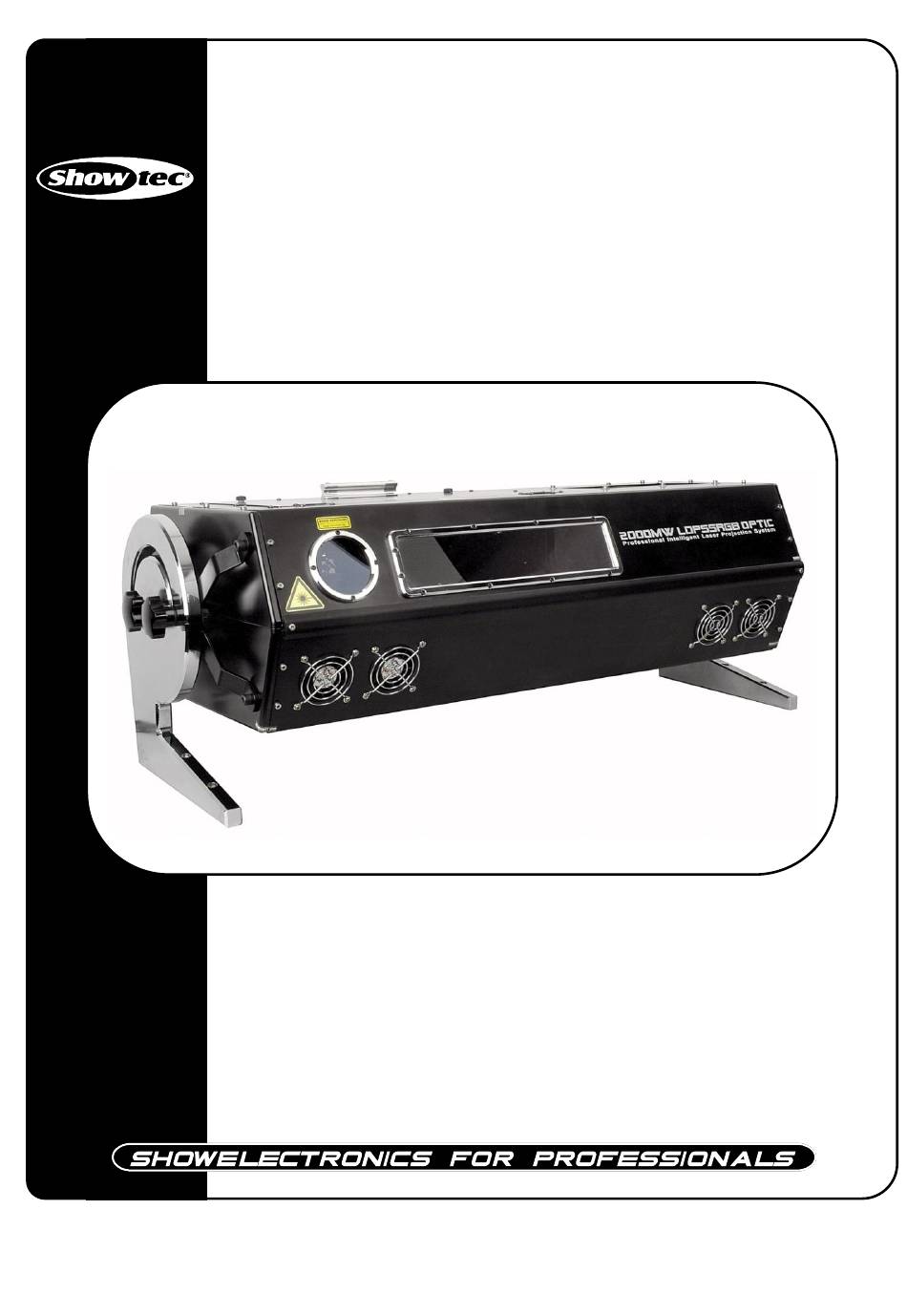

- Page 1 Shogun Pro-2000 ORDERCODE 32050...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Shogun Pro-2000 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Shogun Pro-2000™ Product Guide Warning..…...................…………………………………….…………..…… Unpacking Instructions……………………………………………………………………………………………….… Contact Us…………………………………………………………………………………………………………….….. Safety-instructions……………………………………………………………………………………………………….. Operating Determinations…………………………………………………………………………………...…. Laser safety for a Class 4 Laser Product……………………………………………………………………..…. Rigging………………………………………………………………………………………………………....…... Shogun Pro 2000 Control………………………………………………………………………………………..…….. Description..…................……….…………………………………..……… Features and Overview ………………………………...….……………….………….…………………..……. Backside…………………………………………………...…...….……………….…………………...….…..…… Set Up and Operation..............……..………..…………………….….…………. Warm-up times and storage temperature........……………..…………………….………….. -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Safety-Instructions
CAUTION ! EYEDAMAGES !!! NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE !!! NEVER PROJECT A SINGLE LASER POINT !!! CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to:... - Page 6 Do not operate the fixture if any covers are open, missing or damaged in any way. Only use device indoor, avoid contact with water or other liquids. Only operate the device after having familiarized with its functions. Only use AC power that complies with local building and electrical codes and has both overload and ground-fault (earth fault) protection.
- Page 7 Compliance Statement Your Shogun Laser has been designed to comply with FDA and IEC Standards for it classification. The Shogun is a Class IIIB laser product. Laser Safety and Compliance Information The Shogun is manufactured to comply with the IEC 60825-1 and in accordance with U.S. Food and Drug Administrations (FDA) Standards Listed under FDA Document 21 CFR 1040 and subsequent laser notices.
-
Page 8: Operating Determinations
OPERATING DETERMINATIONS • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0.8 meter. •... - Page 9 Placing the Laser on a horizontal surface The Shogun Pro-2000 can be placed on a level horizontal surface resting on its rubber feet. 1. Make sure that the surface is level, stable and capable of supporting at least 10 times the weight of the machine.
-
Page 10: Shogun Pro 2000 Control
Shogun Pro 2000 Control By far the most power and professional cost effective laser control system yet developed. Shogun Pro 2000 Flex Control surely leads the edge of technology down to the smallest of details. Shogun Pro 2000 Flex Control was designed to enable the powerful and dynamic control with an architecture that does not require a rocket scientist to understand. -
Page 11: Description
Description of the device Features The Showtec Shogun Pro-2000 is a laser effect with a high output and great effects. • 800 mW Red laser Diode (635nm) • 1000 mW Green laser DPSS (532nm) • 200 mW Blue laser DPSS (473nm) •... -
Page 12: Backside
Backside Fig. 2 4) LCD Display / menu 6) - / Prev 7) + / Next Enter ILDA connector Security Dongle ILDA connector USB Connection LED Indicator SmartMedia Card 128MB DMX signal connector (IN) DMX signal connector (OUT) 17) Key System 18) IEC Power Connector 19) Power ON/OFF Remote Interlock Connector: Use a DB9 connector to connect to the Remote Interlock, which stops the... -
Page 13: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Remove the protection cover from the front of the laser. When the laser is not in use, please replace the cover to protect the laser. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. - Page 14 Operating with USB for the first time: 1. Load the CypherLiteUSB CD-ROM into your PC. 2. Create a new folder on your desktop and rename it to “Cypher” Copy the files from the CD-ROM into that folder. 3. Connect the USB cable from your PC to the Projector. 4.
- Page 15 9. When the program opens, it will have an empty workspace. 10. In the upper left hand corner click “File” then “Open Workspace” or press “Ctr+O” and select the workspace you wish to use. Then click “Upload” at the top of the CypherLiteUSB interface.
-
Page 16: Ilda Db-25 Operation
ILDA Test Pattern ILDA DB-25 Operation For ILDA operation you must have a Pangolin LD2000 card or another ILDA standard laser show control system. The connection from the PC to the Laser projector is made with a DB-25 cable. When connecting for the first time make sure that the cable is “straight through”... -
Page 17: Dmx Channels Chart
DMX Control Control features Your projector’s DMX feature is capable of being controlled from a DMX-512 controller. The projector utilizes the effects on your SmartMedia Card. To learn more about CypherLiteUSB, please refer to the CypherLiteUSB Manual on the Software Disc. Connecting your projector to a DMX-512 Controller DMX-512 uses a three-pin cable similar to XLR or Microphone leads. - Page 18 User Interface Buttons...
-
Page 19: Auto Play
Auto Play Using the CypherLiteUSB software you can also set the unit up to run a cue as soon as it powers up. This may be useful in settings where the projector is used for advertisement or to project logos and does not require an operator. -
Page 20: Cleaning The Laseroptics
Cleaning the Laser Optics Maintenance The Showtec Shogun Pro-2000 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Carefully wipe both mirrors clean with glass cleaner and a soft cloth. -
Page 21: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. -
Page 22: Product Specifications
Product Specification Model: Showtec Shogun Pro-2000 Voltage: 240V-50Hz (CE) Fuse: 5A / 250V Dimensions: 970x400x355mm (LxWxH) Weight: 39,6 kg Operation and Programming Signal input 3-pin XLR male Signal output 3-pin XLR female DMX-control via standard DMX-controller Laser 800 mW Red laser Diode (635nm)
