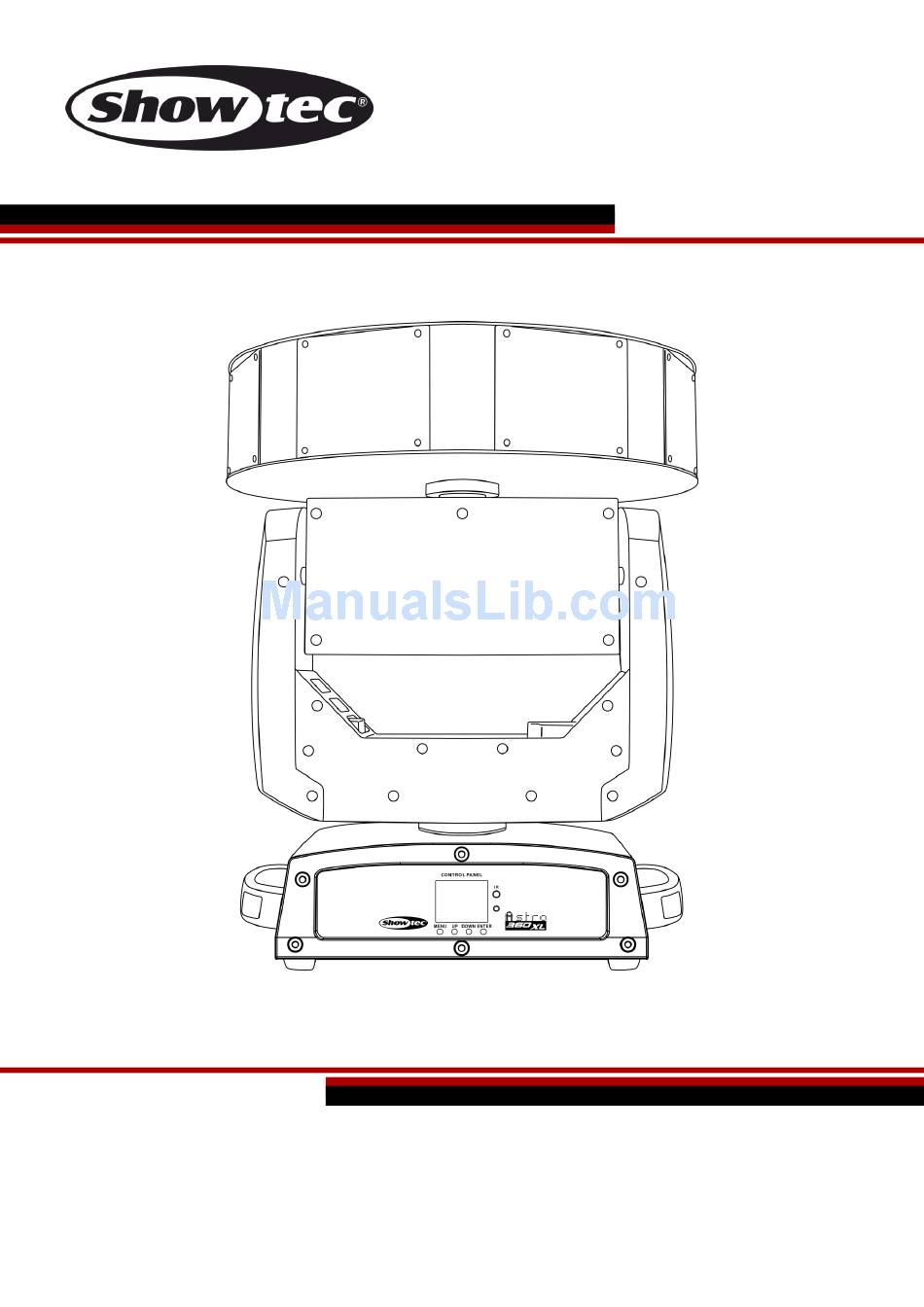

- Page 1 MANUAL ENGLISH Astro 360 XL Ordercode: 43024 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Astro 360 XL Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Features ..................................8 Overview .................................. - Page 3 Astro 360 XL Troubleshooting ................................34 No Light ..................................34 No Response to DMX..............................34 Product Specifications ..............................36 Dimensions ..................................37 Ordercode: 43024...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Astro 360 XL IEC power cable (1,5 m) ... - Page 5 Astro 360 XL Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes contained in this manual.
-
Page 6: Operating Determinations
Astro 360 XL • The user is responsible for correct positioning and operating of the Astro. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 7: Connection With The Mains
Astro 360 XL The Astro can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
Astro 360 XL Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device
Astro 360 XL Description of the device Features The Showtec Astro 360 XL is a moving head fixture with high output and great effects. Input voltage: 100-240V AC, 60/50 Hz Power consumption: 190W Light source: 8 x 12W 4-in-1 RGBW LEDs ... -
Page 10: Frontside
Astro 360 XL Frontside Fig. 02 01) 8 x 12W 4-in-1 RGBW LEDs 02) LCD display + control buttons Ordercode: 43024... -
Page 11: Backside
08) Fuse F3AL/250V 09) Ground/earth connection Installation Remove all packing materials from the Astro 360 XL. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 12: Control Modes
Astro 360 XL Control Modes There are 6 modes: • Auto • Manual • Sound-controlled • IR • Master/Slave • DMX-512 (20CH, 52 CH) One Astro (Auto, Manual and IR) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 13: Multiple Astros (Dmx Control)
Astro 360 XL Multiple Astros (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Astros and other devices. -
Page 14: Fixture Linking
Astro 360 XL Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Astro 360 XL The Astro 360 XL can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display MODE button C) UP button D) DOWN button ENTER button Fig. 06 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 16: Menu Overview
Astro 360 XL Menu Overview Ordercode: 43024... -
Page 17: Main Menu Options
Astro 360 XL Main Menu Options DMX Address DMX Mode / Master-Slave / Auto / Sound-controlled / IR / Manual Pan and Tilt Reverse / Screen Reverse / Pan and Tilt Angle / Fans / Display / Sound Sensitivity / Dimmer Curves and Speed / Reset / Factory Settings... -
Page 18: Operation Modes
Astro 360 XL Operation Modes You can select 6 different operation modes when using the Astro. 01) In the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to select one of the 6 modes: 1. -
Page 19: Ir Mode
Astro 360 XL 5. IR Mode 01) Press the UP/DOWN buttons until the display shows IR. 02) Press the ENTER button to activate IR mode. 03) Press the MODE button until the display shows: 04) Press the ENTER button to open the menu. -
Page 20: Led
Astro 360 XL 5.2. LED In this menu you can turn the LED blackout ON or OFF. 01) When the display shows (see picture below), press the ENTER button to open the menu: 02) Press the UP/DOWN buttons to choose OFF. -
Page 21: Strobe
Astro 360 XL 02) Once the ENTER button has been pressed, the display will show: 03) Sound-controlled mode is now active and the device will react to the beat of the background music, according to the sound sensitivity setting (5.6, page 21). -
Page 22: Sens
Astro 360 XL 5.6. SENS In this menu you can set the sound sensitivity. 01) Press the ENTER buton to open the menu. 02) Press the UP/DOWN buttons to set the sound sensitivity. The adjustment range is between 1-100, from low to high sensitivity. -
Page 23: Snap (Color Switch)
Astro 360 XL 5.9. SNAP (color switch) In this menu you can set the color switch speed. 01) Press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to set the color flow switch. The adjustment range is between 0-255, from fast to slow. -
Page 24: P/T/R: Pan
Astro 360 XL 5.11. P/T/R: Pan In this menu you can set the pan movement. 01) Press the ENTER button to open the menu. 02) Press the UP/DOWN buttons to gradually set the pan movement. The adjustment range is between 0- 255, from 0 to 540°. -
Page 25: Manual Mode
Astro 360 XL 6. Manual Mode In this menu you can adjust various settings. 01) In the main menu, press the UP/DOWN buttons to choose MANUAL. 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to toggle through the options below. -
Page 26: Advanced Settings
Astro 360 XL Advanced Settings 01) In the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to toggle through the options below: ... -
Page 27: System Information
Astro 360 XL System Information In this menu you can see the current active mode, the active DMX address, the current software version and the temperature of the device. 01) In the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu and view the information. -
Page 28: Dmx Channels
Astro 360 XL DMX Channels 20 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. - Page 29 Astro 360 XL Channel 14 – Color Macros Dimmer and shutter must be open Not functional 1-239 Manual color adjustment 240-247 Color flow, fast to slow 248-255 Color switch, fast to slow Channel 15 – Built-in programs Dimmer and shutter must be open...
- Page 30 Astro 360 XL Channel 19 – Functions Not functional 10-14 Pan/Tilt blackout 15-49 Pan/Tilt blackout OFF 50-54 Pan reset 55-59 Tilt reset 60-64 Dish reset 65-69 Not functional 70-74 All reset 75-79 Not functional 80-84 Pan/Tilt reverse 85-89 Pan reverse...
- Page 31 Astro 360 XL 52 Channels Channel 1 – Horizontal movement (Pan) Move the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish.
- Page 32 Astro 360 XL Channel 16 – LED 1 Blue Dimmer and shutter must be open 0-255 Gradual adjustment Blue, from 0-100% Channel 17 – LED 1 White Dimmer and shutter must be open 0-255 Gradual adjustment White, from 0-100% Channel 42 – LED 8 Red...
- Page 33 Astro 360 XL Channel 48 – Built-in program speed 0-127 Clockwise program, from slow to fast 128-255 Counterclockwise program, from slow to fast Channel 49 – Dimmer 0-255 0-100% dimmer Channel 50 – Shutter Dimmer and CH10-45 must be open...
-
Page 34: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Astro 360 XL requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 35: Troubleshooting
Astro 360 XL Troubleshooting This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. - Page 36 Astro 360 XL Problem Probable cause(s) Solution • Check if power is switched on and One or more No power to the fixture fixtures do not cables are plugged in function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 37: Product Specifications
Astro 360 XL Product Specifications Model: Showtec Astro 360 XL Input Voltage: 100-240V AC, 60/50Hz Power consumption: 190W DMX linking: 30pcs Fuse: F3AL/250V Dimensions: 320 x 180 x 430 mm (LxWxH) Weight: 17 kg Operating and Programming: Signal pin OUT:... -
Page 38: Dimensions
Astro 360 XL Dimensions Ordercode: 43024... - Page 39 Astro 360 XL Ordercode: 43024...
- Page 40 ©2016 Showtec...
