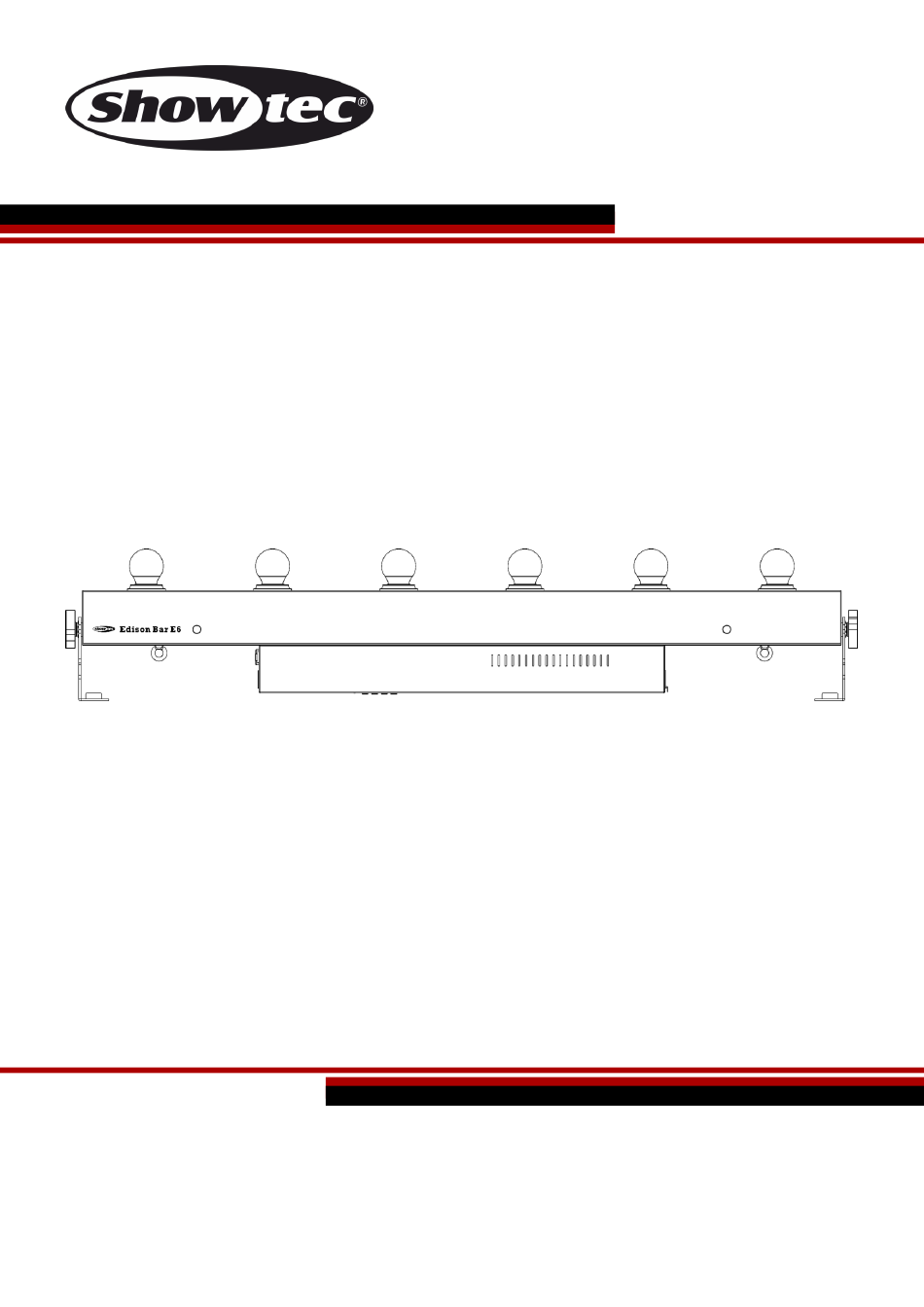

- Page 1 MANUAL ENGLISH Edison Bar E6 Ordercode: 30749 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Edison Bar E6 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Front ....................................7 Back ....................................8 Installation ................................... 8 Setup and Operation ................................ -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Edison Bar E6 ● Pro power cable (1,3 m) ●... - Page 4 Edison Bar E6 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device. ● Never let the power cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution! ●...
-
Page 5: Operating Determinations
Edison Bar E6 Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 1 meter. - Page 6 Edison Bar E6 The Edison can be placed on a flat stage floor or be mounted to any kind of truss with quick locks and a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug.
-
Page 7: Return Procedure
Edison Bar E6 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
Edison Bar E6 Description of the device Features The Edison Bar E6 is a light effect with high output. ● Input voltage: 230 V AC, 50 Hz ● Power consumption: 130 W ● Light source: 6 x LED bulb (not included); Use only dimmable LED bulbs. -
Page 9: Back
15) Power switch ON/OFF 16) Safety eye Installation Remove all packing materials from the Edison Bar E6. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Setup And Operation
Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connect the device to the main power supply. Installing the Lamp The Showtec Edison Bar E6 uses the following LED bulbs: 83260 – LED Filament Bulb E27 (4 W) 83271 –... -
Page 11: Control Modes
Edison Bar E6 Control Modes There are 5 modes: ● Auto ● Manual ● Sound-controlled ● Master/Slave ● DMX-512 (1CH, 6CH) One Edison (Auto and Manual) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 12: Multiple Edisons (Dmx Control)
Edison Bar E6 Multiple Edisons (DMX Control) 01) Fasten the effect light to a firm trussing or mount it on flat surface. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 13: Fixture Linking
Edison Bar E6 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Control Panel
Edison Bar E6 The Edison Bar E6 can be operated with a controller in control mode or without the controller in stand- alone mode. Control Panel A) LCD display MENU button C) UP button D) DOWN button ENTER button Fig. 06 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 15: Menu Overview
Edison Bar E6 Menu Overview Main Menu Options Upon start-up, the device will show the current software version After 10 seconds, the display will show the main menu. Run Mode Pixel Inversion DMX Fail Reset DMX Addressing 1. Run Mode In this menu you can set the desired operation mode. -
Page 16: Dmx Mode
Edison Bar E6 1.1. DMX Mode In this menu you can select the desired channel mode and control the device with a DMX controller. 01) Press the UP/DOWN buttons to choose one of the 2 channel modes: 1-channel mode 6-channel mode 02) Press the ENTER button to confirm. -
Page 17: Dmx Fail
Edison Bar E6 3. DMX Fail In this menu you can set the behavior of the device in case of a DMX signal error. 01) In main menu, press the MENU button until the display shows 02) Press the ENTER button to open the menu. -
Page 18: Maintenance
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Edison Bar E6, as this may damage the unit and the warranty will become void. -
Page 19: No Response To Dmx
Edison Bar E6 No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 20: Product Specifications
Edison Bar E6 Product Specifications Model: Showtec Edison Bar E6 Input voltage: 230 V AC, 50 Hz Power consumption: 130 W Fuse: T2AL/250V Dimensions: 1041 x 135 x 170 mm (LxWxH) Weight: 5 kg Electro-mechanical effects: Light source: 6 x LED bulb (not included);... -
Page 21: Dimensions
Edison Bar E6 Dimensions Ordercode: 30749... -
Page 22: Notes
Edison Bar E6 Notes Ordercode: 30749... - Page 23 Edison Bar E6 Ordercode: 30749...
- Page 24 ©2019 Showtec...
