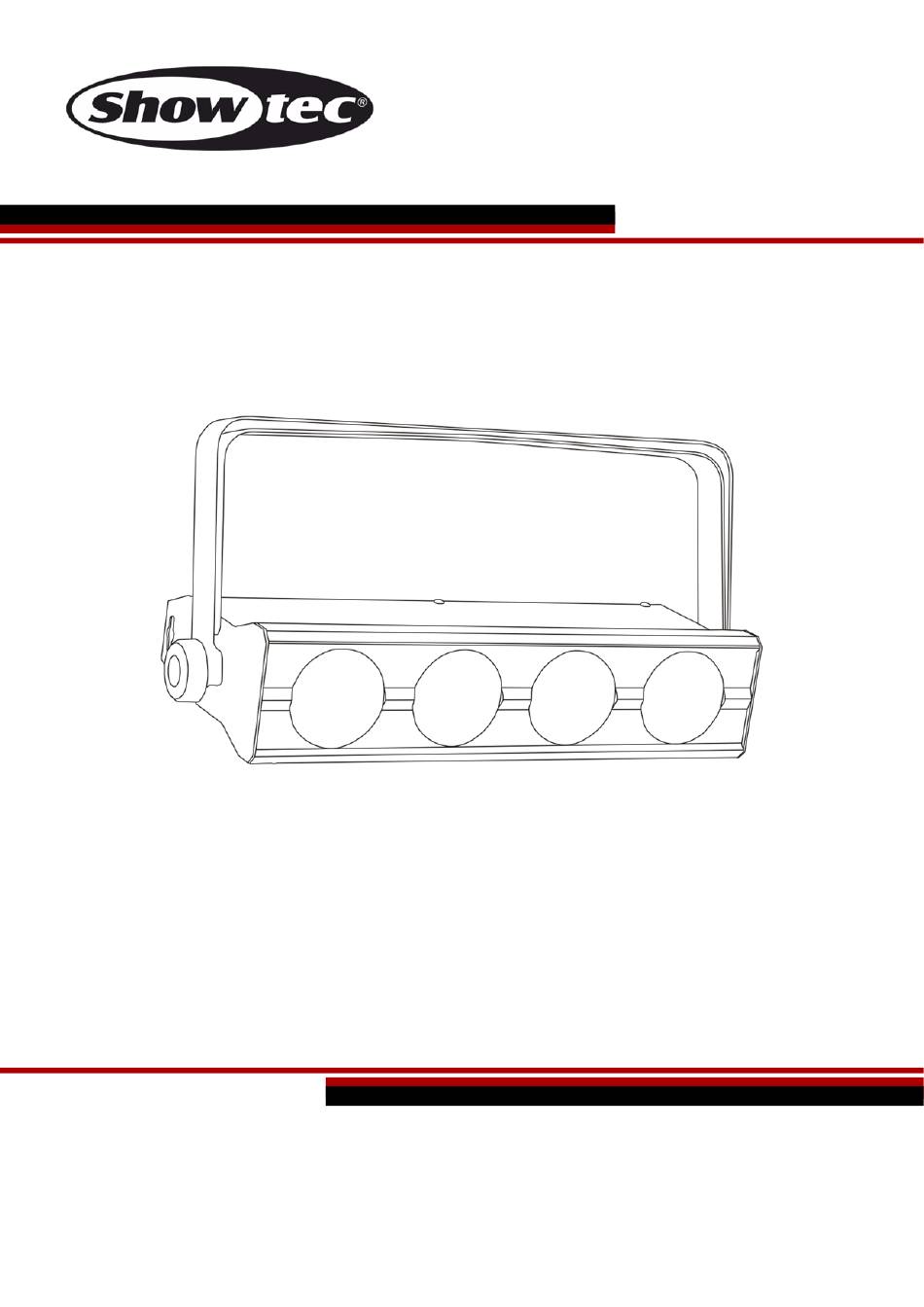

- Page 1 MANUAL ENGLISH Pixel Bar 4 COB Ordercode: 41268 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Pixel Bar 4 COB Table of contents Warning ................................... 2 Safety Instructions ..............................2 Operating Determinations ............................4 Rigging ..................................4 Mounting of Multiple Pixel Bars ..........................5 Connection with the mains ............................. 5 Return Procedure .............................. -
Page 3: Warning
Pixel Bar 4 COB Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 Pixel Bar 4 COB IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the device. Never let the power cord come into contact with other cables! Handle the power cord and all connections with the mains with particular caution! ...
-
Page 5: Operating Determinations
Pixel Bar 4 COB Operating Determinations This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 1 meter. ... -
Page 6: Mounting Of Multiple Pixel Bars
Pixel Bar 4 COB Mounting of Multiple Pixel Bars 01) Connect two Pixel Bars by means of the dedicated locks. 02) Using clamps, mount both Pixel Bars to any kind of truss. Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. -
Page 7: Return Procedure
Pixel Bar 4 COB Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Pixel Bar 4 COB Description of the device Features The Showtec Pixel Bar 8 COB is a light effect with high output and great effects. LED quantity: 4 x 15W COB RGB 3-in-1 COB LED technology Refresh rate: 7,8 kHz ... -
Page 9: Backside
Pixel Bar 4 COB Backside Fig. 02 03) 100-240V AC, IEC power connector OUT 04) 100-240V AC, IEC power connector IN + Fuse 1,5A/250V 05) LED display + control buttons 06) DMX signal connector IN 07) DMX signal connector OUT Installation Remove all packing materials from the Pixel Bar 4 COB. -
Page 10: Control Modes
Pixel Bar 4 COB Control Modes There are 6 modes: Stand-alone (Manual Color control, Built-in Programs, Auto run) Sound-controlled Master/Slave DMX512 (2CH, 3CH, 5CH, 6CH, 12CH) One Pixel Bar (Manual Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 11: Multiple Pixel Bars (Dmx Control)
Pixel Bar 4 COB Multiple Pixel Bars (DMX Control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-pin XLR cable to connect the Pixel Bars and other devices. -
Page 12: Fixture Linking
Pixel Bar 4 COB Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Pixel Bar 4 COB The Pixel Bar can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel LED Display MODE button SETUP button UP button DOWN button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. -
Page 14: Menu Overview
Pixel Bar 4 COB Menu Overview Ordercode: 41268... -
Page 15: Main Menu Options
Pixel Bar 4 COB Main Menu Options DMX address Master-Slave Manual Color Built-in Programs Auto run 1. DMX Addressing With this menu you can set the DMX address. 01) Press the MODE button, until the display shows 02) Press the SETUP button to open the menu. You can choose 512 different DMX addresses. 03) Press the UP/DOWN buttons to select the required address from 04) Once you have set the desired DMX address, you can also choose the desired DMX channel mode. -
Page 16: Built-In Programs
Pixel Bar 4 COB 4. Built-in Programs With this menu you can you can set the built-in programs. 01) Press the MODE button, until the display shows 02) Press the UP/DOWN buttons to scroll through the 24 built-in programs. 03) In menu , you can switch between the Program Running Speed and the Flash frequency by pressing the SETUP button. -
Page 17: Dmx Channels
Pixel Bar 4 COB DMX Channels 2 Channels Channel 1 – Static Colors (CH1 must be open 8-15 Red + Green 16-23 Green 24-31 Green + Blue 32-39 Blue 40-47 Red + Blue 48-55 Red + Green + Blue 56-63 Program 1 64-71 Program 2... -
Page 18: Channels
Pixel Bar 4 COB 3 Channels Channel 1 – Red Dimmer intensity 0-255 Red from 0 – 100% Channel 2 – Green Dimmer intensity 0-255 Green from 0 – 100% Channel 3 – Blue Dimmer intensity 0-255 Blue from 0 – 100% 5 Channels Channel 1 –... -
Page 19: Channels
Pixel Bar 4 COB 12 Channels Channel 1 – Red Dimmer intensity 0-255 Red from 0 – 100% Channel 2 – Green Dimmer intensity 0-255 Green from 0 – 100% Channel 3 – Blue Dimmer intensity 0-255 Blue from 0 – 100% Channel 4 –... -
Page 20: Maintenance
Pixel Bar 4 COB Maintenance The Showtec Pixel Bar requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. - Page 21 Pixel Bar 4 COB Problem Probable cause(s) Remedy One or more ● Check if power is switched on and No power to the fixture. cables are plugged in. fixtures do not function at all. Primary fuse blown. ● Replace the fuse. Fixtures reset The controller is not connected.
-
Page 22: Product Specification
Pixel Bar 4 COB Product Specification Model: Showtec Pixel Bar 4 COB Input voltage: 100-240V AC, 50/60Hz Drive current: 500mA/240V Power consumption: 60W max. at full output Fuse 1,5A/250V Dimensions: 425 x 160 x 85 mm (LxWxH) Weight: 3,1 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) -
Page 23: Dimensions
Pixel Bar 4 COB Dimensions Ordercode: 41268... - Page 24 ©2017 Showtec...
