Summary of Contents for Show Tec Shogun Pro-500

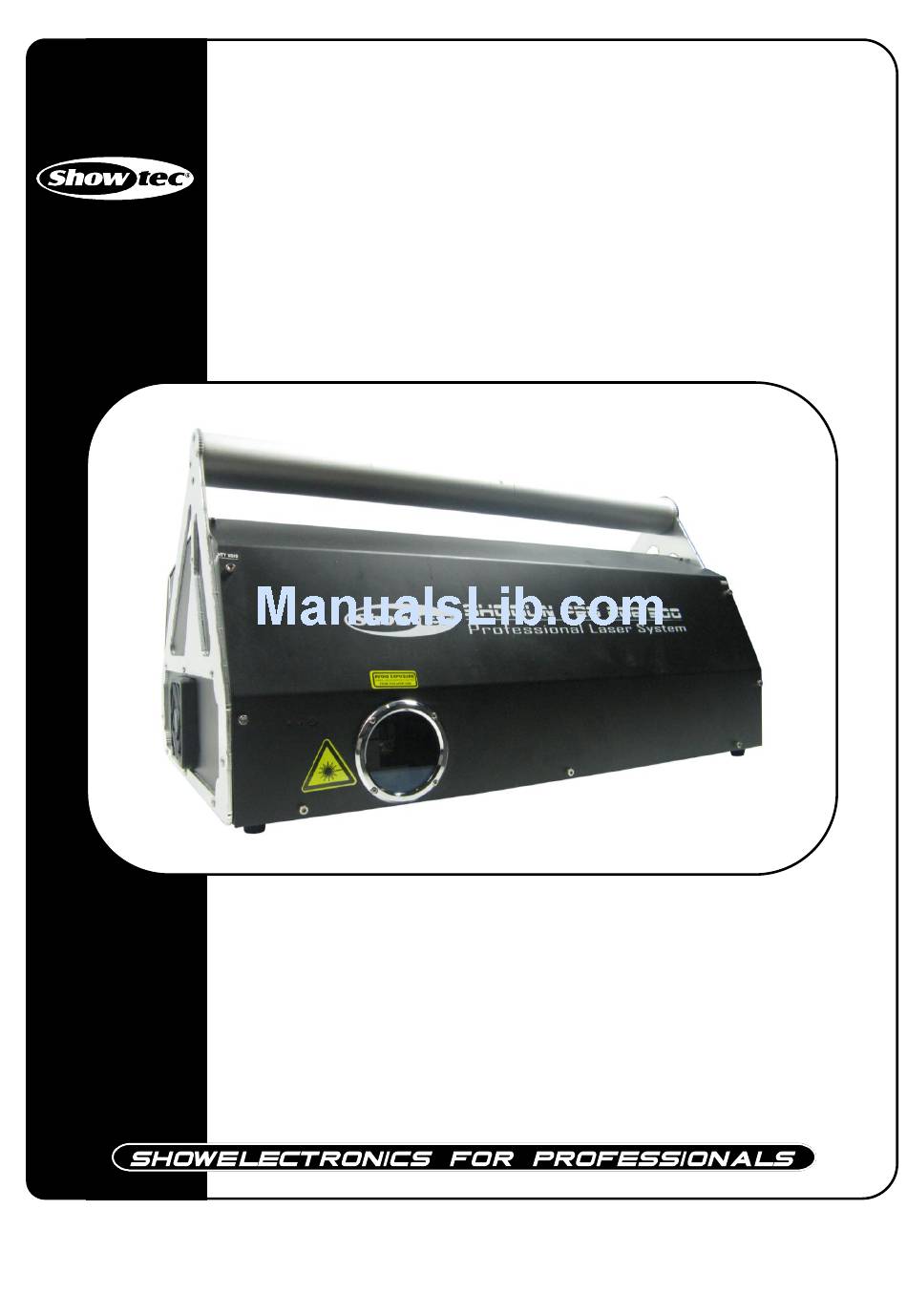

- Page 1 Shogun Pro-500 ORDERCODE 32041...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Shogun Pro-500 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Shogun Pro-500™ Product Guide Warning.................…...……………..…………………………….………..….. Unpacking Instructions……………………………………………………………………………………..……………. Contact Us……………………………………………………………………………………………………..……….…. Safety-instructions……………………………………………………………………………………………..………….. Operating Determinations.……………………………………………………….…………………………………….. Laser safety for a Class 4 Laser Product……………………………………….…………………………………….. Rigging.…………………………………………………………………………………………………………………….. Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….…………………..……… Backside…………………………………………………...…...….……………….…………………...….…..…….. Set Up and Operation..............……..……………………………….….………….. Warm-up times and storage temperature........……………..…………………….……………. ILDA DB-25 Operation………………………………..………………………………………………………..……. -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Safety-Instructions
SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before your initial start-up, please make sure that there is no damage caused by transportation. - Page 6 The powercable may not be modified, broken, mechanically strained, pressed together or heated. The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to deadly electrical shocks.
-
Page 7: Operating Determinations
Product Classification and Manufacturing Label Identification Laser Classification: Class 3B Laser medium: wavelength 635 nm / Red (Laser Diode) wavelength 532 nm / Green (DPSS) wavelength 473 nm / Blue (DPSS) Output: 500mW (300mW Red/ 150mW Green/ 100mW Blue) Cooling: TE Cooling CAUTION: The use of corrective eye wear or optics for viewing at distances such as... -
Page 8: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the laser is lowered from the ceiling or high joists, professional trussing systems have to be used. Make sure that any structure used to support the machine can support at least 10 times the total weight of all installed fixtures, clamps, cables, auxiliary equipment, etc. -
Page 9: Connection With The Mains
Placing the Laser on a horizontal surface The Shogun Pro-500 can be placed on a level horizontal surface resting on its rubber feet. 1. Make sure that the surface is level, stable and capable of supporting at least 10 times the weight of the machine. -
Page 10: Description
Description of the device Features The Showtec Shogun Pro-500 is a laser effect with a high output and great effects. • 300 mW Red laser Diode (635nm) • 150 mW Green laser DPSS (532nm) • 100 mW Blue laser DPSS (473nm) •... -
Page 11: Backside
Backside 13 14 15 16 17 18 Fig. 2 USB Connection LED Indicator Security Dongle Dipswitches 6) Audio Sensitivity 7) X 8) Y ILDA connector SmartMedia Card 128MB 11) Key System 12) Power ON/OFF 13) IEC Power Connector + Fuse 2A 250V 14) Red 15) Green 16) Blue... -
Page 12: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Remove the protection cover from the front of the laser. When the laser is not in use, please replace the cover to protect the laser. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. - Page 13 Operating with USB for the first time: 1. Load the CypherLiteUSB CD-ROM into your PC. 2. Create a new folder on your desktop and rename it to “Cypher” Copy the files from the CD-ROM into that folder. 3. Connect the USB cable from your PC to the Projector. 4.
- Page 14 7. The wizard will then load the necessary files and you will see the PC recognize the Flashback3 board in the projector. 8. To start using Cypher USB, click on the Cypher icon 9. When the program opens, it will have an empty workspace. 10.
-
Page 15: Ilda Db-25 Operation
ILDA Test Pattern ILDA DB-25 Operation For ILDA operation you must have a Pangolin LD2000 card or another ILDA standard laser show control system. The connection from the PC to the Laser projector is made with a DB-25 cable. When connecting for the first time make sure that the cable is “straight through”... -
Page 16: Setting The Dmx Address
DMX products must have their own "address" to receive DMX signals. Addresses on the Showtec Shogun Pro-500 are set by flipping the appropriate DMX dip switches. A standard DMX address for a Showtec Shogun Pro-500, which has 14 channels is as follow: Shogun Pro-500 Address Value DMX Dip Switches "ON"... -
Page 17: Dmx Quick Reference Chart
DMX Address Quick Reference Chart Dip Switch Position DMX DIP SWITCH SET 0=OFF 1=ON Dip Sw itch Pos ition DM X Addre s s... -
Page 19: Auto Play
Auto Play Using the CypherLiteUSB software you can also set the unit up to run a cue as soon as it powers up. This may be useful in settings where the projector is used for advertisement or to project logos and does not require an operator. -
Page 20: Cleaning The Laseroptics
Cleaning the Laser Optics Maintenance The Showtec Shogun Pro-500 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Carefully wipe both mirrors clean with glass cleaner and a soft cloth. -
Page 21: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. -
Page 22: Product Specifications
Product Specification Model: Showtec Shogun Pro-500 Voltage: 240V-50Hz (CE) Fuse: 2A / 250V Dimensions: 615x415x340mm (LxWxH) Weight: 20,2 kg Operation and Programming Signal input 3-pin XLR male Signal output 3-pin XLR female DMX-control via standard DMX-controller Laser 300 mW Red laser Diode (635nm)
