- Page 1 USER MANUAL ENGLISH Lightset PRO 9/10 RGBM Product code: 30290 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Lightset PRO 9/10 RGBM Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Lightset PRO 9/10 RGBM Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Lightset PRO 9/10 RGBM Settings ................................28 Curves Select ............................29 Dimmer Speed ............................29 Pixel Invert ............................30 DMX Fail ..............................30 DMX Sync .............................30 Lock ...............................31 Factory ..............................31 Information ..............................31 DMX Channels ..............................32 4 Channels, 5 Channels, 6 Channels, 10 Channels ................32 8 Channels, 16 Channels, 19 Channels ....................34 Supported RDM PIDs (Parameter IDs) ......................35...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Lightset PRO 9/10 RGBM ● 2 x safety eye ● 1 x spigot ●... -
Page 6: Symbols And Signal Words
Lightset PRO 9/10 RGBM Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
Lightset PRO 9/10 RGBM Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Lightset PRO 9/10 RGBM WARNING Risk of burns due to hot surface The surface and the inner parts of the device can become very hot during operation. ● Do not touch the device during operation. ● Allow the device to cool down for at least 15 minutes before handling.
-
Page 9: Requirements For The User
Lightset PRO 9/10 RGBM ● If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation. -
Page 10: Description Of The Device

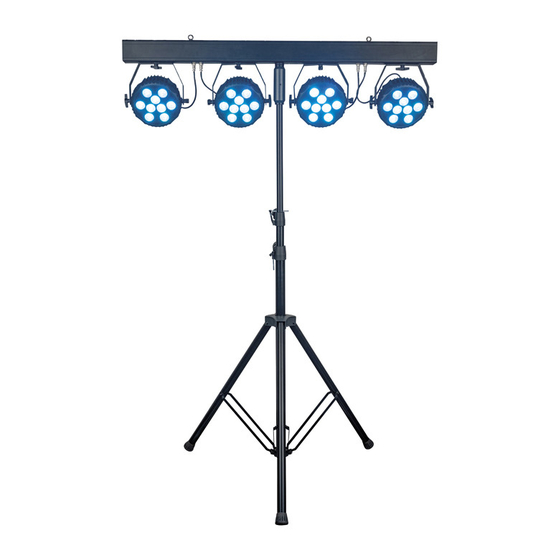

Description of the Device The Lightset PRO 9/10 RGBM is a high-level and rental-friendly T-bar with 4 spots, each equipped with 9 pieces of 10 W RGB and Mint LEDs. Thanks to the presence of the Mint LEDs, it is possible to create much better quality white and pastel colors. -
Page 11: Back View
Lightset PRO 9/10 RGBM Back View Fig. 03 05) Ground/earth connection 06) Fuse T5L/250 V 07) Pro power connector (Blue) IN 08) 3-pin DMX signal connector IN 09) 5-pin DMX signal connector IN 10) 3-pin DMX signal connector OUT 11) 5-pin DMX signal connector OUT... -
Page 12: Product Specifications
Lightset PRO 9/10 RGBM Product Specifications Model: Lightset PRO 9/10 RGBM Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 260 W Fuse: T5L/250 V Physical: Dimensions: 1287 x 135 x 364 mm (LxWxH) Weight: 13,2 kg Optics: Light source:... -
Page 13: Optional Accessories
Lightset PRO 9/10 RGBM Optional Accessories You can additionally purchase the following accessories: Product code: 30291 (Beamshaper for Lightset PRO 9/10 RGBM 20°) Product code: 30292 (Beamshaper for Lightset PRO 9/10 RGBM 40°) Product code: 70912 (Lighting stand Alu, including spigot adapter) Dimensions Fig. -
Page 14: Installation
Lightset PRO 9/10 RGBM Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. - Page 15 Lightset PRO 9/10 RGBM To mount the device, follow the steps below: 01) Use the included quick-lock brackets to attach the device to the supporting structure, as shown in Fig. 06. Make sure that the device cannot move freely. Optionally, you can install the device on a lighting stand, as shown in Fig.
-
Page 16: Angle Adjustment
Lightset PRO 9/10 RGBM Angle Adjustment You can adjust the angle of the device with the adjustment screws (15). 01) Turn the adjustment screws (15) counterclockwise to release them. 02) Tilt the device to the desired angle (see Fig. 08). -
Page 17: Connecting To Power Supply
Lightset PRO 9/10 RGBM Connecting to Power Supply DANGER Electric shock caused by short-circuit The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device. This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth). -
Page 18: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Lightset PRO 9/10 RGBM is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually or in auto mode. -
Page 19: Dmx Cables
Fig. 10. Fig. 10 Master/Slave Setup The Lightset PRO 9/10 RGBM supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below: 01) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 20: Dmx Linking
In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Lightset PRO 9/10 RGBM has 7 personalities: 4 channels, 5 channels, 6 channels, 8 channels, 10 channels, 16 channels and 19 channels. -
Page 21: Operation
Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. Control Modes The Lightset PRO 9/10 RGBM supports the following control modes: ● Stand-alone: Manual, Auto, Built-in programs ●... -
Page 22: Control Panel
Lightset PRO 9/10 RGBM Control Panel A) OLED display DOWN button C) UP button D) SETUP button MODE button Fig. 13 ● Use the MODE button to exit the current submenu and to return to the Main Menu. ● Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values. -
Page 23: Menu Overview
Lightset PRO 9/10 RGBM Menu Overview Product code: 30290... - Page 24 Lightset PRO 9/10 RGBM Product code: 30290...
-
Page 25: Main Menu Options
Lightset PRO 9/10 RGBM Main Menu Options Upon start-up, the display will show the current software version and the temperature. The main menu has the following options: Press the UP/DOWN buttons to navigate through the main menu. 02) Press the SETUP button to open the submenus. -
Page 26: Address
Lightset PRO 9/10 RGBM Address In this menu you can set the desired DMX starting address. Press the UP/DOWN buttons to set the desired DMX address. The adjustment range is 001–512. Press the SETUP button to confirm your choice. Channels In this menu you can set the desired DMX channel mode. -
Page 27: Color Preset
Lightset PRO 9/10 RGBM Color Preset In this menu you can set the color presets. 01) If you have chosen COLOR PRESET, the display will show: 02) Press the UP/DOWN buttons to choose one of the 2 options: ● COLOR ●... -
Page 28: Auto
Lightset PRO 9/10 RGBM The display will show: Press the UP/DOWN buttons to choose one of the 4 colors: Red, Green, Blue and Mint. Press the SETUP button to enter the menu. Press the UP/DOWN buttons to set the LED brightness. The adjustment range for each color is 0–255, from dark to brightest. -
Page 29: Master/Slave Mode
Lightset PRO 9/10 RGBM Master/Slave Mode In this menu you can set the device as a slave. While in the main menu, press the UP/DOWN buttons to choose SLAVE. Press the SETUP button to enter the menu. The display will show: Press the UP/DOWN buttons to choose YES or NO. -
Page 30: Curves Select
Lightset PRO 9/10 RGBM Curves Select In this menu you can set the dimming curves. Press the UP/DOWN buttons to choose one of the 4 dimming curves. Press the SETUP button to confirm your choice. Dimmer Speed In this menu you can set the dimmer speed. -
Page 31: Pixel Invert
Lightset PRO 9/10 RGBM Pixel Invert In this menu you can set the pixel direction. Press the UP/DOWN buttons to select NORMAL or INVERT. Press the SETUP button to confirm your choice. DMX Fail In this menu you can set the device’s behavior in case of a DMX failure. -
Page 32: Lock
Lightset PRO 9/10 RGBM Lock In this menu you can set the safety lock, restricting access to the main menu. Press the UP/DOWN buttons to select one of the 2 options: ● ON: when no button is pressed within 30 seconds, the device’s main menu will be locked. -
Page 33: Dmx Channels
Lightset PRO 9/10 RGBM DMX Channels 4 Channels, 5 Channels, 6 Channels, 10 Channels 4 CH 5 CH 6 CH 10 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) 000–010 No function Linear Strobe 011–255... - Page 34 Lightset PRO 9/10 RGBM 4 CH 5 CH 6 CH 10 CH Function Value Setting 205–209 Color 41 R 175; G 028; B 000; M 255 210–214 Color 42 R 175; G 080; B 035; M 255 215–219 Color 43 R 160;...
-
Page 35: Channels, 16 Channels, 19 Channels
Lightset PRO 9/10 RGBM 8 Channels, 16 Channels, 19 Channels 8 CH 16 CH 19 CH Function Value Setting Master 000–255 From low to high intensity (0–100 %) Dimmer 000–010 No function Linear Strobe 011–255 From low to high frequency (0–20 Hz) 000–010... -
Page 36: Supported Rdm Pids (Parameter Ids)
Lightset PRO 9/10 RGBM Supported RDM PIDs (Parameter IDs) Parameter ID Discovery command SET command GET command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE SUPPORTED_PARAMETERS SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION RESET_DEVICE FACTORY_DEFAULTS Product code: 30290... -
Page 37: Troubleshooting
Lightset PRO 9/10 RGBM Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 38: Maintenance
Lightset PRO 9/10 RGBM Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. WARNING Risk of burns due to hot surface Allow the device to cool down for at least 15 minutes before servicing or cleaning. -
Page 39: Basic Cleaning Instructions
Lightset PRO 9/10 RGBM Basic Cleaning Instructions The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. -
Page 40: Deinstallation, Transportation And Storage
Lightset PRO 9/10 RGBM Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 41 Lightset PRO 9/10 RGBM Product code: 30290...
- Page 42 Lightset PRO 9/10 RGBM Product code: 30290...
- Page 43 Lightset PRO 9/10 RGBM Product code: 30290...
- Page 44 ©2020 Showtec...
