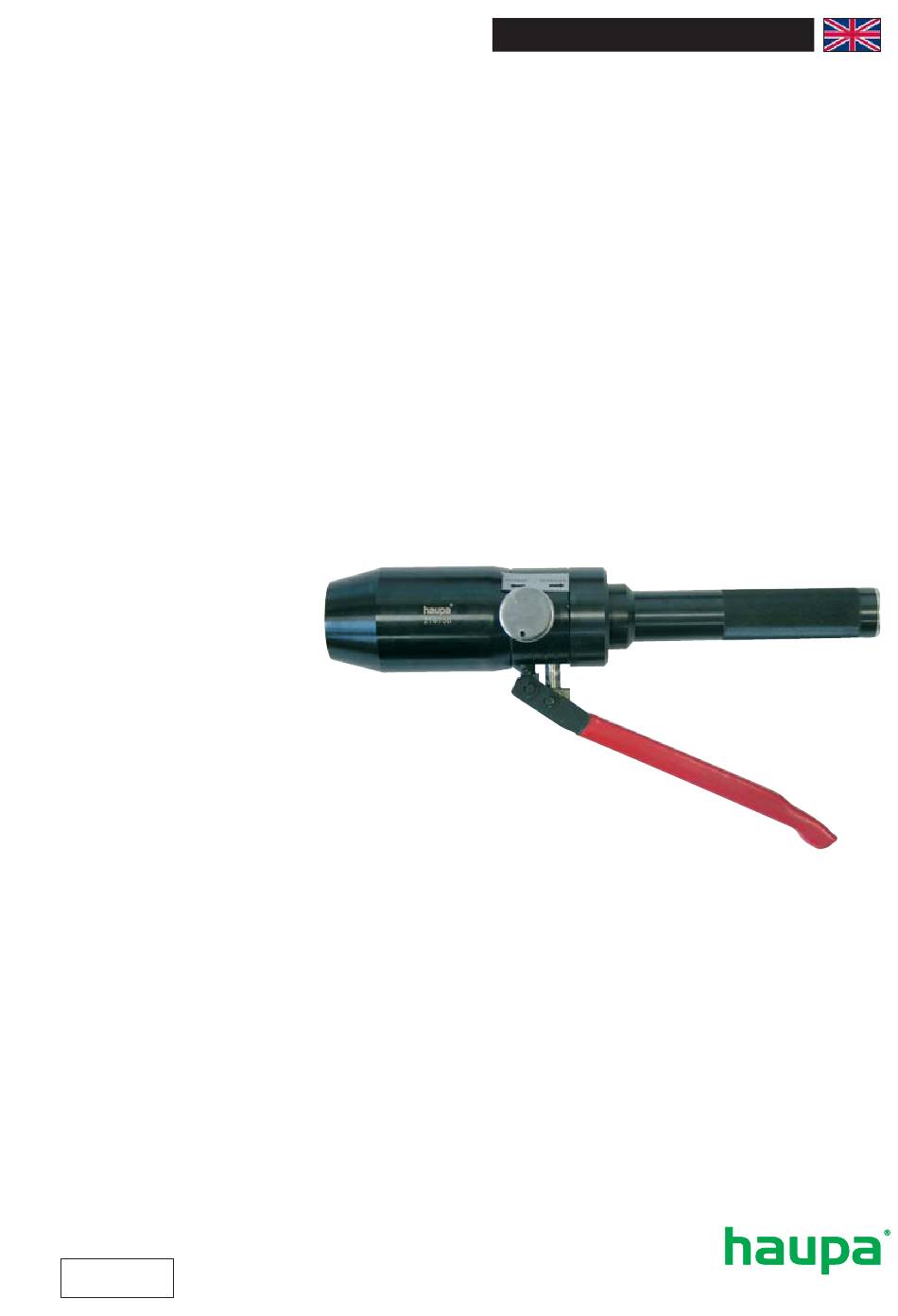

- Page 1 INSTRUCTION MANUAL COMPACT HYDRAULIC PUNCHER Art. 21 67 50 DIN EN ISO 9001 ZERTIFIKAT ...convincing solutions...
-
Page 2: Technical Characteristics
1. TECHNICAL CHARACTERISTICS Maximum cutting capacity: Ø 60 mm. 3 mm thick steel plate 46 x 46 mm. 2 mm thick steel plate Material Max yield strength: 37 kg / mm Cutting force: 50 KN Operating pressure: 650 bar Dimensions: 290 x 140 mm Weight: 2.4 kg... -
Page 3: Operation
• Turn the pressure/depressure wheel clockwise, closing the hydraulic circuit, so that the tool is ready to perform the punching operation. …convincing solutions Germany: HAUPA, Königstr. 165-169, 42853 Remscheid Phone: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840, sales@haupa.com • Errors and technical changes reserved. - Page 4 3.2.3. Punching operation • Put the pressure/depressure wheel in the pressure position. • Actuate the drive lever in a swinging movement until the plate has been punched. • Once the punching has been completed, actuate the lever 2 or 3 times more until the cut piece of plate has completely separated. •...
-
Page 5: Care And Maintenance
…convincing solutions Germany: HAUPA, Königstr. 165-169, 42853 Remscheid Phone: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840, sales@haupa.com • Errors and technical changes reserved. -
Page 6: Fault Diagnostics
Always use original spares. Any other part type could seriously damage the tool and would void the guarantee. If despite the above, the tool still does not work correctly, return it to the nearest Technical Service for repair and fine tuning by specialised personnel or send an e-mail to: info@haupa.com... - Page 7 3) Reference to the operating instructions and/or date. 4) Tool type. 5) Serial number of the tool. The guarantee is voided if you use parts that are not original replacement parts from HAUPA. …convincing solutions Germany: HAUPA, Königstr. 165-169, 42853 Remscheid...
- Page 8 EXPLODED VIEW DRAWING Art. NO. 21 67 50...
