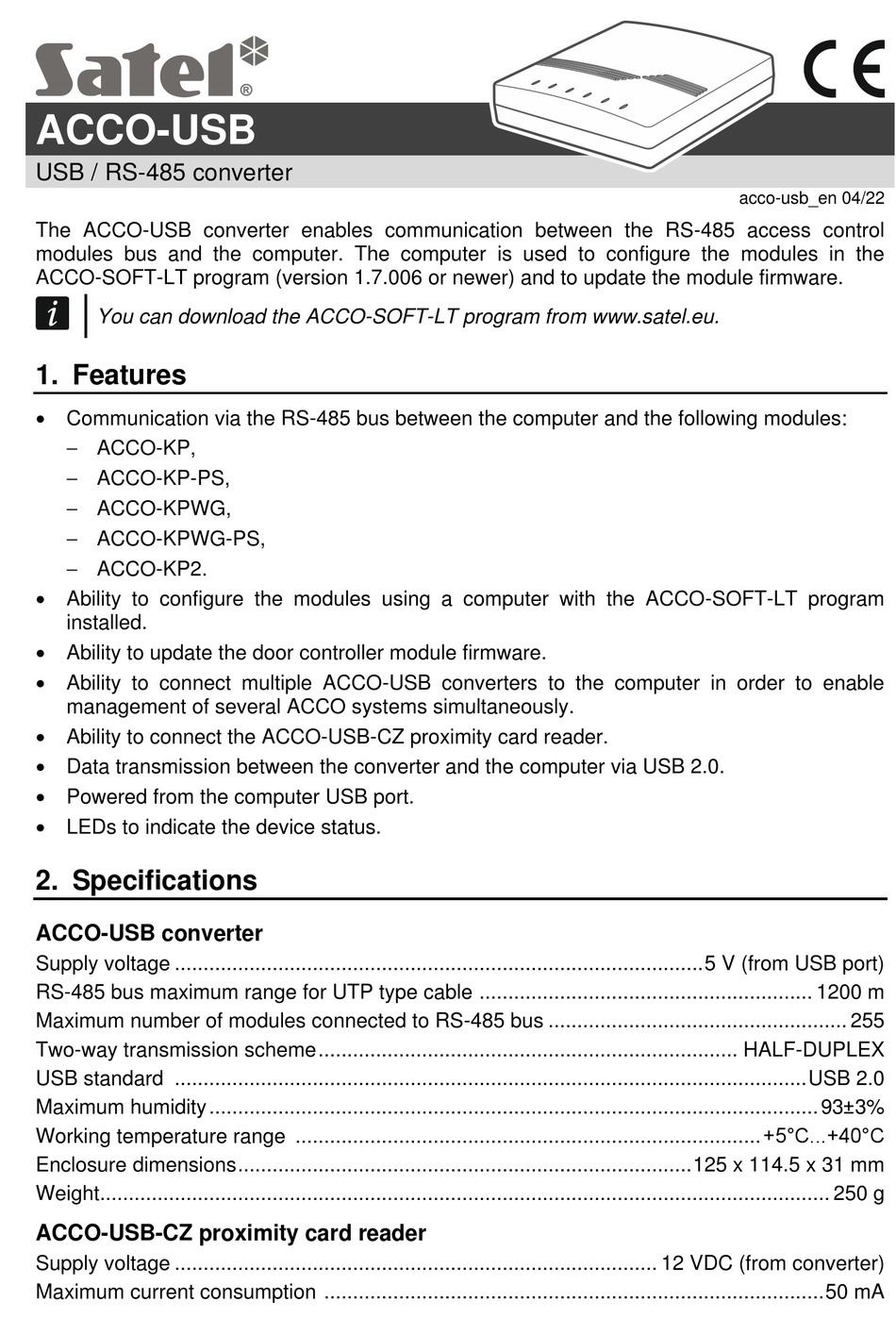

ACCO-USB
USB / RS-485 converter
The ACCO-USB converter enables communication between the RS-485 access control
modules bus and the computer. The computer is used to configure the modules in the
ACCO-SOFT-LT program (version 1.7.006 or newer) and to update the module firmware.
You can download the ACCO-SOFT-LT program from www.satel.eu.

1. Features

 Communication via the RS-485 bus between the computer and the following modules:
 ACCO-KP,
 ACCO-KP-PS,
 ACCO-KPWG,
 ACCO-KPWG-PS,
 ACCO-KP2.
 Ability to configure the modules using a computer with the ACCO-SOFT-LT program
installed.
 Ability to update the door controller module firmware.
 Ability to connect multiple ACCO-USB converters to the computer in order to enable
management of several ACCO systems simultaneously.
 Ability to connect the ACCO-USB-CZ proximity card reader.
 Data transmission between the converter and the computer via USB 2.0.
 Powered from the computer USB port.
 LEDs to indicate the device status.

2. Specifications

ACCO-USB converter
Supply voltage ............................................................................................ 5 V (from USB port)
RS-485 bus maximum range for UTP type cable .......................................................... 1200 m
Maximum number of modules connected to RS-485 bus .................................................... 255
Two-way transmission scheme ......................................................................... HALF-DUPLEX
USB standard .............................................................................................................. USB 2.0
Maximum humidity .......................................................................................................... 93±3%
Working temperature range ................................................................................. +5°C...+40°C
Enclosure dimensions ............................................................................... 125 x 114.5 x 31 mm
Weight ............................................................................................................................... 250 g
Supply voltage .................................................................................... 12 VDC (from converter)
Maximum current consumption ....................................................................................... 50 mA
acco-usb_en 04/22
