ACCO-KP2
SATEL
ACCO-KP2
Access control module ACCO
USER MANUAL
EN
Firmware version 1.00
acco-kp2_u_en 06/22
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACCO-KP2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Satel ACCO-KP2

  • Page 1 ACCO-KP2 SATEL ACCO-KP2 Access control module ACCO USER MANUAL Firmware version 1.00 acco-kp2_u_en 06/22 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
  • Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. The current information on the introduced modifications is available on our website.
  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ........................3 2. Glossary ..........................3 3. Users ..........................4 3.1 User authorization ........................4 3.2 Authorization by using two identifiers ..................5 3.3 Code ............................5 3.3.1 Factory default code ........................5 3.4 User rights ..........................5 4.
  • Page 4 SATEL ACCO 6. Using the proximity card readers ..................14 6.1 Description of the CZ-EMM and CZ-EMM2 readers ............... 14 6.1.1 Bicolor LED ..........................14 6.2 Description of the CZ-EMM3 and CZ-EMM4 readers ............. 15 6.2.1 LEDs............................15 6.2.2 Bell key ............................15 6.3 Audible signaling ........................
  • Page 5: Introduction

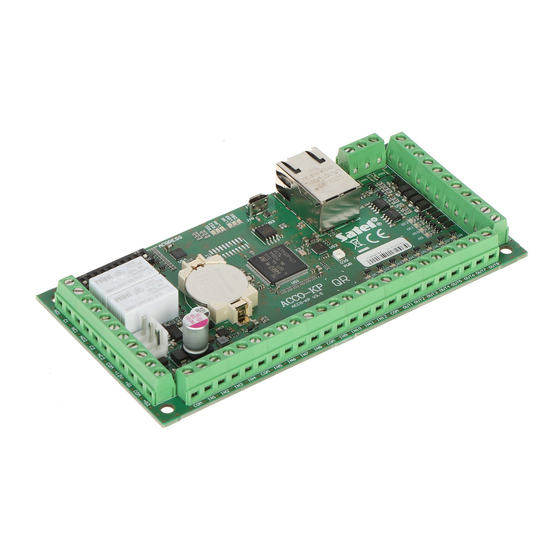

    SATEL sp. z o.o. The ACCO-KP2 module is used to control the access to a room, a building or an area. Its job is to control a single door. Only an authorized person will be able to open the door. Devices connected to the module, such as LCD keypads, keypads or readers, are used to identify which person is authorized.
  • Page 6: Users

    SATEL ACCO-KP2 Door status control – module that supervises the door status by using a sensor connected to the module input. The sensor reports it when the door is opened or closed. Door unblocked – module operating mode in which access to the door is not controlled and anyone can open it (the door is permanently unlocked).
  • Page 7: Authorization By Using Two Identifiers

    ACCO-KP2 SATEL Authorization by using two identifiers The ACCO-KLCDR and ACCO-SCR keypads have a built-in proximity card reader. The installer can configure these devices so that the user must use two identifiers for authorization, both code and card. 3.3 Code The code is a string of 4 to 12 digits.
  • Page 8: Description Of The Keypad

    SATEL ACCO-KP2 Fig. 1. ACCO-KLCDR keypad. 4.1 Description of the keypad 4.1.1 LEDs Color Description ON – door blocked (permanently locked) yellow flashing slowly – door blocked (permanently locked) after the “Alarm – block door” type of input is activated ON –...
  • Page 9: Display

    ACCO-KP2 SATEL 4.1.2 Display The information presented on the display help the user communicate with the module. Date and time are displayed in the upper line. The installer can define the keypad backlight mode and the time format to be shown on the display.
  • Page 10: Unlocking The Door

    SATEL ACCO-KP2 1 very long beep – access denied (the keypad is blocked by the “Anti-Scanner” function). Long beep lasting 10 seconds – alarm. Unlocking the door The door will unlock when you are granted access. When the door is unlocked, you will be able to open the door.
  • Page 11: Other Functions Available When The Code Is Used

    ACCO-KP2 SATEL  the user is not authorized to unlock the door according to the access schedule,  the door is blocked,  the user exceeded the defined limit of entries,  the user tries again to enter or exit – the “Anti Passback” option is enabled, ...
  • Page 12: Changing The Code

    SATEL ACCO-KP2 4.3.5 Changing the code 1. Enter the code and press 2. Use the  or  key to find the “Change code” function. Press 3. Enter the new code. 4. Press to save the new code. 4.3.6 Module data 1.
  • Page 13: Description Of The Keypad

    ACCO-KP2 SATEL Fig. 3. ACCO-SCR keypad. 5.1 Description of the keypad 5.1.1 LEDs Color Description ON – door blocked (permanently locked) yellow flashing slowly – door blocked (permanently locked) after the “Alarm – block door” type of input is activated ON –...
  • Page 14: Audible Signaling

    SATEL ACCO-KP2 5.1.4 Audible signaling 1 short beep – access granted and door unlocked. 2 short beeps – door blocked, unblocked or restored to normal mode. 3 short beeps – waiting for the second identifier to be used. 1 long beep – access denied (known card or code). The user cannot unlock the door because: ...
  • Page 15: Access Denied

    ACCO-KP2 SATEL 5.2.2 Access denied The door will remain locked if:  the identifier is unknown,  the user cannot get access because:  the keypad only grants access based on the card, but the code has been entered,  the keypad only grants access based on the code, but the card has been used, ...
  • Page 16: Restoring The Door To Normal Operation Mode

    SATEL ACCO-KP2 5.4.3 Restoring the door to normal operation mode If the LED (door blocked) or the LED (door unblocked) is turned ON, present the card on the keypad reader and hold for about 3 seconds. The door will be restored to normal operation mode.
  • Page 17: Description Of The Cz-Emm3 And Cz-Emm4 Readers

    ACCO-KP2 SATEL 6.2 Description of the CZ-EMM3 and CZ-EMM4 readers Fig. 5. CZ-EMM3 and CZ-EMM4 readers. 6.2.1 LEDs Color Description ON – normal operation of the reader green flashing rapidly – access to door granted flashing slowly – door unblocked (permanently unlocked) ON –...
  • Page 18: Unlocking The Door

    SATEL ACCO-KP2  the door is blocked,  the user exceeded the defined limit of entries,  the user tries again to enter or exit – the “Anti Passback” option is enabled,  the module operates in the mantrap / airlock configuration and the other door is open.
  • Page 19: Restoring The Door To Normal Operation Mode

    ACCO-KP2 SATEL 6.5.3 Restoring the door to normal operation mode If the red LED (door blocked) or the green LED (door unblocked) is flashing slowly, present the card on the reader and hold for about 3 seconds. The door will be restored to normal operation mode.
  • Page 20: Other Functions

    SATEL ACCO-KP2  the user tries again to enter or exit – the “Anti Passback” option is enabled,  the module operates in the mantrap / airlock configuration and the other door is open,  the reader is blocked by the “Anti-Scanner” function.
  • Page 21: Other Ways To Unblock The Door

    ACCO-KP2 SATEL 10. Other ways to unblock the door The door can also be unblocked in one of the following ways:  after the module input programmed as “Door unblocking” is activated (e.g. by using a switch),  after the module input programmed as “Fire – unblock door” is activated (e.g. by using a fire alarm control panel output etc.),...
