ISSI LC-2 Operation Manual page 9

Upon opening, the motors of the lens will move through their minimum and maximum
points to establish the limits. For the preset capability, this determines the minimum and
maximum motor positions.

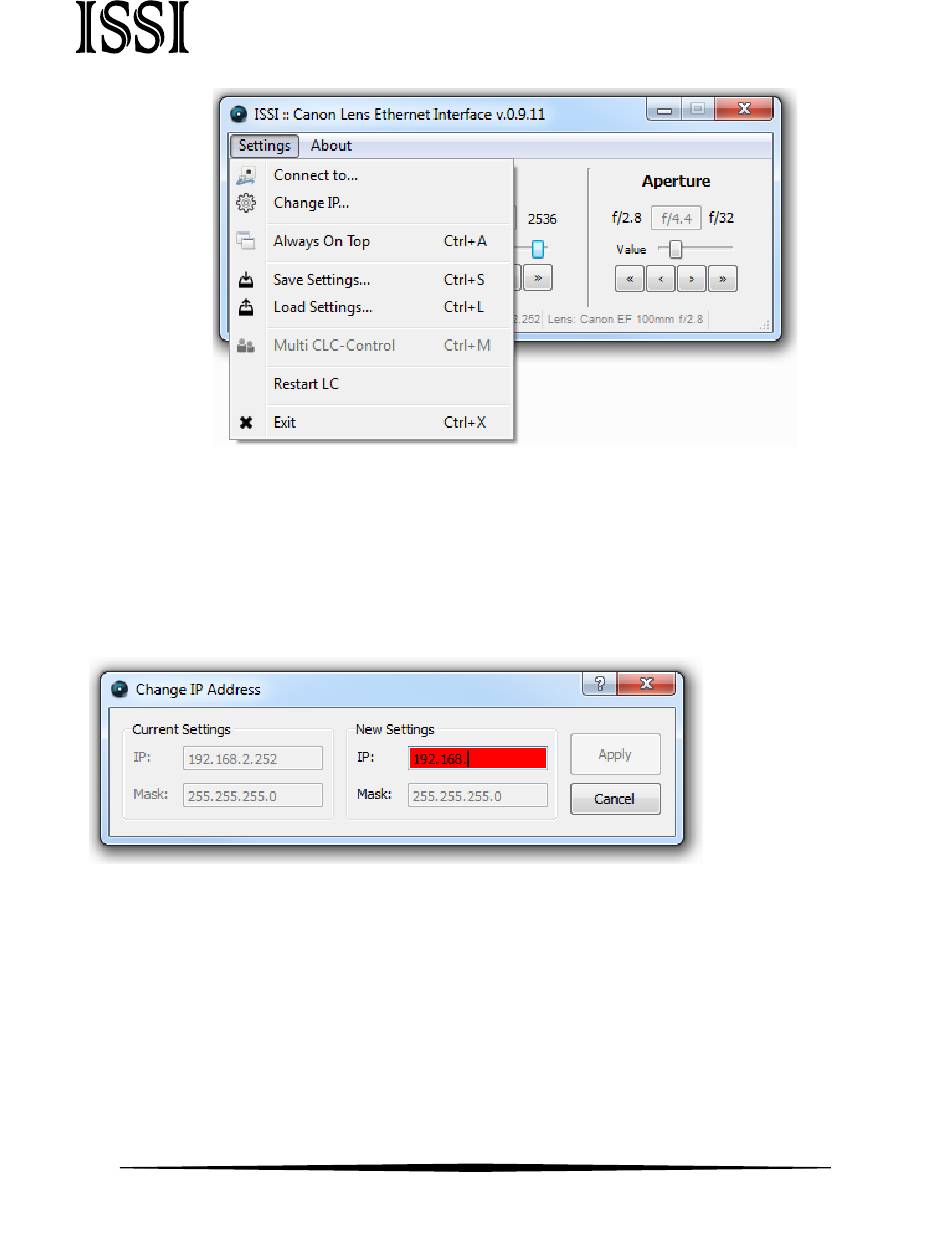

Once connected, the IP address of the lens controller can be changed if desired. Under
the Change IP window, the IP address can be updated. If networking multiple LC-2s the IP
address of each must be unique.
If the toolbar is red, that means it is not a valid IP address. Type in the desired IP address and
click Apply to implement.
Always on Top makes the LC-2 software always appear as the front window for all windows
open on the desktop.
The save and load settings are used to save positions and recall them on each motor of the lens.
When the lens parameters are at their desired location, those positions on each motor can be
saved and later recalled. To save new settings, select Save Settings and enter a name for those
Innovative Scientific Solutions, Inc.
8
