Innovative Scientific Solutions, Inc.
Software Operation

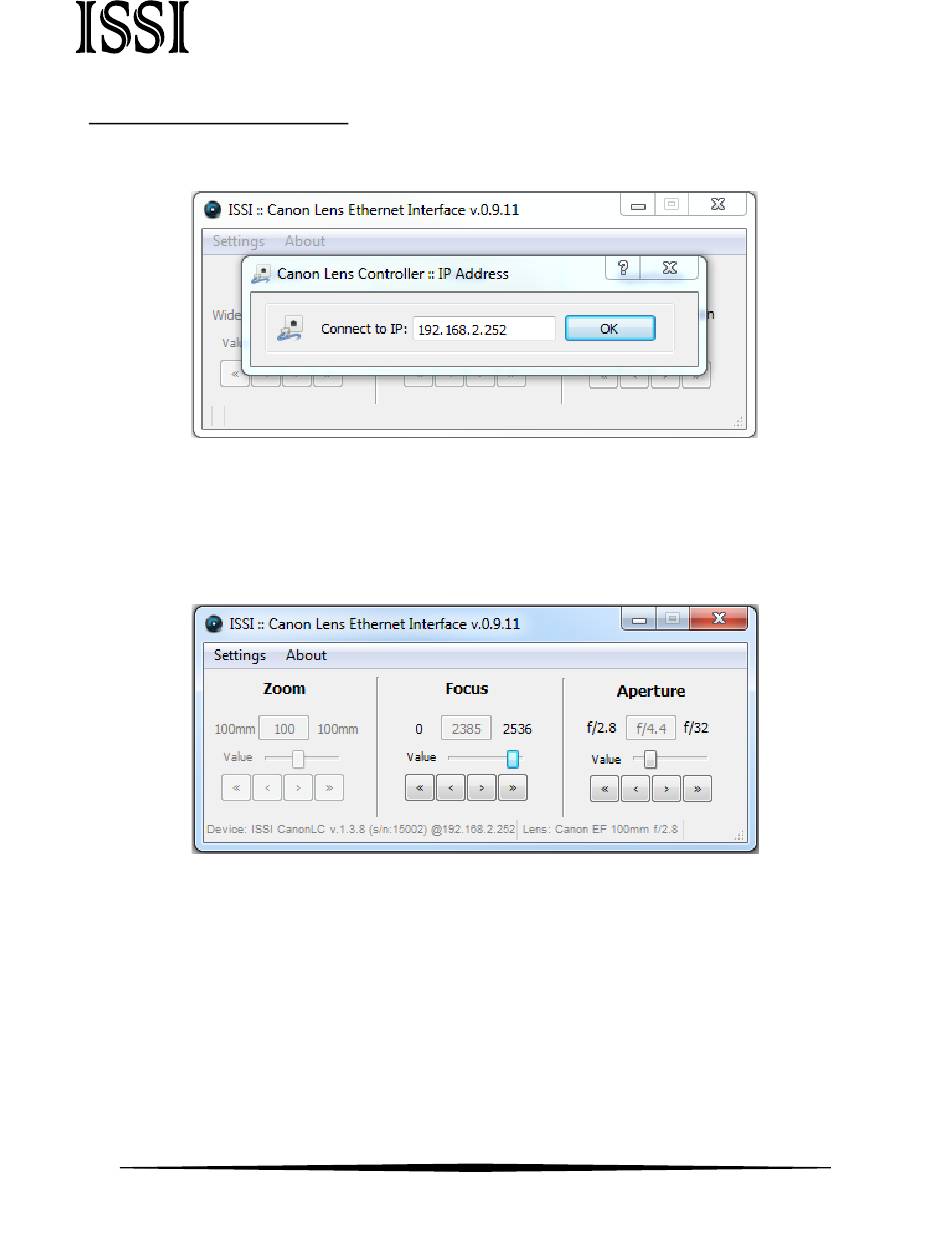

Open the software for the LC-2 from the desktop and it will ask for the IP of the connected LC-2.
Enter the IP address of the LC-2 connected to the network. To communicate with multiple LC-
2s over this network (through a network switch); open up another instance of the program on the
desktop. Once connected, the GUI will show the current position of each motor of the lens. The
firmware version, serial number and IP address will be displayed in the bottom of the GUI. The
lens information (focal length and F number) are displayed as well.
The lens controller is made to operate with CANON® EF lenses. The GUI displays the current
positions of the Focus and Aperture. There are two sets of arrows below this which are used to
move the position of the motor. The single-arrow is slower moving for fine adjustments and the
double-arrow is faster for coarse adjustments. The lens can be moved to points within its range
using the sliding adjustment labeled 'Value'
7
