EN

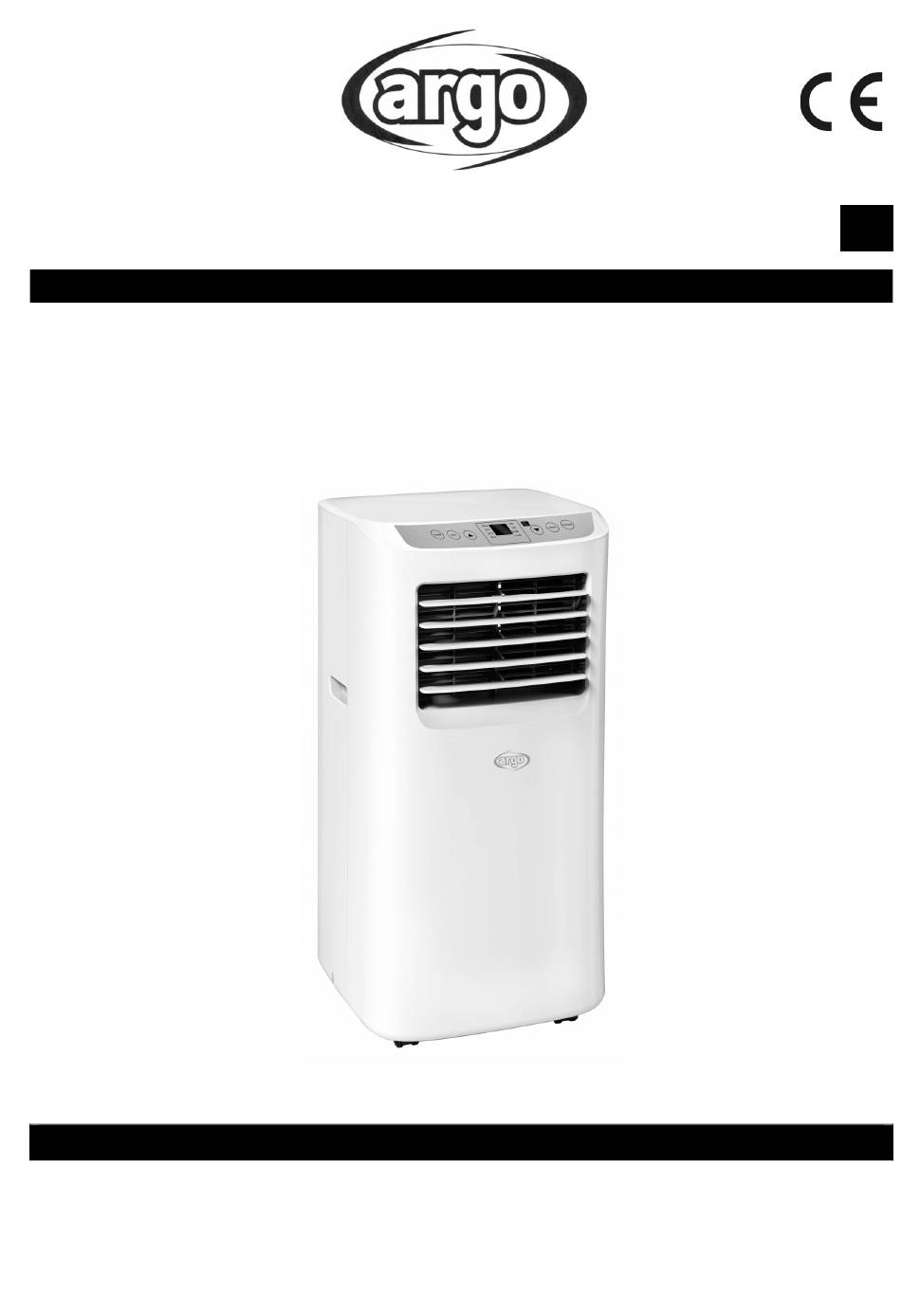

PORTABLE AIR CONDITIONER (LOCAL)
SWAN EVO
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these
instructions in a safe place for future reference.
V 06/20
17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWAN EVO and is the answer not in the manual?

Questions and answers

Related Manuals for Argo SWAN EVO

Summary of Contents for Argo SWAN EVO

  • Page 1 PORTABLE AIR CONDITIONER (LOCAL) SWAN EVO OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in a safe place for future reference.
  • Page 2 Appliance filled with flammable gas R290. Before installing and using the appliance, read the owner’s manual. Before repairing the appliance, read the service manual. The Refrigerant R290  To realize the function of the air conditioner unit, a special refrigerant circulates in the system.
  • Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS  This appliance is a local air conditioner designed for domestic use.  Only use this air-conditioner as described in this manual.  Ensure that the required voltage and frequency (220-240V/50 Hz) match the available power source. ...
  • Page 4  Do not use the plug as a means by which to start/stop the air conditioner: use the ON/OFF button on the remote control or on the control panel.  Do not install the air conditioner in rooms where it may receive water splashes (e.g.
  • Page 5 PRECAUTION!  Do not insert any objects into the air conditioner: this is very dangerous as the fan turns at high speed.  Ensure that air circulates freely around the unit. Do not cover the air intake and delivery grilles with drapes or any other means.
  • Page 6  Close all open windows to maximise air conditioning efficiency. The manufacturer will not be held liable if safety and accident prevention rules are not observed. V 06/20...

  • Page 7: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE FRONT VIEW UPPER PANEL HANDLE LATERAL PANEL SWIVEL CASTERS CONTROL DJUSTABLE AIR FLOW OUTLET REAR VIEW FRONT PANEL AIR INTAKE DRAINAGE HOLE FOR DEHUMIDIFICATION FUNCTION 10) FAN 11) AIR OUTLET FILTER 12) DRAINAGE HOLE FOR COOLING FUNCTION 13) FRONT PANEL 14) HANDLE 15) REAR PANEL...

  • Page 8: Appliance Start-Up

    PRE-OPERATING CHECKS AND OPERATIONS The following space must be maintained to ensure the operating efficiency of the portable air conditioner. 50 cm 50 cm APPLIANCE START-UP Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box below).
  • Page 9 USE WITH END FITTING FOR WINDOW 1. Stretch the flexible hose sufficiently so that it 2. Open the window and lock one of the two leaves reaches the outside (max 1.5 m) and hook it to the rear with the handle. part of the air conditioner.
  • Page 10 USE WITH WINDOW UNIT KIT 1. To make the hole in the glass it is advisable to 2. Insert the window unit into the window. take the porthole kit accessory to the glazier. 3. Insert the round fitting into the retractable flexible 4.

  • Page 11: How To Use The Appliance

    HOW TO USE THE APPLIANCE This appliance can be used for cooling, dehumidifying and ventilation purposes. Before using the appliance, leave it standing erect for at least two hours. When switching between modes, the fan continues to turn but the compressor stops: the compressor will re-start after 3 minutes.
  • Page 12 If used during summer, it is best to leave the flexible pipe attached so that the hot air is discharged towards the outside rather than into the room. During dehumidification, continuous drainage should be implemented (see the next chapter, “HOW TO ELIMINATE CONDENSATE”).

  • Page 13: Remote Control Operation

    REMOTE CONTROL OPERATION Slide the cover open in the direction indicated by the arrow. Insert alkaline batteries (type AAA, LR03/1.5 V - not provided) compliant with Battery Directive no.2006/66/EC and amendments Directive 2013/56/EC into the remote control and make sure the poles match. Put the cover back on.
  • Page 14 FOR OPTIMAL REMOTE CONTROL OPERATION, POINT THE TRANSMITTER HEAD TOWARDS THE RECEIVER ON THE AIR CONDITIONER. ON/OFF BUTTON TIMER BUTTON DOWN BUTTON MODE BUTTON UP BUTTON FAN BUTTON SLEEP BUTTON (1)ON/OFF BUTTON Press this button to switch the unit on or off. (2) TIMER BUTTON a.

  • Page 15: Care And Maintenance

    (7) SLEEP BUTTON In cooling mode, press the UP and FAN buttons to activate the Sleep mode, after which the unit will return to the silent mode and save energy. N.B.: The Sleep function is not available in the dehumidifying or fan modes. (8) TEMPERATURE AND ERROR DISPLAY Problem Cause...
  • Page 16 5. For complete safety, regularly check the condition of the power cord; should it be damaged as a result of wear, contact the Service Centre to replace it. TIPS FOR MAXIMISING COMFORT AND MINIMISING CONSUMPTION CHECK that:  the unit intake and delivery grilles are always free; ...
