- Page 1 V7T Truck Dash Cam User Manual Thank you very much for purchasing the VSYSTO V7T dash cam. Please read this manual carefully before use. - 1 -...
-
Page 2: Safety Instructions
Safety Instructions In order to use this product safely, please confirm that you fully understand the following. WARNING: This section indicates that mishandling can have serious consequences. Note: This section indicates that improper handling may cause injury to the user or damage the product. Obey Prohibit WARNING... -
Page 3: Standard Accessories
Features Replace conventional lithium batteries with super capacitors for longer life and safer. 1.HD display screen. 2.Support reversing auxiliary line. 3.Support battery voltage display. 4.Video can be recorded after inserting Micro SD card. 5.Built-in WiFi, can view real-time video on the dedicated APP. Standard Accessories Host Front Camera... -
Page 4: Description Of Each Part
Description of Each Part Up Button GPS Connector Camera Connector OK Button Down Button Camera Connector Card Slot Power Cable Reset Button GPS Module Microphone Camera Power Connector Camera - 4 -... -
Page 5: Microsd Card
Micro SD Card 1.Please use the high-quality Class10 or above genuine SD card. 2.The recorder supports 16G-256G memory card. 3.If the memory card cannot save the file properly, please format it on the recorder. ※Formatting will delete the data, please backup the card data before performing formatting. - Page 6 Installation Guide Please connect the yellow wire on the rear camera to the 12V positive pole of the inverted light. When the vehicle is in reverse gear, the rear camera screen will be displayed in full screen on the main unit of the recorder, with a reversing auxiliary line.

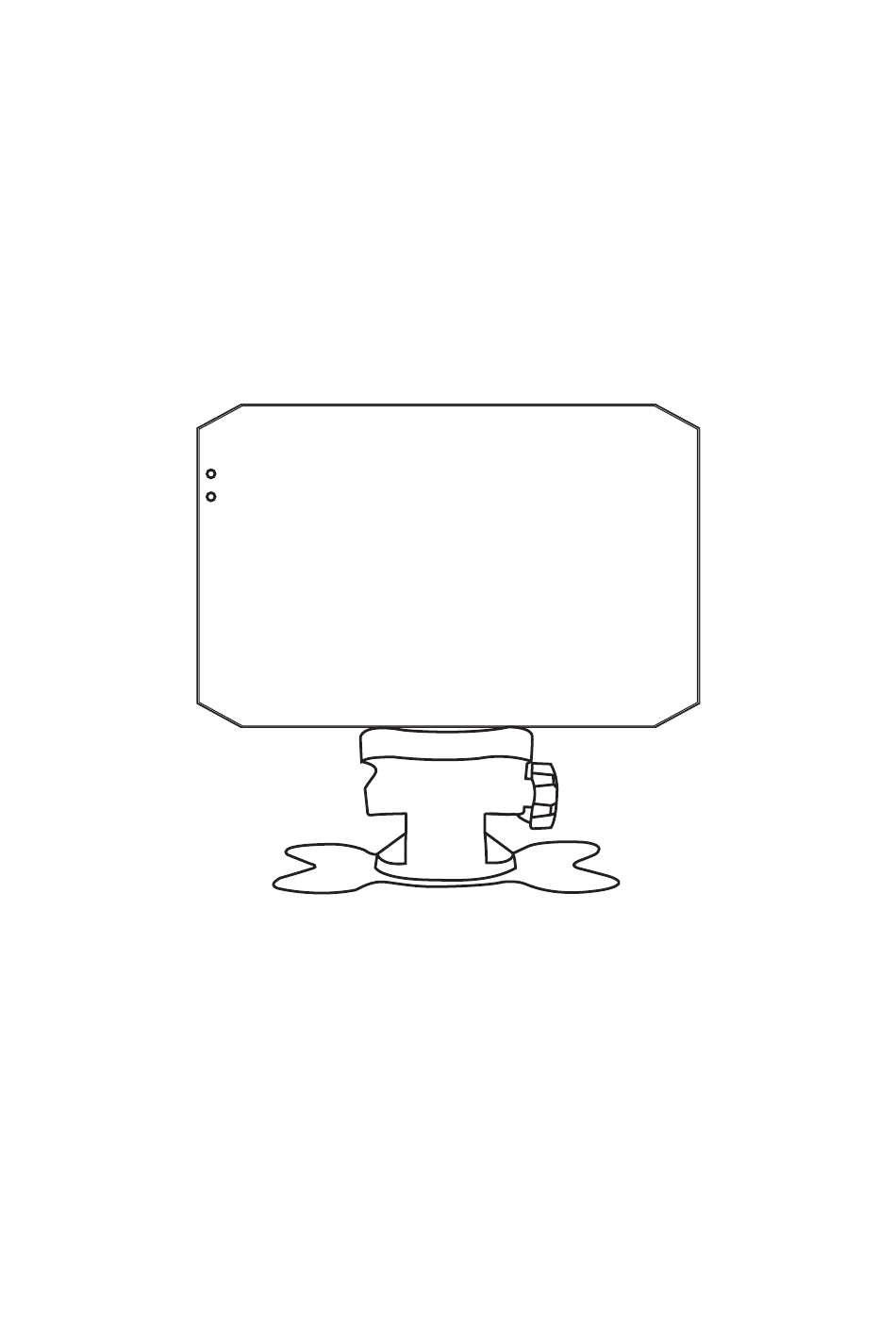

- Page 7 Host Fixed Installation Diagram Host Fixed Installation Diagram: 1. Hang it on the windshield. 2. Stand on the center console. Note: You can choose to rotate 180° to adjust the screen interface in the host menu. - 7 -...
- Page 8 Power on After installing the recorder and inserting the SD card, insert the charger into the cigarette lighter. Start the car to start recording automatically. Attention ※ This recorder uses the latest supercapacitor design to replace the traditional lithium battery design, supercapacitor will automatically charge and can save the last file after disconnecting the power.
- Page 9 Screen Information and Menu Descriptions Description of characters on the display 1.After selecting, press in recording mode: to enter recording mode. 2.The icon becomes larger Recording icon Date&Time Video time to indicate that thefunction Microphone has been selected. Altitude 2022/09/09 15:12:01 00:00:26 Parking Atmospheric...
- Page 10 1.After selecting, press to enter setting mode. 2.The icon becomes larger to indicate that the function has been selected. Note:"Flameout Detection ", "Parking Monitoring" "Parking Monitoring Sensitivity ", and ''Timed Recording after Flameout " functions are optional and require the purchase of an additional power cable to have them.
- Page 11 Mobile Phone APP Installation and Operation WiFi APP is a mobile phone control software used with VSYSTO DVR device.This software is connected to the DVR device via Wi-Fi, it can directly preview and playback the video on the mobile phone,easily realize that viewing the camera documents on the screen of mobile phone,setting or other operations.
- Page 12 2022/09/09 15:12:01 OKB/S 2022/09/09 15:12:01 VSYSTO V7T OKPH ◆Browse Recorder Files Online Click browse the video files on recorder memory card(as shown in the figure below). ◆Playback Recrder Files Browsing the recorder file interface in the "Online"...
- Page 13 ◆Download or Delete Recorder Files In the "Online" browsing recorder file interface, click to select the file you want EDIT to download or delete, and then click "Save" or "Delete" below as needed (as shown in the figure below). Video File Name REC-XXXX—...
- Page 14 ◆Recorder Parameter Setting Click to enter the recorder parameter setting interface, and you can set some Setting parameters of the recorder in the mobile APP. Set SSID is the WiFi name and password for setting the recorder (as shown in the picture below).
-
Page 15: Wireless Remote Control
Wireless Remote Control Remote Control 1. Short press the red button once to switch to the full screen of the left camera 1. Short press the blue button once to switch the full screen of the right camera 2 Double-clicking either of the two buttons will trigger emergency lock mode. - Page 16 Interface Picture Example Initial Interface When the mouse moves to the corresponding icon,there will be an operation prompt, please follow the prompt to operate (as shown in the figure below). Interface during Playback During playback, double-click the front camera or rear camera image, the full screen of the camera will be displayed.
