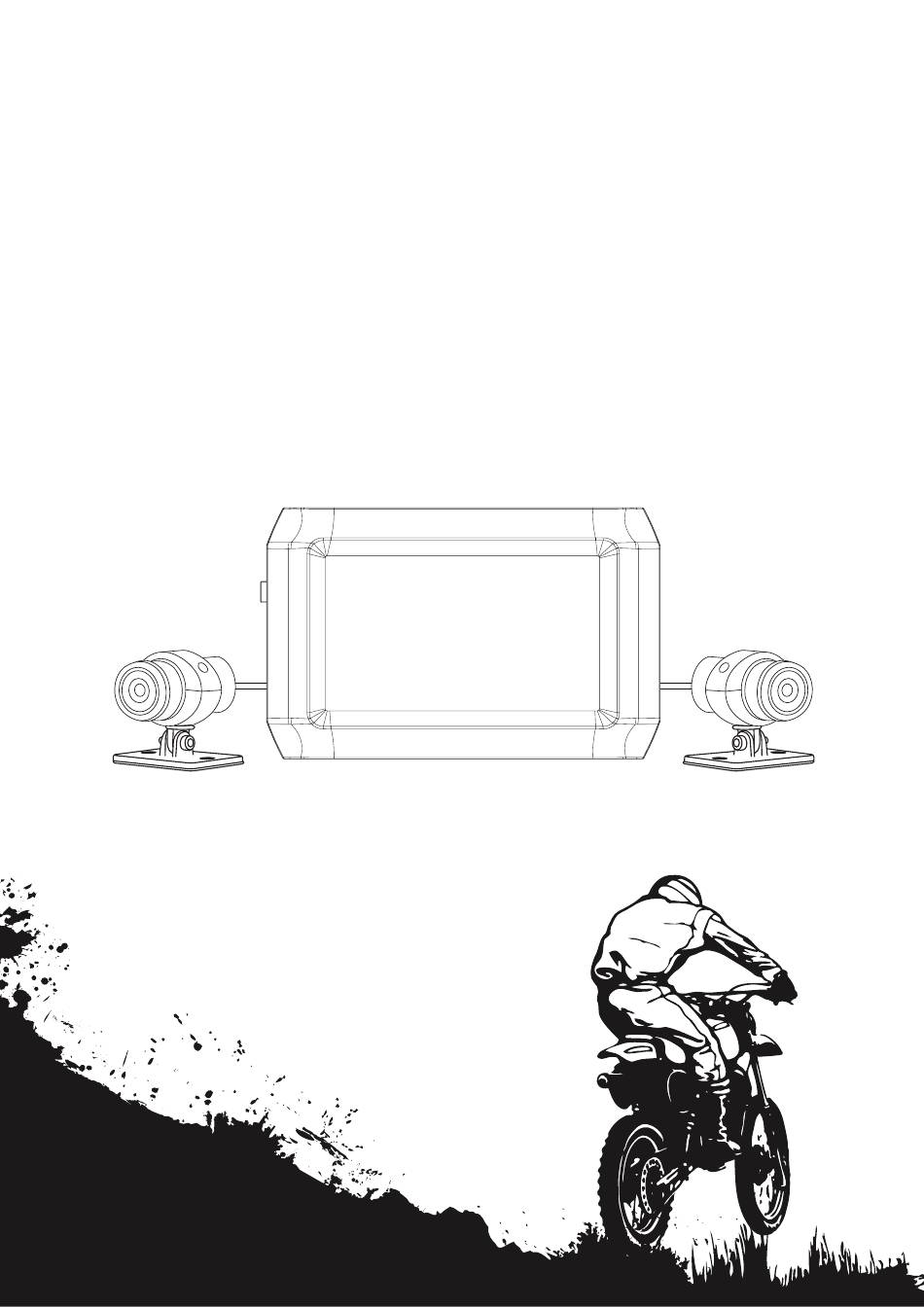

- Page 1 Dash Cam User Manual - 1 -...
- Page 2 Notes for Using the Dash Cam ● This product is an auxiliary (vehicle driving recorder) product for safe driving. Any loss caused by malfunction, information loss or using this product is irrelevant to our company. ● This product is an auxiliary device for recording external images of vehicles. Due to the different driving environment and vehicle environment, some functions will not support.
- Page 3 The Packing List After opening the package, please confirm whether the driving recorder is in good condition and the accessories are complete. 1)Main Unit x1 2）Camera x2 3)Power Cable x1 4）USB Test Cable x1 5)Tie x8 6）Bracket x1 7)TF Card（Optional） x1 8）GPS Module x1 9)Wire Controller x1 Product Appearance Diagram...
- Page 4 Images Information and Menu Description 1. After selecting, r ess[OK]to enter Video 1.Character description on the display in video mode Mode. Support Parking Monitoring When the parking is detected, 2. The icon becomes larger to indicate that the progress bar will shut down Altitude Recording Atmospheric Pressure...
- Page 5 W3 Wire Controller Operating Instructions ◆ Function operation Up Button： ①In the video recording interface, short press the up button once to switch to the full screen mode of the rear camera,which can be used as a backup camera. Then short press the up button once to return.
- Page 6 Auxiliary Display Mode Speed Battery Power Display 12.31V Current Voltage Current speed Sleeping: 00.0V while driving km/h The voltage after flameout for one hour. Parking: 00. 0V The voltage after flameout for TRIP:0 Km one minute. ② Short press the down button again to ①...
- Page 7 Mobile Phone APP Installation and Operation WiFi APP is a mobile phone control software used with VSYSTO DVR device. This software is connected to the DVR device via Wi-Fi, it can directly preview and playback the video on the mobile phone, easily realize that viewing the camera documents on the screen of mobile phone, setting or other operations.
- Page 8 Installation Guide Waterproof GPS module It needs to be exposed in the place where there is no obstruction. And the distance from GPS to camera and main Power Cable unit shall be about 30CM to Waterproof wire controller avoid signal interference. It is suggested to install it on the handlebar Main Unit...
