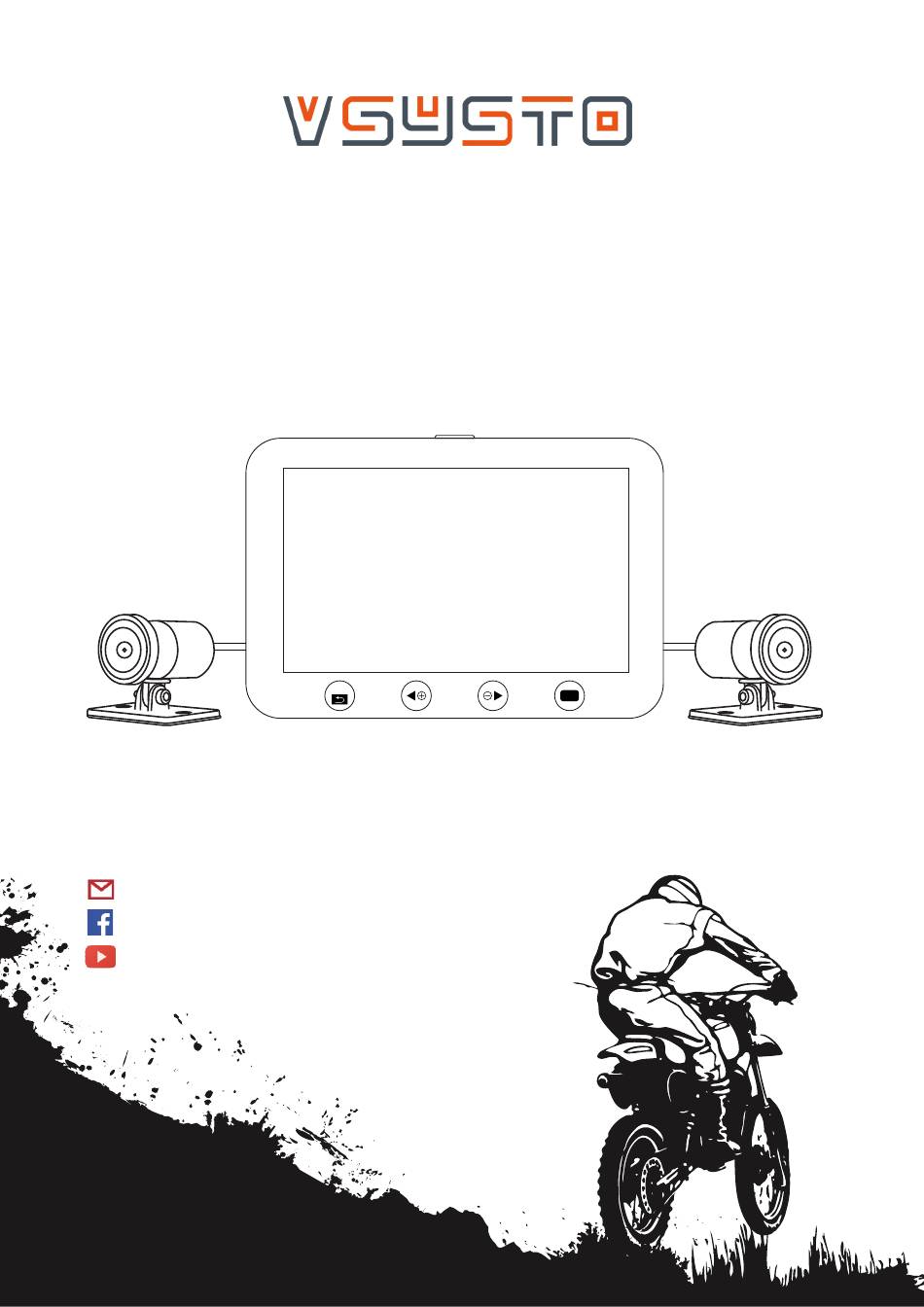

- Page 1 MOTORCYCLE DASH CAM F4.5X USER MANUAL MENU support-us@vsysto.com https://www.facebook.com/szvsys https://www.youtube.com/c/szvsys Shenzhen V-SYS Technology Co.,Ltd. - 1 -...
-
Page 2: Before Using The Product
Before using the product This product records videos while the motorcycle is operating. Use this product only for reference when investigating incidents or road accidents. This product is not guaranteed to record ALL events. The device may not properly record accidents with small impacts that are too minor to activate the impact sensor or accidents with massive impacts that cause the motorcycle’s battery voltage to deviate. -
Page 3: Packing List

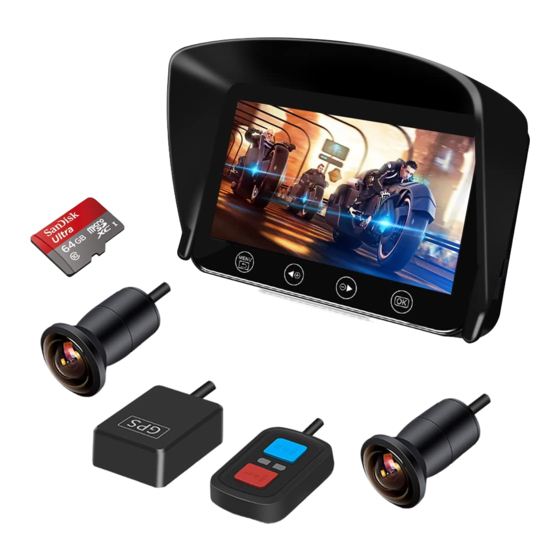

Packing List The items may vary for different buying options. Main Unit Power cord Cam1 & extension cable Wired Controller Cam2 & extension cable Handlebar mount GPS Tracker TPMS sensors USB test cable (Optional) Main unit structure The product design may change without prior notice. Mount hole LCD display Menu/Back... - Page 4 Menu Setting Description * Press button of remote controller to pause recording before setup the system, then long press button to enter menu system. • Short press in video mode to switch Select the setting options and different display mode; press the button to enter Video Mode.
- Page 5 Menu Setting Description Video clip time Set the loop record clip time R-Cam Mirror Set the rear cam mirror function On/Off Display the current number of satellites, Sound record On/Off GPS Status longitude, latitude and other information Set LCD backlight to stay on or turn off after LCD Power Save MIC sensitivity Set the sound level of mic...
-
Page 6: Quick Test
Quick Test 1) Connect cam 1 & cam 2 to the main unit. 2) Find the USB test cable and connecting to the power bank or USB adaptor to do a quick test before installation. 3) Prepare installation if everything looks good. The input voltage never exceeds 5V and The connection should follow the current needs to be 2A or above for... -
Page 7: Gps Module Installation
GPS Module Installation “GPS” icon needs to face to the sky The concave and convex bayonet of the joint shall be matched correctly Double-sided tape 1) You can go to our official website www.szv-sys.com to download the GV player. 2) Fix the GPS module to a proper place on your motorcycle with the double-sided foam tape. - Page 8 Smart Gauge Mode Long press in video mode to enter Smart Gauge Mode, and then short press to switch different display information. long press it again to quit Smart Gauge Mode. Optional Speed Short-Term Memory TRIP: 0 Km km/h 0:09 0 km/h ℃...
