Summary of Contents for VSYSTO M2F
-
Page 1: Table Of Contents
USER MAUAL ......................2 INTRODUCTION ....................2 PACKAGE CONTENTS ....................2 CAMERA OVERV IEW Structure ......................2 Status Icons ...................... 4 Optional Accessories..................4 ....................... 5 SPECIFICATIONS ......................6 Getting Started Installation......................6 Inserting a Memory Card ..................6 Powering On and Off..................6 Switch Display Mode.................. -
Page 2: Introduction

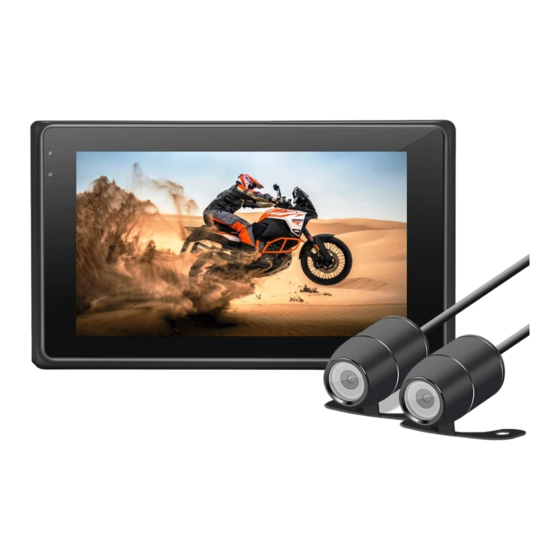

With the VSYSTO dual dash cam system, you can easily record high resolution videos of your ride from 2 viewpoints. Install and forget it, just enjoy your ride! Product Features ●... - Page 3 Icon Meaning Icon Meaning Rear camera Wired remote Rear camera extension cable Emergency button (optional) GPS tracker (optional) LED indicator Split cable Front camera Power adapter Front camera extension cable...
-
Page 4: Status Icons
LED Indicator When turn on the motorcycle, the dash cam automatically power on and enter video mode, both red and blue LED Indicator will be on at the same time. Definition Red Light Blue Light Solid light The device is ON Standby mode Slow blinking light Video mode... -
Page 5: Specifications
Tips ※ It costs a few minutes to receive the GPS signal at first connection. ※ The weather and environment like indoor, high buildings will affect the GPS signal. ※ Please fix the GPS module exterior and don’t put it in a metal case or interior. ※... -
Page 6: Getting Started
Operating temperature 0~60 ° C Battery capacity Super Capacitor + RTC Power supply INPUT: DC 12-24V; OUTPUT: DC 5V 2A Note: Specifications are subject to change without notice. 5 Getting Started 5.1 Installation Please refer to the 'Quick Installation Guide', and also installation video guide can be found on our YouTube channel. -
Page 7: Operation
6 OPERATION 6.1 Video Recording Normal Video Mode It starts video recording automatically when power on, the LED indicator will flash slowly. Stop recording automatically when power off (still keep recording around 3 minutes for smart power cable), to stop recording manually by pressing the ‘Menu/OK’ button. Loop on (by default): Loop recording mode continuously records videos to create footages of assigned length of time (default setting: 3 minutes). -
Page 8: Playback
Menu Setting Tree Refer to the table below for details on menu setting items and available menu setting options. Item Select Description Video resolution 1080P 30fps/720P 30fps/720P 60fps Set resolution Video clip time Off/1/2/3/5min Set loop recording time Sound record On/Off Set the sound mode Beep... -
Page 9: Wi-Fi Connection & Operation
“KEY” means file recorded by pressing controller “GSR” means file recorded by triggering G-sensor “170809” means date 9th August, 2017 “163256” means time 16 o’ clock 32 minutes 56 seconds “F” means front camera video file “MOV” means video file format “KEY”... -
Page 10: Warranty & Support
7.3 Support If you have any questions regarding your product, please do not hesitate to contact us, please contact us by below ways. Please include your order number and product model number. Email: support@vsysto.com Facebook: https://www.facebook.com/szvsys/... -
Page 11: Your Opinion Matters
Twitter: https://twitter.com/vsysto YouTube: https://www.youtube.com/c/szvsys 7.4 Your Opinion Matters Our products are designed to do amazing things. We constantly optimize and strive for excellence to make driving safer, and more fun. Share your product experience and story with us to inspire someone else.
