Packing List

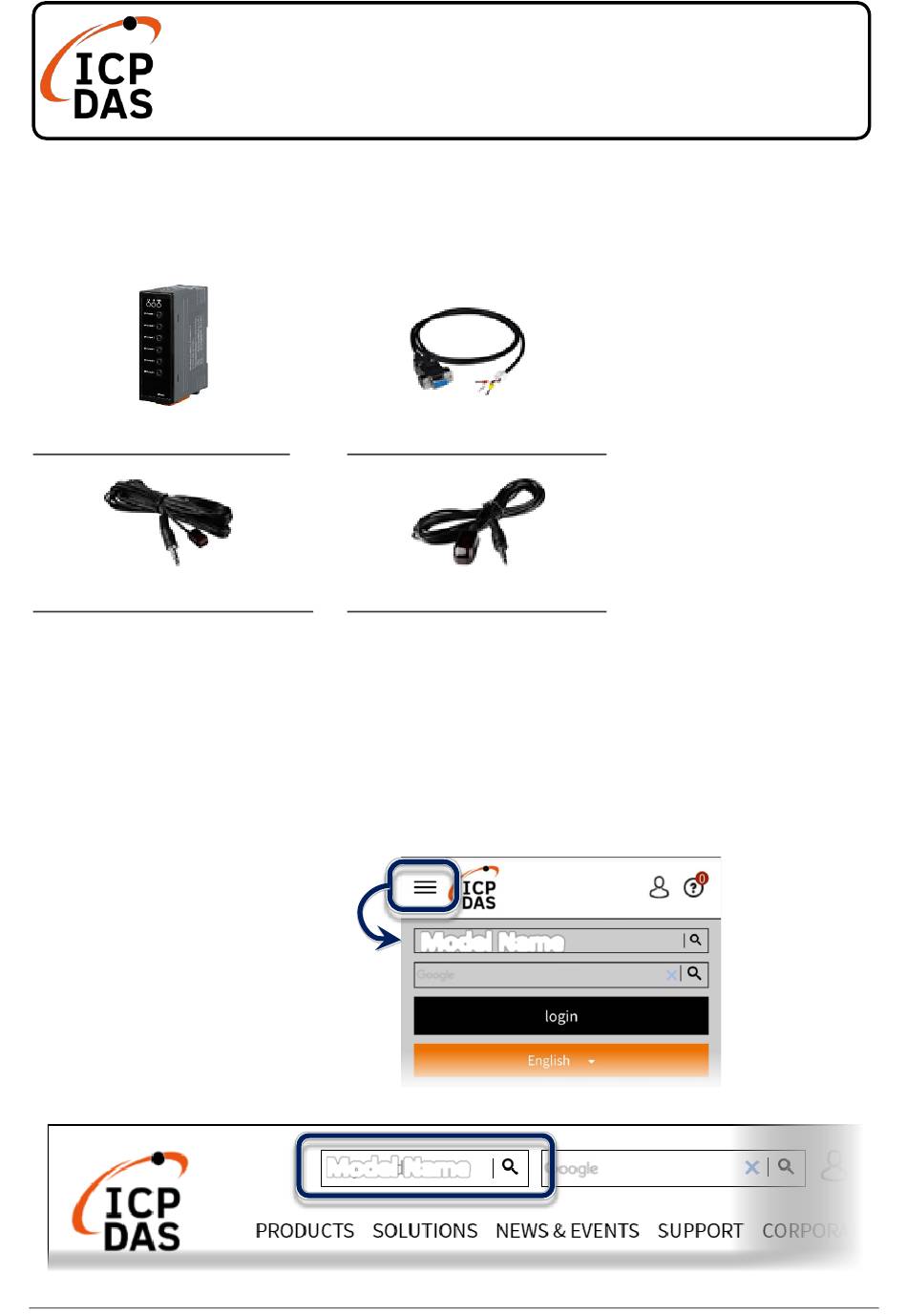

In addition to this guide, the package includes the following items:

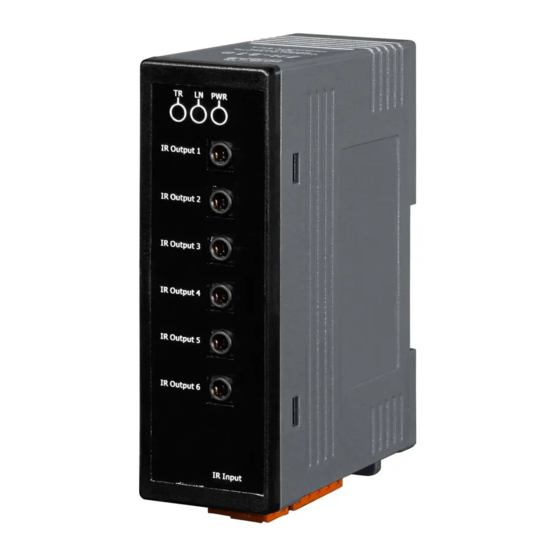

IR-210
CA-IR-SH2251 * 2
(IR-210)
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
IR-210(-5) Quick Start
CA-0910 * 1
CA-IR-SH2251-5 * 2
(IR-210-5)
Resources
How to search for drivers, manuals and
spec information on ICP DAS website.
For Mobile Web
Model Name
Model Name
v1.7, Jun 2020
P1
Advertisement
Related Manuals for ICP DAS USA IR-210
Summary of Contents for ICP DAS USA IR-210
- Page 1 IR-210(-5) Quick Start v1.7, Jun 2020 Packing List In addition to this guide, the package includes the following items: IR-210 CA-0910 * 1 CA-IR-SH2251 * 2 CA-IR-SH2251-5 * 2 (IR-210) (IR-210-5) Resources How to search for drivers, manuals and Technical Support spec information on ICP DAS website.
- Page 2 Push DIP switch to the position of normal operation mode (OP). 2. Serial Wire Connection to PC Use the RS-232 cable (CA-0910) to establish the wire connection between IR-210 and PC as shown in the following figure. The DB9 (9-pin) connector of CA-0910 is for PC COM port.
- Page 3 3. Plug in an IR Emitter Cable Plug the IR emitter cable CA-IR-SH2251(-5) into the 3.5 mm jack of the IR Output 1. 4. Power Wire Connection Connect the power supply cable (+10 ~ +30 VDC) to the power connector.
- Page 4 Baud rate = 115200 bps, Parity = None, Data bits = 8, Stop bits = 1, and Modbus Net ID = 1. Then, click “Connect” button to connect to the IR-210 and open the main window of the utility.
- Page 5 7. Set Device and IR Command Quantity Please click the “Set Device & IR Command Quantity” button to open the setup window. Three steps to bet set: Step 1: Set device quantity. (1) Set the Device Quantity to be 1. (2) Press the “Set”...
- Page 6 (2) Press the “Set” button. (3) Press the Next (right arrow) button. Step 3: Set each IR command name The prefix number (e.g. 1_Play) is the number of an IR command stored in the IR-210. Click OK button to go back to main window.
- Page 7 Besides, the color rectangle (marked a blue dotted frame) means: ➢ Red: Learning data is saved in the item of “Command Name”. ➢ Yellow: Get learning data form IR-210. The data is buffered and lost when selecting other item of “Command Name”.
- Page 8 9. Download IR Commands to the Module After IR learning finishes, click Menu [Download]-> [Download IR Commands to IR-210] to download the IR commands to the IR-210. 10. Test IR Commands Go to the “Test IR Commands in IR-210” section: (1) Select IR Command No.
