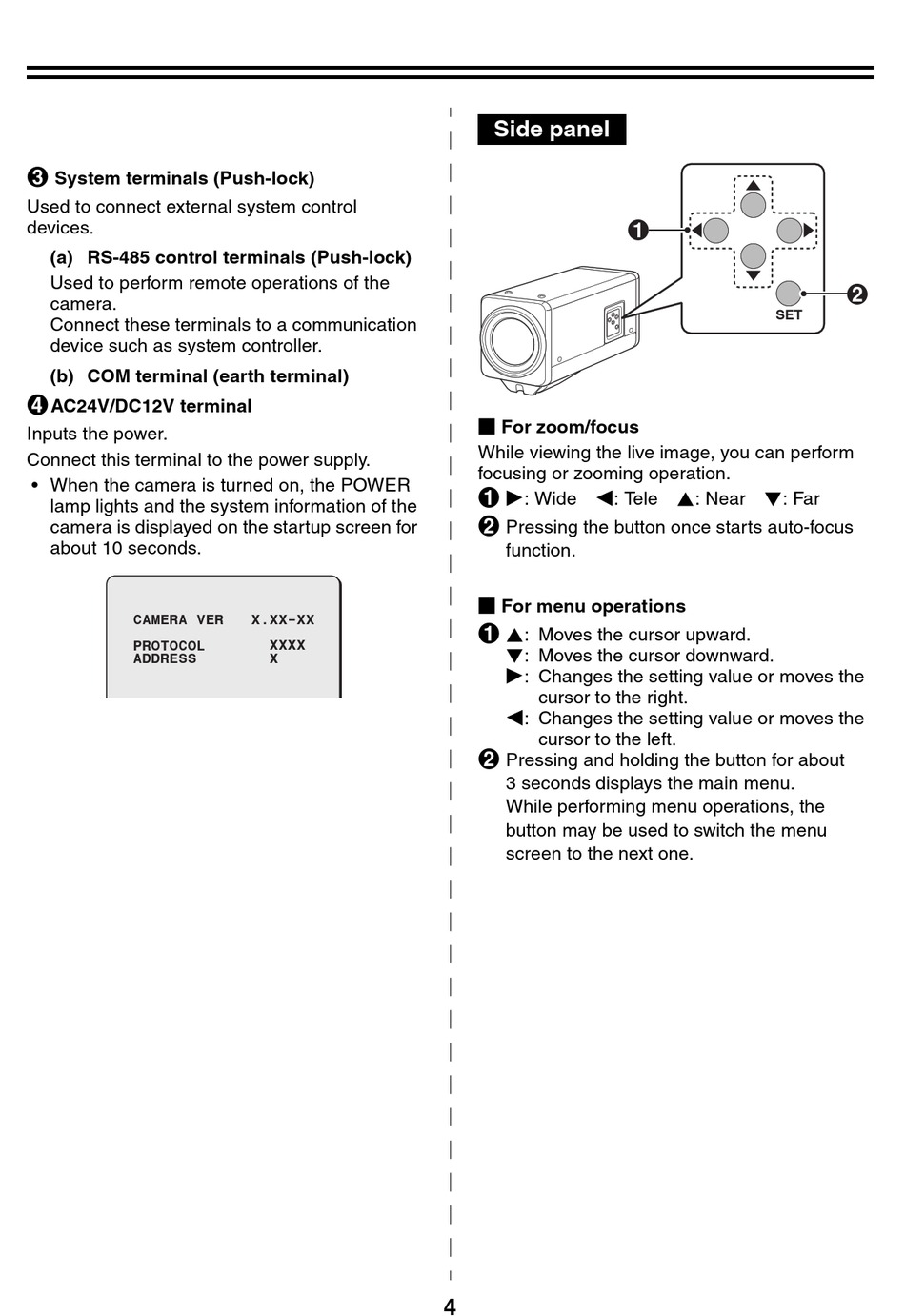

Side Panel - Sanyo VCC-ZM500P Installation Manual

Color ccd camera
Hide thumbs

Advertisement

Table of Contents
3
System terminals (Push-lock)
Used to connect external system control
devices.
(a) RS-485 control terminals (Push-lock)
Used to perform remote operations of the
camera.
Connect these terminals to a communication
device such as system controller.
(b) COM terminal (earth terminal)
4
AC24V/DC12V terminal
Inputs the power.
Connect this terminal to the power supply.
• When the camera is turned on, the POWER
lamp lights and the system information of the
camera is displayed on the startup screen for
about 10 seconds.
CAMERA VER
PROTOCOL
ADDRESS
X.XX-XX
XXXX
X

Side panel

b For zoom/focus
While viewing the live image, you can perform
focusing or zooming operation.
1
c: Wide d: Tele j: Near l: Far
2
Pressing the button once starts auto-focus
function.
b For menu operations
1
j: Moves the cursor upward.
l: Moves the cursor downward.
c: Changes the setting value or moves the
cursor to the right.
d: Changes the setting value or moves the
cursor to the left.
2
Pressing and holding the button for about
3 seconds displays the main menu.
While performing menu operations, the
button may be used to switch the menu
screen to the next one.
4
1
SET
2
