Sanyo PLC-XF1000 Owner's Manual

Sanyo PLC-XF1000 Owner's Manual

12000 ansi xga quadrive
Hide thumbs Also See for PLC-XF1000:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Technical Information

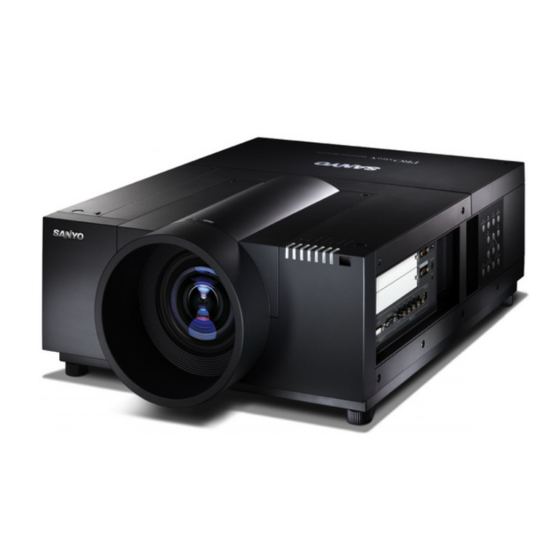

Multimedia Projector
PLC-XF1000
MODEL
Projection lens is optional.
✽
Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PLC-XF1000

Summary of Contents for Sanyo PLC-XF1000

  • Page 1 Multimedia Projector PLC-XF1000 MODEL Projection lens is optional. ✽ Owner’s Manual...

  • Page 2: Features And Design

    This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features, a palette of 1.07 billion colors, and matrix liquid crystal display (LCD) technology. Functionally Rich ◆ This projector has many useful functions such as lens shifting, ceiling and rear projection, perpendicular omnidirectional projection, variety of lens options, etc.

  • Page 3: Table Of Contents

    Features and Design . . . . . . . . . . . . . . . . 2 Table of Contents . . . . . . . . . . . . . . . . . . 3 To The Owner .

  • Page 4: To The Owner

    Before installing and operating the projector, read this manual thoroughly. The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.

  • Page 5: Safety Instructions

    All the safety and operating instructions should be read before the product is operated. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 6: Air Circulation

    Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

  • Page 7: Installing The Projector In Proper Directions

    Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane.

  • Page 8: Moving The Projector

    Safety Instructions Moving the Projector Retract the adjustable feet to prevent damage to lens and cabinet. For safety, holding the projector on both sides by 2 or more people is recommended to move the projector because the projector is heavy. When moving the projector by one person from necessity, hold the handle carefully.

  • Page 9: Compliance

    Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 10: Part Names And Functions

    Front e r t Back ✽ Part Names and Functions q Lens Mount Cover w Projection Lens (Option) e Indicators r Infrared Remote Receiver (Front) t Adjustable Feet Terminals and Connectors u Handle i Side Control o Lamp Cover !0 Infrared Remote Receiver (Rear) !1 Exhaust Vent CAUTION Hot air is exhausted from the exhaust...

  • Page 11: Terminals And Connectors

    Terminals and Connectors q SERIAL PORT IN TERMINAL If you control the projector by computer, you must connect a cable (not supplied) from your computer to this terminal. w SERIAL PORT OUT TERMINAL This terminal outputs signal from SERIAL PORT IN. More than two projectors can be controlled with one computer by connecting SERIAL PORT IN of another projector to this terminal.

  • Page 12: Side Control And Indicators

    Part Names and Functions Side Control and Indicators INDICATORS Side Control ON/STAND-By button Turn the projector on or off (pp.23,24). ZOOM button Zoom in and out the images (p.27). MENU button Open or close the On-Screen MENU (pp.25, 26). POINT buttons - Select an item or adjust the value in the On- Screen MENU (p.25).

  • Page 13: Indicators

    Indicators Part Names and Functions q LAMP Indicator This indicator is dim when the projector is turned on. And bright when the projector is in stand-by mode (pp.72-74). w READy indicator This indicator lights green when the projector is ready to be turned on. And it flashes green in Power Management mode (pp.52, 72-74).

  • Page 14: Remote Control

    Part Names and Functions Remote Control Note: ✔ To ensure safe operation, obser ve the following precautions: •Do not bend, drop, or expose the remote control to moisture or heat. •For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any other chemical materials.

  • Page 15: Remote Control Battery Installation

    Remote Control Battery Installation Open the battery compartment lid. Pull up the lid and remove it. To ensure safe operation, please observe the following precautions : l Use two (2) AA or LR6 type alkaline batteries. l Always replace batteries in sets. l Do not use a new battery with a used battery.

  • Page 16: Remote Control Code

    Part Names and Functions Remote Control Code The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control.

  • Page 17: Installation

    Lens Installation Before setting up the projector, install Projection Lens on the projector. Before installation, check where the projector is used and prepare a suitable lens. For the specifications of Projection Lens, contact sales dealer where you purchased the projector. - Do not use the optional lens below for this projector .

  • Page 18: Positioning Projector

    Installation Positioning Projector This projector is designed to project on a flat projection surface. Note: ✔ • Brightness in room has a great influence on picture quality. It is recommended to limit ambient lighting in order to provide the best image. Lens Shift Adjustment Projection lens can be moved from side to side and up and down with the motor-driven lens shift function.

  • Page 19: Terminals Of Projector

    Terminals of Projector The projector has two replaceable Interface board slots. The projector's functions can be extended by installing the optional interface boards into the terminal slots. 2 vacant slots (Input 3 and 4) are provided in your purchasing the projector. For the Optional Interface Boards, contact sales dealer where you purchased the projector.

  • Page 20: Connecting To Computer

    Installation Connecting to Computer Cables used for connection • VGA Cable (D-sub 15 pin) * • DVI Cable • BNC Cable (BNC x 5) ( *One cable is supplied; Other cables are not supplied with this projector.) Laptop type Monitor Output DVI Cable DIGITAL Terminals of...

  • Page 21: Connecting To Video Equipment

    Connecting to Video Equipment Cables used for connection • Video Cable (BNC x 3, BNC x 1) • SCART-VGA Cable • DVI Cable • S-Video Cable ( Cables are not supplied with the projector.) Video Source (example) Video Cassette Recorder Digital Output RGB SCART (HDCP compatible)

  • Page 22: Connecting The Ac Power Cord

    Installation Connecting the AC Power Cord This projector uses nominal input voltages of 100-120 or 200–240 V AC. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service center.

  • Page 23: Basic Operation

    Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet and turn on the MAIN ON/OFF Switch. The LAMP indicator lights red and the READY indicator lights green.

  • Page 24: Turning Off The Projector

    Basic Operation Turning Off the Projector Press the ON/STAND-BY button on the side control or on the remote control, and “Power off?” appears on the screen. Press the ON/STAND-BY button on the side control or on the remote control again to turn off the projector.

  • Page 25: How To Operate The On-Screen Menu

    How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Press the MENU button on the side control or the remote control to display the On-Screen Menu.

  • Page 26: Menu Bar

    Basic Operation Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 69-71. For Computer Source Guide window Show the selected Menu of the On-Screen Menu. Input Menu Used to select an input source Computer or Video (pp. 31- 33).

  • Page 27: Operating With Projector Control

    Operating with Projector Control Zoom Adjustment Display “Zoom” on the screen. Press the ZOOM button and then press the Point buttons to zoom in and out the image. Focus Adjustment Display “Focus” on the screen. Press the FOCUS button and then press the Point buttons to adjust the focus of the image.

  • Page 28: Information Menu

    Basic Operation Information Information Menu Information display can be used to confirm the current operating condition of the projector and the signal being projected through the projector. Information Menu Press the INFORMATION button to display the information window on the screen. To hide the information window, press the INFORMATION button again or Point buttons.

  • Page 29: Operating With Remote Control

    Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. AUTO PC button Press the AUTO PC button on the remote control to operate the Auto PC Adj.

  • Page 30: Keystone Button

    Basic Operation SHUTTER button See pages 27 and 55 for details. FILTER button Press and hold the FILTER button for more than five seconds to replace the filter mechanically. See page 51 for details. ✔ Note: • The filter cannot be rewound. •...

  • Page 31: Input Selection

    Input Side Control Side Control Operation Press the INPUT button on the side control. It switches to INPUT 1, INPUT 2, INPUT 3 and INPUT 4 as you press the INPUT button. Before using the INPUT button on the side control, you must select a correct input source by On-Screen Menu and the latest input source will be displayed.

  • Page 32: Computer Input Source Selection

    Input Selection Computer Input Source Selection Menu Operation when Selecting the INPUT 1 with DVI/D-sub 15 terminals Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the INPUT Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired input and then press the SELECT button.

  • Page 33: Video Input Source Selection

    Video Input Source Selection Menu Operation when Selecting the INPUT 1 with DVI/D-sub 15 terminals When connecting to video equipment, select the type of Video source in the Source Select Menu. RGB (Scart) When scart video equipment is connected to the INPUT 1 (ANALOG) terminal, select RGB (Scart).

  • Page 34: Computer Input

    Computer System Selection Automatic Multi-Scan System This projector automatically tunes to various types of computers (refer to “Compatible Computer Specifications” on pages 75-76). If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Some computers need to be set manually.) One of the following messages may appear when: When the projector cannot recognize the...

  • Page 35: Auto Pc Adjustment

    Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Direct Operation The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control or the AUTO PC ADJ.

  • Page 36: Manual Pc Adjustment

    Computer Input Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those manually adjusted parameters. It allows you to recall the setting for a specific computer.
  • Page 37 Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All adjustments will return to their previous figures. Mode free To clear the adjusted data, select Mode free and then press the SELECT button.

  • Page 38: Image Level Selection

    Computer Input Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control to select the desired image level. Standard Real Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 39: Screen Size Adjustment

    Screen Size Adjustment Select the desired screen size that conforms to the input signal source. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.
  • Page 40 Computer Input Keystone This function is used to store or reset the keystone correction when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option. Store.

  • Page 41: Video Input

    Video System Selection Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the AV System Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired system and then press the SELECT button.

  • Page 42: Image Level Selection

    Video Input Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control to select the desired image level. Standard Cinema Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 43: Screen Size Adjustment

    Screen Size Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.
  • Page 44 Video Input Keystone This function is used to store or reset the keystone correction when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option. Store.

  • Page 45: Picture Image

    Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button to display the adjustment dialog box.
  • Page 46 Picture Image COLOR SELECTION MODE (continued) COLOR M . Return to the COLOR MANAGEMENT POINTER. (If you press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.) MENU Return to the IMAGE ADJUST Menu.
  • Page 47 white balance (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone; press the Point 8 button to deepen red/green/blue tone (from 0 to 63). Offset (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone of the black level of an image; press the Point 8 button to deepen red/ green/blue tone of the black level of an image (from 0 to 63).

  • Page 48: Setting

    Setting This projector has a Setting menu that allows you to set up other various functions. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button.
  • Page 49 Logo This function allows you to customize the screen logo with Logo select, Capture, and Logo PIN code lock functions. ✔ Note: •When “On” is selected in the Logo PIN code lock function, Logo select and Capture functions cannot be selected. Logo select This function decides on the starting-up display from among the following options.
  • Page 50 Setting Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ..The screen logo can be changed freely from the Logo Menu. On ..The screen logo cannot be changed without a Logo PIN code.
  • Page 51 Lamp mode This Projector is equipped with 2 Projection Lamps and the number of using lamps can be switched to 2 lamps or 1 lamp. Using 1 lamp maintains the life of Projection Lamps. To change over Lamp Mode Set "2 lamps mode" or "1 lamp mode" by pressing the Point buttons.
  • Page 52 Setting Remote control The eight different remote control codes (Code 1–Code 8) are assigned to the projector; the factory-set, initial code (Code 1) and the other seven codes (Code 2 to Code 8). The same code should be set on both the projector and the remote control.
  • Page 53 On start When this function is set to “On, ” the projector will be automatically turned on just by connecting the AC power cord to the wall outlet. ✔ Note: • Make sure that the MAIN ON / OFF switch is ON, otherwise the On start function does not work.
  • Page 54 Setting Enter a PIN code Use the Point buttons on the side control or on the remote control to enter a number. Press the Point button to fix the number and move the red frame pointer to the next box. The number changes to “✳. ” Repeat this step to complete entering a four-digit number.
  • Page 55 Shutter Shutter function is available to block out light to the screen, so that the screen can be used for the other presenters. Protection Prohibits the shutter operation from the remote control and the projector's side control. Remote control Selecting "On" prohibits the shutter operation from the remote control.
  • Page 56 Setting Filter counter This function is used to set a time for the filter replacement. Use the Point ed buttons to move the red frame pointer to Filter counter and then press the SELECT button. A dialog box appears showing the Used time option and the Scrolls remaining option. Used Time .

  • Page 57: Maintenance And Care

    Maintenance and Care Filter Instructions Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. This projector has an electrically operated filter which helps you to replace the filter easily.

  • Page 58: Replacing The Filter Cartridge

    Maintenance and Care Replacing the Filter Cartridge Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet. First, clean up the dust on the projector and around the air vents. Slide and open the Filter cover.

  • Page 59: Resetting The Filter Counter

    Resetting the Filter Counter Be sure to reset the Filter counter after replacing the filter cartridge. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon. Use the Point ed buttons to move the red frame pointer to Filter counter and then press the SELECT button.

  • Page 60: Lamp Management

    Maintenance and Care Lamp Management This Projector is equipped with 2 Projection Lamps to ensure brighter image and those lamps are controlled by the Lamp Management Function. The Lamp Management Function detects the status of lamps and shows the status on screen or on the LAMP 1/2 REPLACE indicators. This function also automatically controls the Lamp Mode when any of lamps is out for the end of life or malfunctions.

  • Page 61: Lamp Replacement

    Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP 1/2 REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP 1/2 REPLACE indicators should light is depending on the lamp mode. Indicators Lamp replacement icon LAMP 1 / 2 REPLACE indicators...

  • Page 62: Resetting The Lamp Counter

    Maintenance and Care Resetting the Lamp Counter Be sure to reset the Lamp counter after the lamp is replaced. When the Lamp counter is reset, the LAMP 1/2 REPLACE indicator stops lighting and the Lamp replacement icon disappears. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon Use the Point ed buttons to move the red frame pointer...

  • Page 63: Lamp Handling Precautions

    LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard. Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp.

  • Page 64: Cleaning The Projection Lens

    Maintenance and Care Cleaning the Projection Lens Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 65: Warning Indicators

    Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING TEMP . indicator and the LAMP indicator to take proper maintenance. The projector is shut down and the WARNING TEMP. indicator is blinking red.

  • Page 66: Appendix

    Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. 1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20–21. 2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected.
  • Page 67 – The end of lamp life is approaching. Replace the lamp with a new one promptly. (See page 55.) appears on the screen – The filter is out of scroll. Replace the filter cartridge with a new one promptly. (See pages 57-58.) appears on the screen –Adjust the focus of the projector.
  • Page 68 Appendix The power is turned off automatically. You cannot operate with the side control. The Remote Control does not work. Indicators blinks or lights. appears on the screen Unable to unlock the Logo PIN code lock, Security key lock or Security PIN code lock.

  • Page 69: Menu Tree

    Menu Tree Computer Input/Video Input Input Input 1 Input 2 Input 3 (For Optional Interface Boards) (For Optional Interface Boards) Input 4 Information Information Input H-sync freq. V-sync freq. Screen Language Lamp mode Lamp control Power management Shutter management Security Remote control ✔...
  • Page 70 Appendix Computer Input System ✽ System displayed in the System Menu varies depending on the input signal. PC Adjust Auto PC adj. Fine sync. Total dots Position H Position V Current mode Clamp Display area - H Display area - V Reset Mode free Store...
  • Page 71 Computer Input/Video Input Setting Language Menu Display Background Logo Lamp mode Lamp control Filter control Fan control Remote Control RC sensor Power management On start Security Projector ID 1–999 Shutter Protection Management Quit Lamp counter Lamp 1/2 [ ] Hour(s) Filter counter Test pattern Factory default...

  • Page 72: Indicators And Projector Condition

    Appendix Indicators and Projector Condition Check the indicators for the projector condition. The projector is operating normally . Indicators WARNING LAMP READY TEMP . green Fig .1 Filter replacement icon and “Please wait... ” • • • on • • • dim •...
  • Page 73 The projector is detecting abnormal condition . Indicators WARNING WARNING LAMP READY TEMP . FILTER green orange ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ wARNING FILTER When the filter detects clogging, reaches a time set in the timer setting or runs out of the filter scroll, the WARNING FILTER indicator lights orange.
  • Page 74 Appendix The projector is detecting abnormal condition . Indicators WARNING LAMP READY TEMP . green Fig .2 Filter replacement icon Fig .3 Fig .4 Filter cartridge replacement icon ✽ ✽ ✽ WARNING LAMP 1/2 SHUTTER FILTER REP . blue orange orange If the Filter counter reached a time set in the timer ✽...

  • Page 75: Compatible Computer Specifications

    Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. PC Adjustment can be limited when these modes are selected. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy VGA 1 640x480...
  • Page 76 Appendix When an input signal is digital from the DVI terminal, refer to the chart below. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy D-VGA 640x480 D-480p 720x480 D-575p 720x575 D-SVGA 800x600 D-XGA 1024x768 D-WXGA 1 1366x768 D-WXGA 2 1360x768 D-WXGA 3 1376x768 D-WXGA 4 1360x768...

  • Page 77: Technical Specifications

    Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment Panel Resolution LCD Panel System Panel Resolution Number of Pixels Signal Compatibility Color System SD/HDTV Signal Scanning Frequency Optical Information Projection Lamp Interface Input 1 Input 2 Other Jacks Power...

  • Page 78: Optional Parts

    Appendix l The specifications are subject to change without notice. l LCD panels are manufactured to the highest possible standards. Even though 99.99% of the pixels are effective, a tiny fraction of the pixels (0.01% or less) may be ineffective by the characteristics of the LCD panels. l Each projector has its own characteristics.

  • Page 79: Configurations Of Terminals

    Configurations of Terminals ANALOG (Mini D-sub 15 pin) DIGITAL DVI-D (DVI 24 PIN) USB CONNECTOR (Series B) CONTROL PORT CONNECTOR (D-sub 9 pin) +5V Power Red Input Green Input Ground (Vert. sync.) Blue Input Ground DDC Data No Connect Ground (Horiz.sync.) Horiz.

  • Page 80: Pin Code Number Memo

    Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service center. PIN Code Lock No. Logo PIN Code Lock No.

  • Page 81: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M8 Depth: 0.393 (10.0) 20.87(530) 8.46(215) 8.66(220) 1.18(30) 200.0 234.0 20.65(524.5) 1.14(29) 9.25(235) 9.25(235)

  • Page 82: Serial Control Interface

    Appendix Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port. Operation Connect a RS-232C serial cross cable to SERIAL PORT IN on the projector and serial port on the PC (See p.11).

  • Page 83: Status Read Command

    Status Read Command Format The command is sent from PC to the projector with the format below; 'CR' [Command] 'CR' Command: one character (refer to the command table below.) The projector decodes the command and returns the 'Character string' with the format below; Command Function Status Read...
  • Page 84 KE8A SANyO Electric Co ., Ltd .
