LFLED5MBR INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting fixtures. Our goal is to design the best quality products to get the job done right. We'd like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining fixture. No user serviceable parts inside.

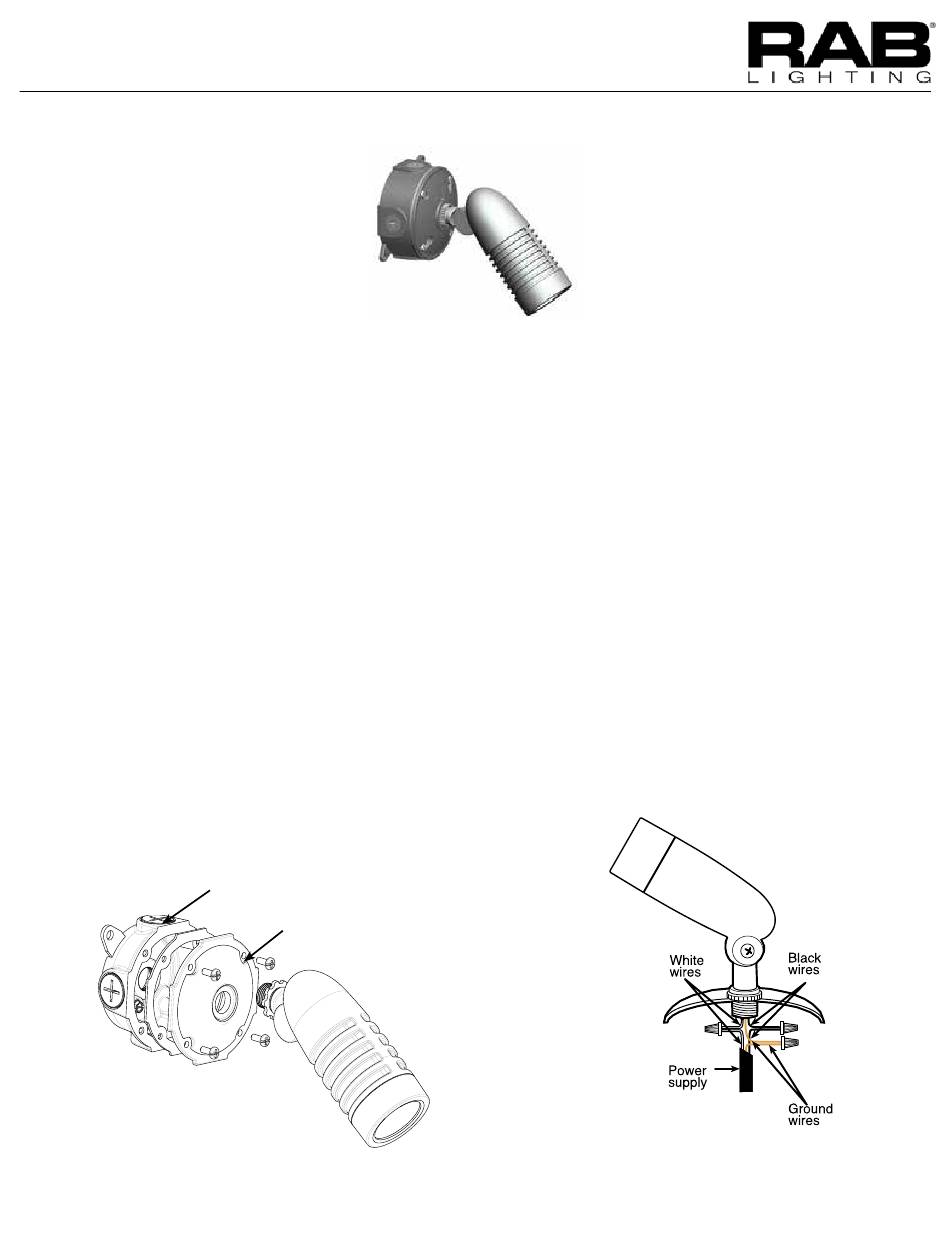

FIXTURE MOUNTING
THE FIXTURE IS MARINE LISTED, OUTSIDE TYPE (SALTWATER).
Mount to the supplied weatherproof junction box and cover
plate as shown. To ensure weatherproof seal, apply weather
proof silicone sealant around the edge of the wall coverplate
or surface box. This is especially important with an uneven
wall surface
1. Seal arm thread using teflon tape or silicone sealant.
2. Thread fixture into Cover Plate.
3. Connect wires as shown in the wiring diagram.
4. Attach cover to Junction Box.
5. Aim floodlight in the direction desired and tighten
locknut and Arm Screw.
Note: These instructions do not cover all details or variations in
equipment nor do they provide for every possible situation during
installation, operation or maintenance.
Junction Box
Cover Plate
WIRING
Universal voltage driver permits operation at 120V thru
240V, 50 or 60 Hz.
1. Connect the GROUND wire from fixture to supply
ground.
2. Connect the black fixture lead to the (+) LINE
supply lead.
3. Connect the white fixture lead to the (-) COMMON
supply lead.
