  • Page 1 EG-SERIES USER MANUAL • MANUAL DEL USUARIO • MANUEL DE L'UTILISATEUR Model • Modelo • Modèle EG40/EG80/EG145/EG320/ EG340/EG500...
  • Page 2: Warnings And Precautions

    Installation may require more than one person. This manual will familiarize you with the features and operation standards of Carmanah's EG-series lights. Until the system is ready for startup, Failure to comply with the use, storage, maintenance,...
  • Page 3: Table Of Contents

    Installing the current-setting resistor ...... 7 Programming using the EG-series Programmer ..7 Testing the system ...........8 EMS Indicator Lights ..........9 Maintenance & Product Care......... 10 Fuse Replacement ..........10 Battery Replacement ...........10 Troubleshooting ............. 11 Specifications ............13 Warranty ..............14 © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 4: Introduction

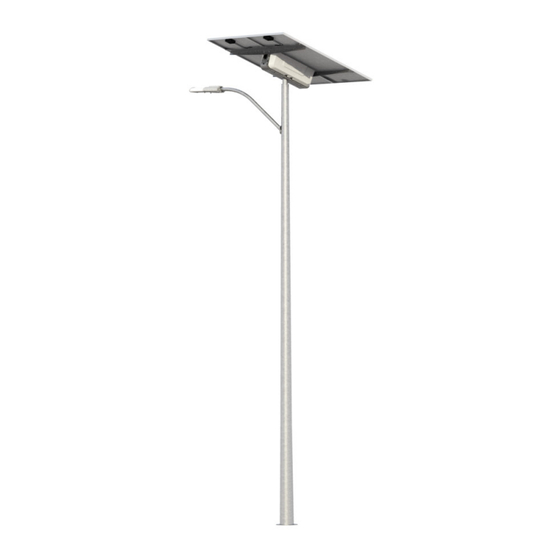

    EG-series solar LED lighting products are ideal for street, parking lot and general site lighting. Features and Functionality The EG-series product family includes the EG40, EG80, EG145 and larger EG320, EG340 and EG500 models. The following components make up these products: •...
  • Page 5: Installation

    The part numbers are: • EG320 Install kit - Carmanah part # 65937 • EG340 Install kit - Carmanah part # 65938 • EG500 Install kit - Carmanah part # 65938...
  • Page 6: Eg-Series Programmer

    The EG-series uses two-way NOTE communication between the programmer and EMS. Therefore each EG-series EMS must be programmed one at a time. Problems arise when more than one EMS is in range during programming. © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 7: Setting Brightness And Programming

    EG320/340/500: pulling the resistor holder out through the access hole under the EMS, removing the holder cap, and inserting the resistor. EG40/80/145: tilting the solar panel forward, removing the holding cap, and inserting the resistor. The current-setting resistor can be inserted into the holder in any orientation.
  • Page 8: Testing The System

    Load low/high voltage discon- nect (Load LVD/ HVD) Flashing (red) Load over-current Load OK On (red) Dimming due to battery low/high voltage discon- nect (Battery LVD/HVD) Time-controlled dimming All 3 lights Pulsing (all lights) Programming © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 9: Maintenance & Product Care

    EG-SERIES USER MANUAL EMS INdIcAtoR LIGhtS Maintenance & Product Carmanah symbol, and pull out the yellow rubber Care fuseholder. 4. Pull the fuseholder apart and check the fuse. The EG-series solar engines are designed to operate reliably for years with virtually no need for mainte- 5.
  • Page 10: Troubleshooting

    Solar panel wires not connected properly (check Solar Green light on (night mode)... panel wires & connectors) … during the night Short between battery & Solar panel wiring (check all Green light flashing (night mode)... wiring) © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 11 EMS, aim carefully at EMS, try again later in the day) Can’t program with programmer… …at night Programmer batteries dead (replace AA batteries) Programmer not aimed at EMS IR transmitter/receiver (aim carefully) Blown EG-series battery fuse (check wiring, replace battery fuse) © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 12: Specifications

    3 second gust as per AASHTO 2001 *** Photometric performance depends on the solar environment of location and specified operating profile. Contact a Carmanah representative for exact lumen output and specifications for your application. Note: specifications subject to change without notice...
  • Page 13 3 second gust as per AASHTO 2001 *** Photometric performance depends on the solar environment of location and specified operating profile. Contact a Carmanah representative for exact lumen output and specifications for your application. © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 14: Warranty

    EG-SERIES USER MANUAL WARRANty Warranty This product is covered by the Carmanah warranty. Visit www.carmanah.com for additional information. If contacting Carmanah’s customer service depart- ment, please have the serial number of your system available (located on EMS) or sales order number, a brief description of the problem, as well as all details of the installation.
  • Page 15 EG-SERIES USER MANUAL NotES © 2012, Carmanah Technologies Corporation. 63966_EG_Series_UserManual_RevB...
  • Page 16 Advanced Lighting Technologies Asia Pte Ltd Block 4008, Ang Mo Kio Avenue 10, #04-06,Techplace 1 Phone: 65 6844 2338 www.adlt.com.sg Email: customerservice@carmanah.com Toll Free: 1.877.722.8877 (US & Canada) Worldwide: 1.250.380.0052 © 2012 Carmanah Technologies Fax: 1.250.380.0062 Corporation Web: carmanah.com...
